Installation Procedure

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5525585Courtesy of GENERAL MOTORS COMPANY

    Install the steering angle sensor module (1).

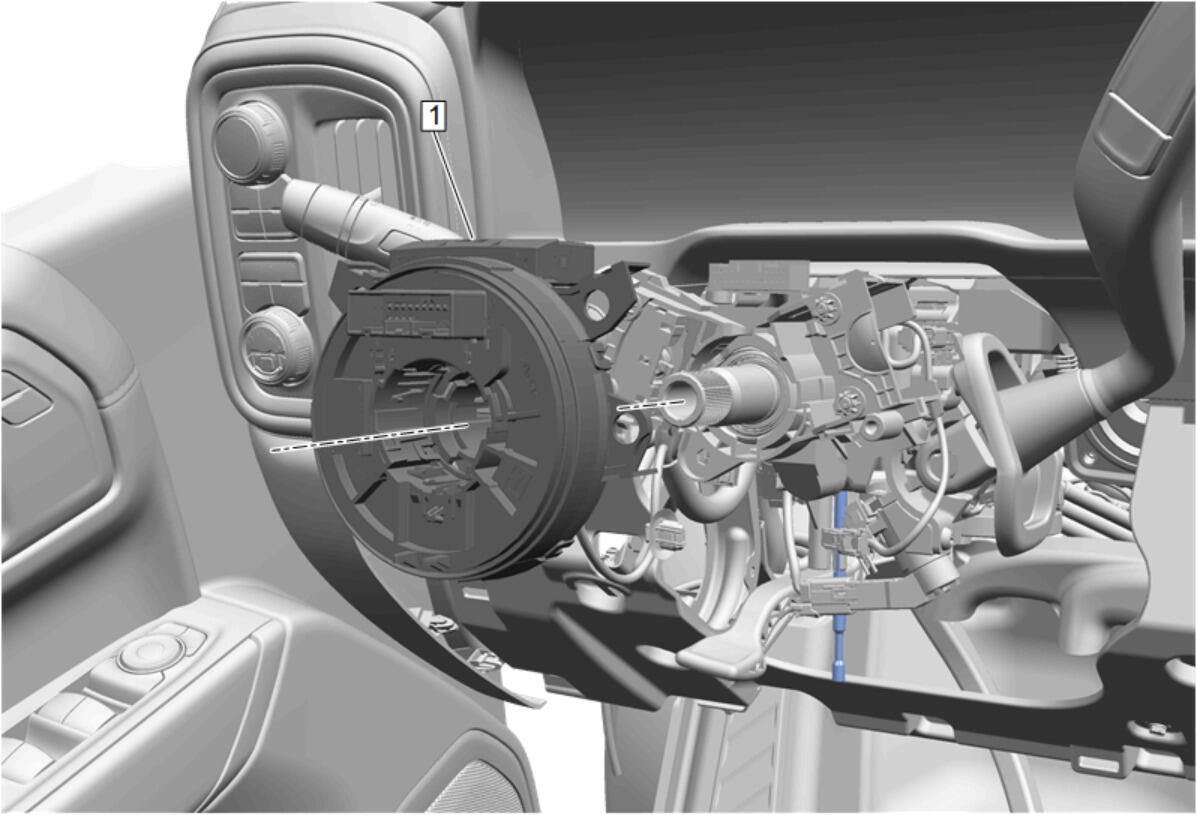

  2. GM4997646Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Airbag Coil(1) - Install - Steering Wheel Airbag Coil Replacement

  3. Perform the steering wheel angle sensor centering procedure. Steering Wheel Angle Sensor Centering
