Installation Procedure

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

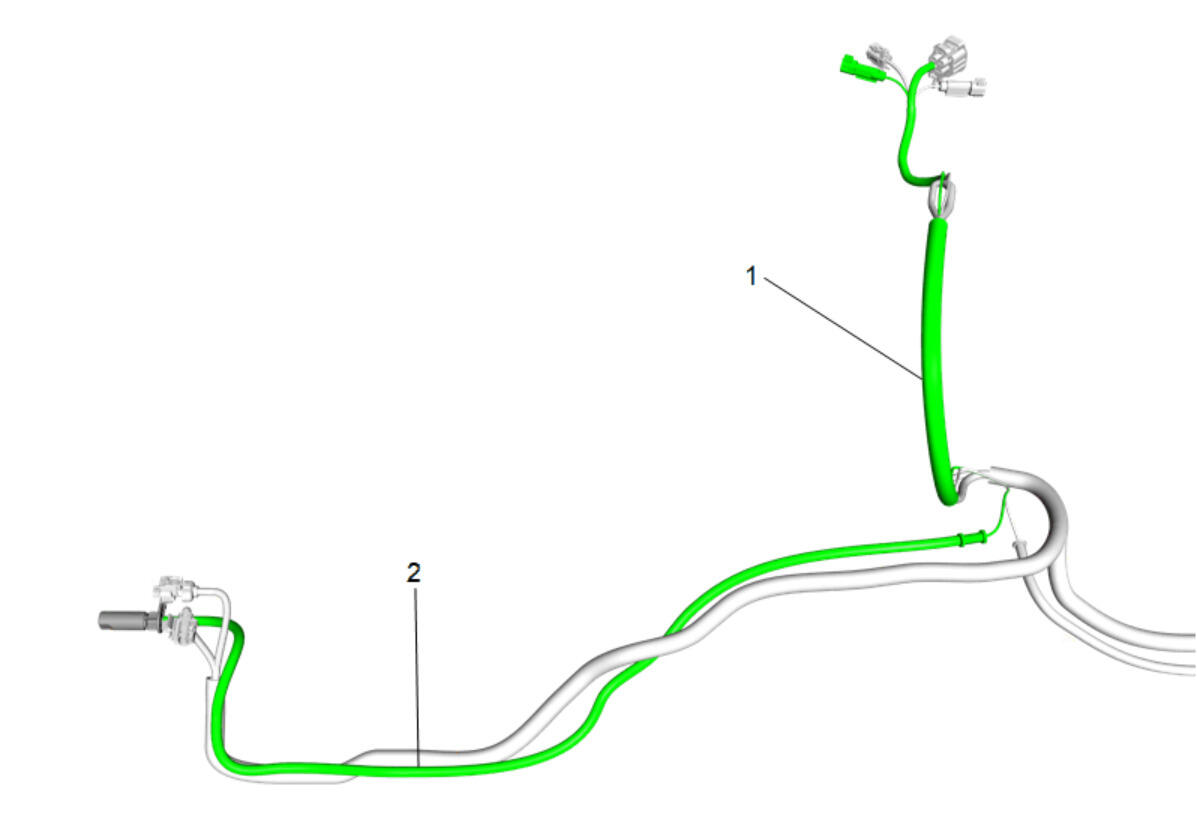

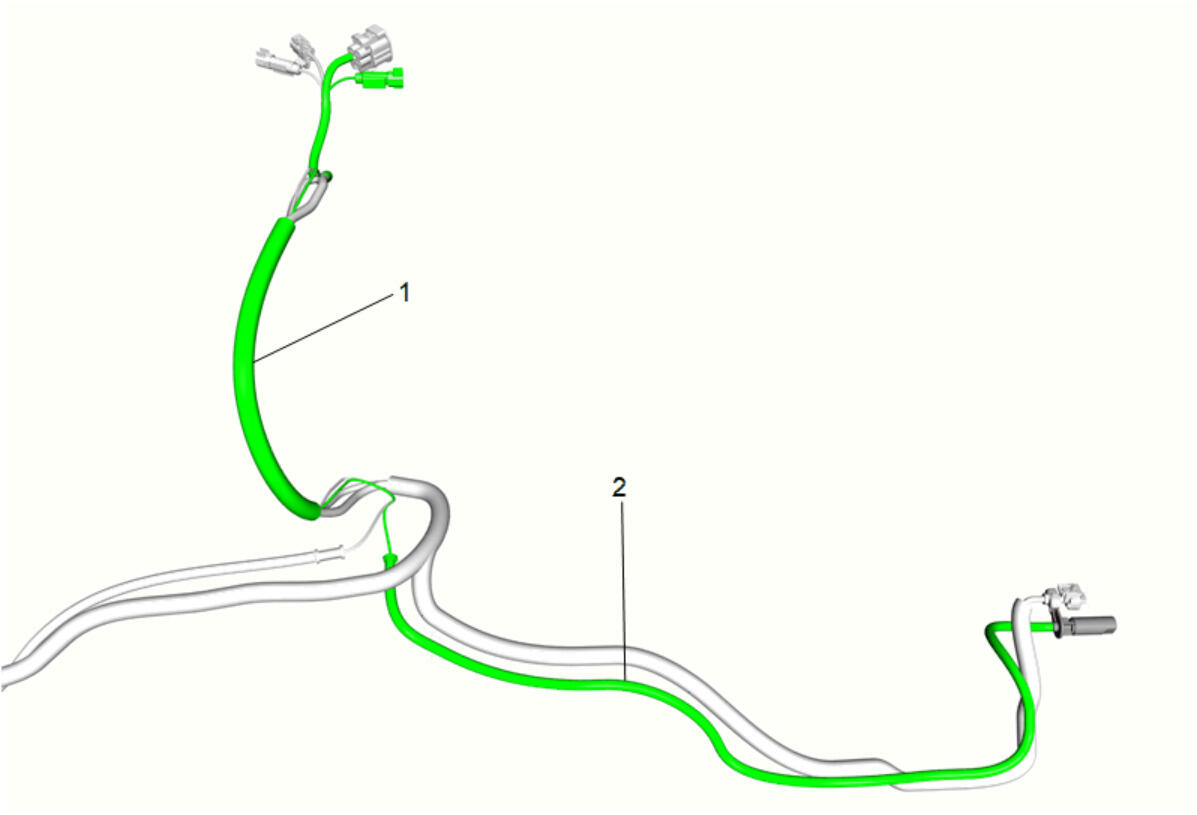

Install the right side wheel speed sensor (2) to the chassis rear wiring harness (1).
Courtesy of GENERAL MOTORS COMPANY

Install the left side wheel speed sensor (2) to the chassis rear wiring harness (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

NOTE:
Note the markings and ensure the rear wheel speed sensors are installed in the same location as disassembly.

Using a suitable tool, hold the jounce block bolt (1) stationary and install and tighten the jounce block nut (2) to 9 N.m (80 lb in).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Note the markings and ensure the rear wheel speed sensors are installed in the same location as disassembly.

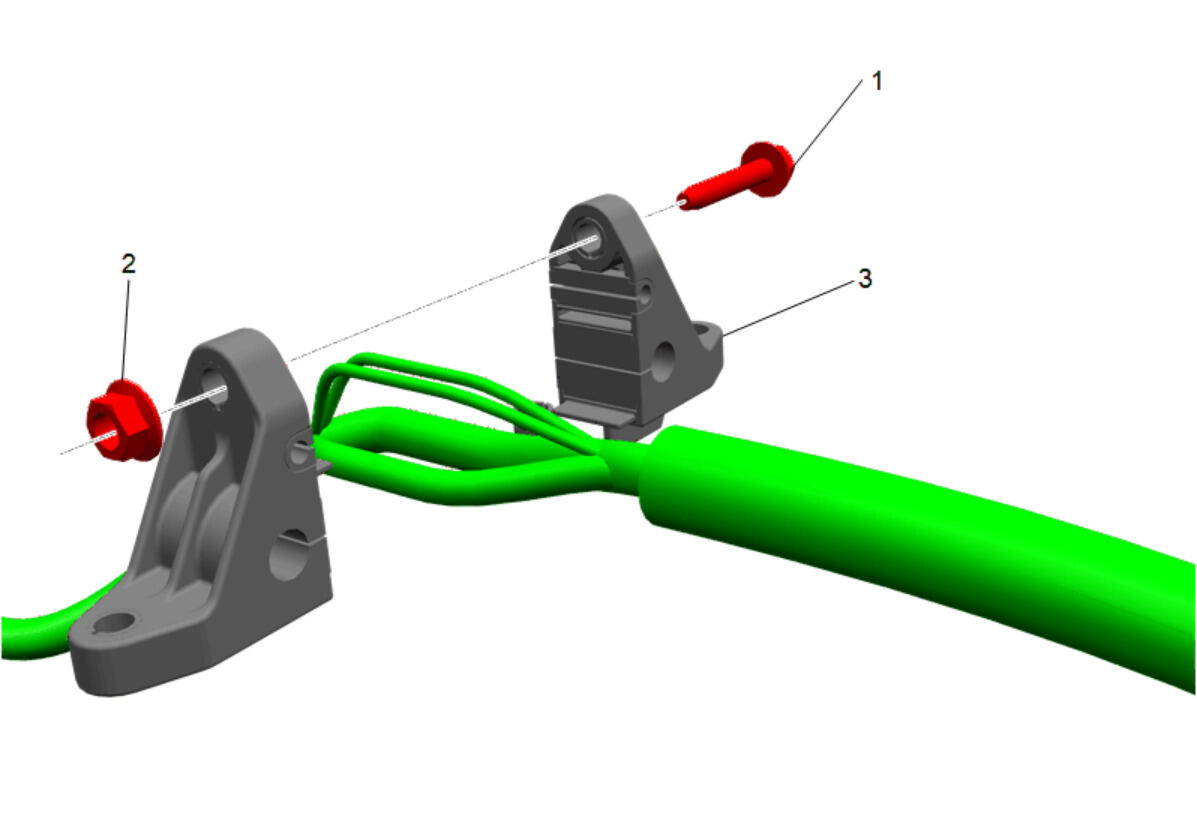

Using a suitable tool, hold the upper jounce block bolt (1) stationary and install and tighten the upper jounce block nut (2) to 9 N.m (80 lb in).
Courtesy of GENERAL MOTORS COMPANY

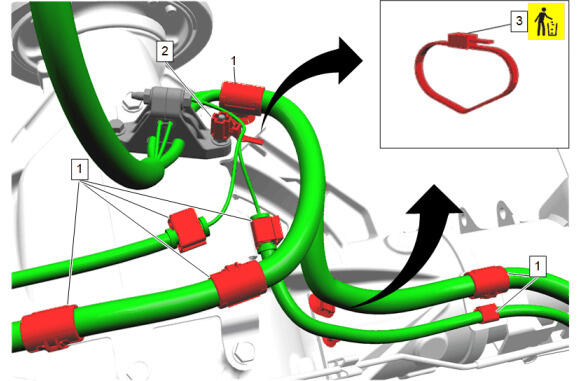

Fastener (2) - Secure
Upper Jounce Block Bolt (1) @ Chassis Rear Wiring Harness Bracket - Install and tighten [ 2x ] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

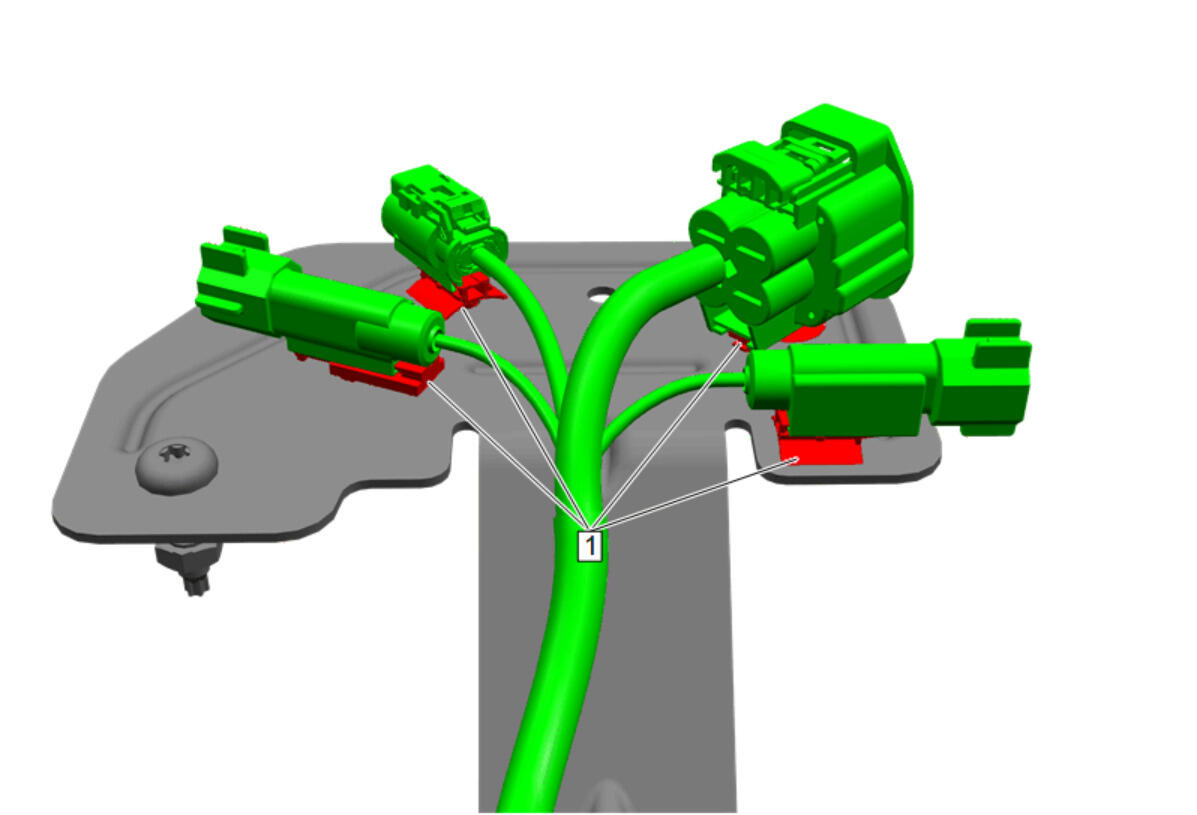

Install the 4 wiring connectors (1) to the chassis rear wiring harness bracket.
Apply a light coat of dielectric grease to the 4 electrical connectors. Adhesives, Fluids, Lubricants, and Sealers
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

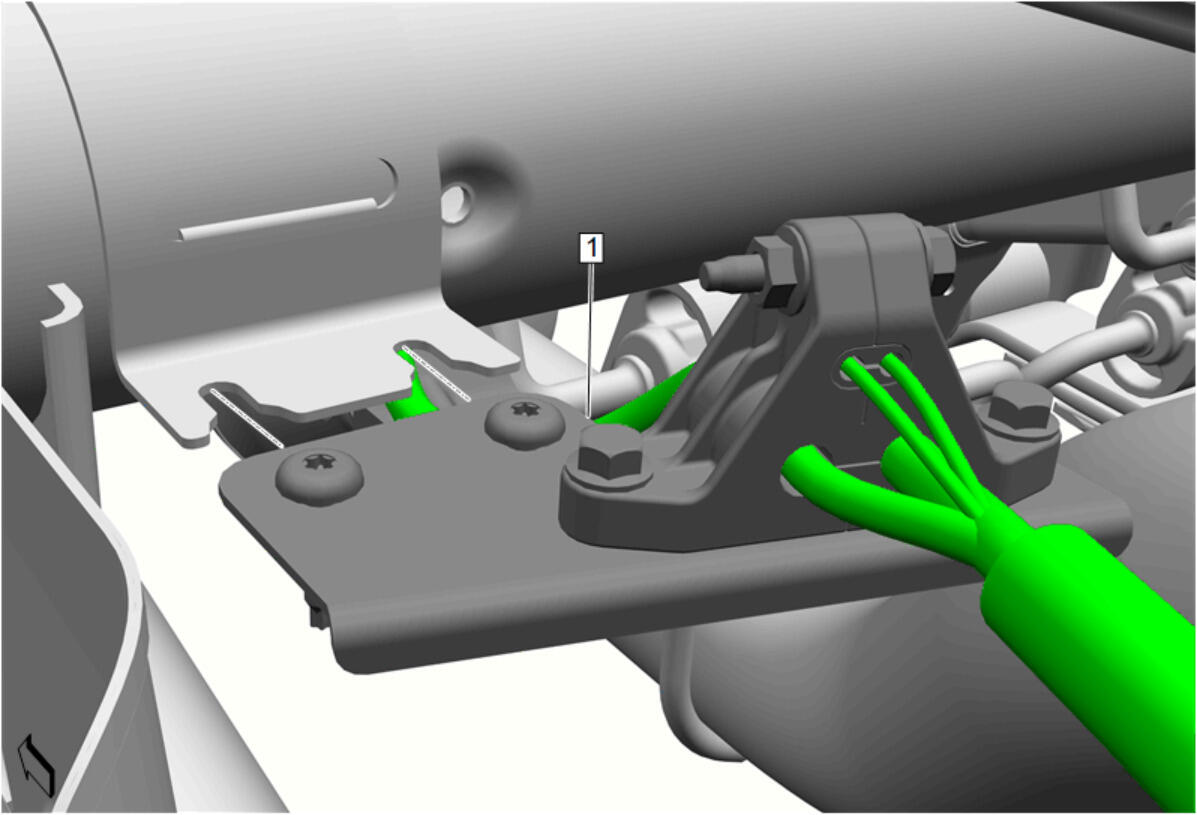

Slide the chassis rear wiring harness bracket (1) towards the front of the vehicle and install to the frame rail support.
Courtesy of GENERAL MOTORS COMPANY

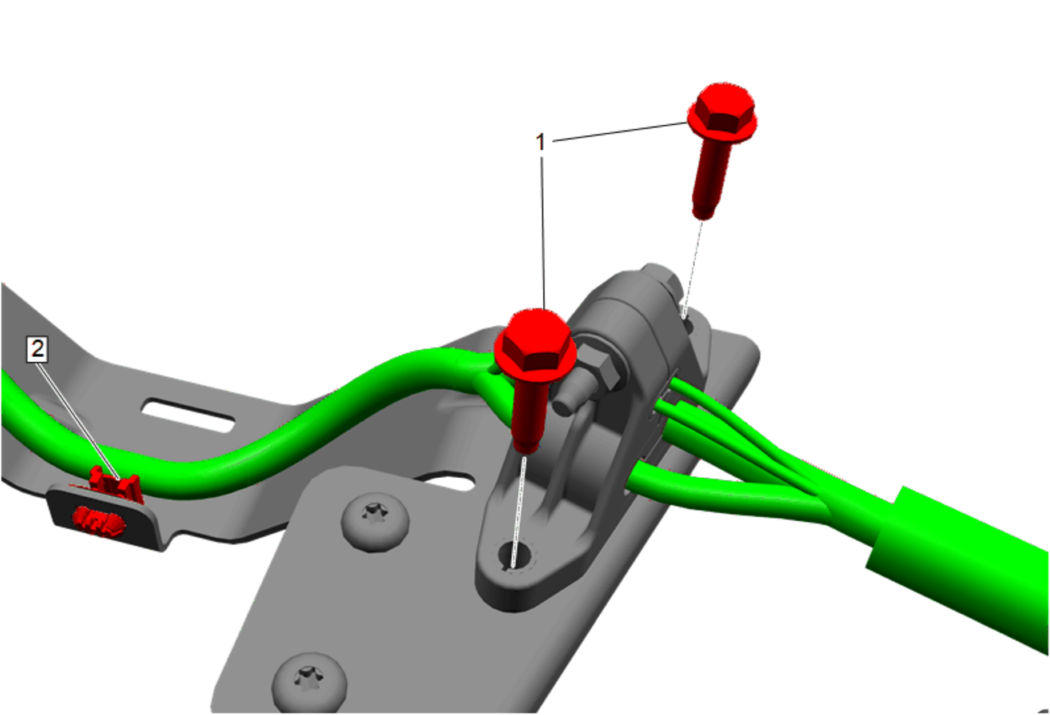

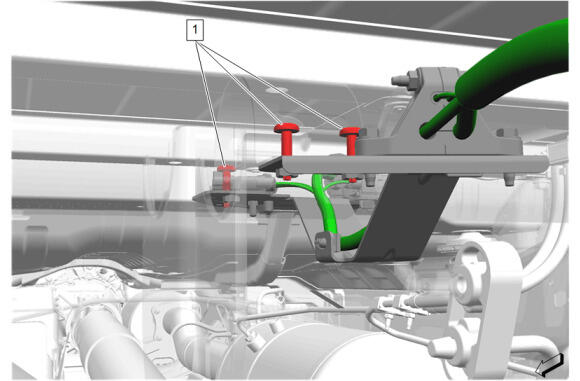

Chassis Rear Wiring Harness Bracket Bolt (1) - tighten [ 3x ] 9 N.m (80 lb in).
Courtesy of GENERAL MOTORS COMPANY

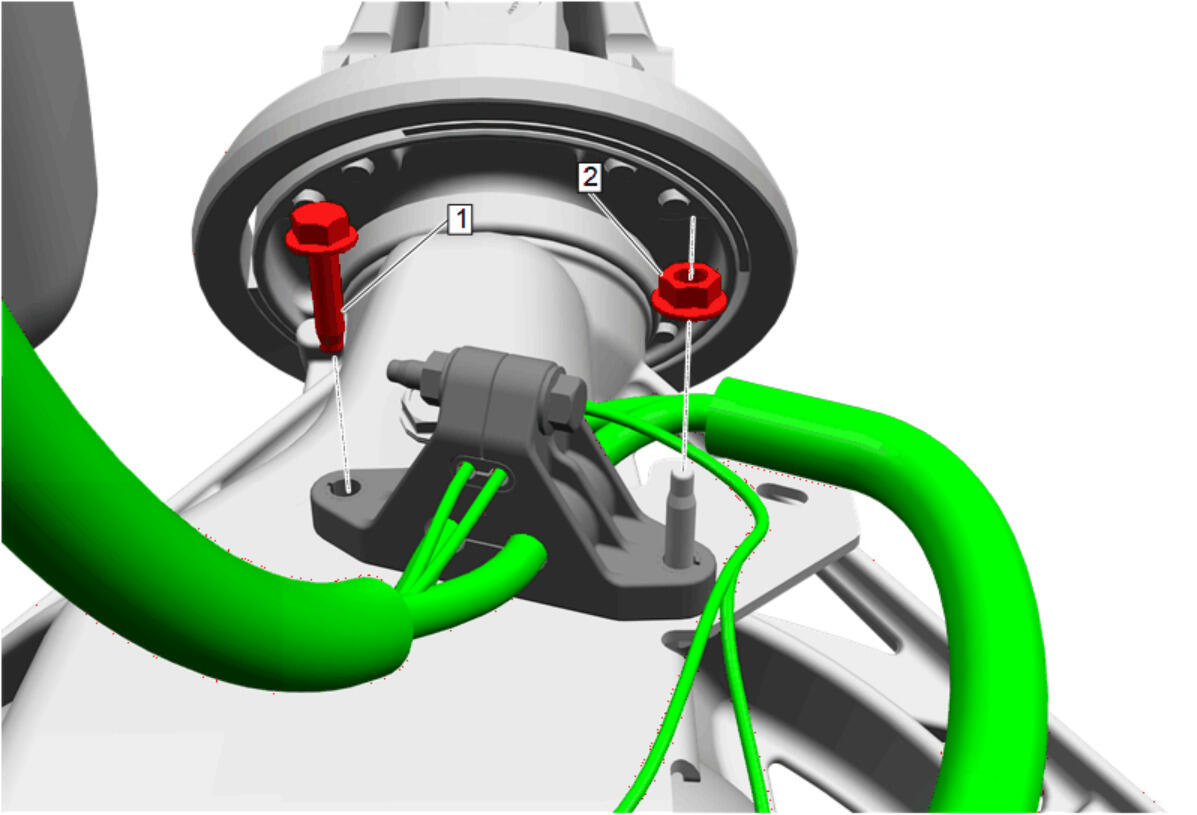

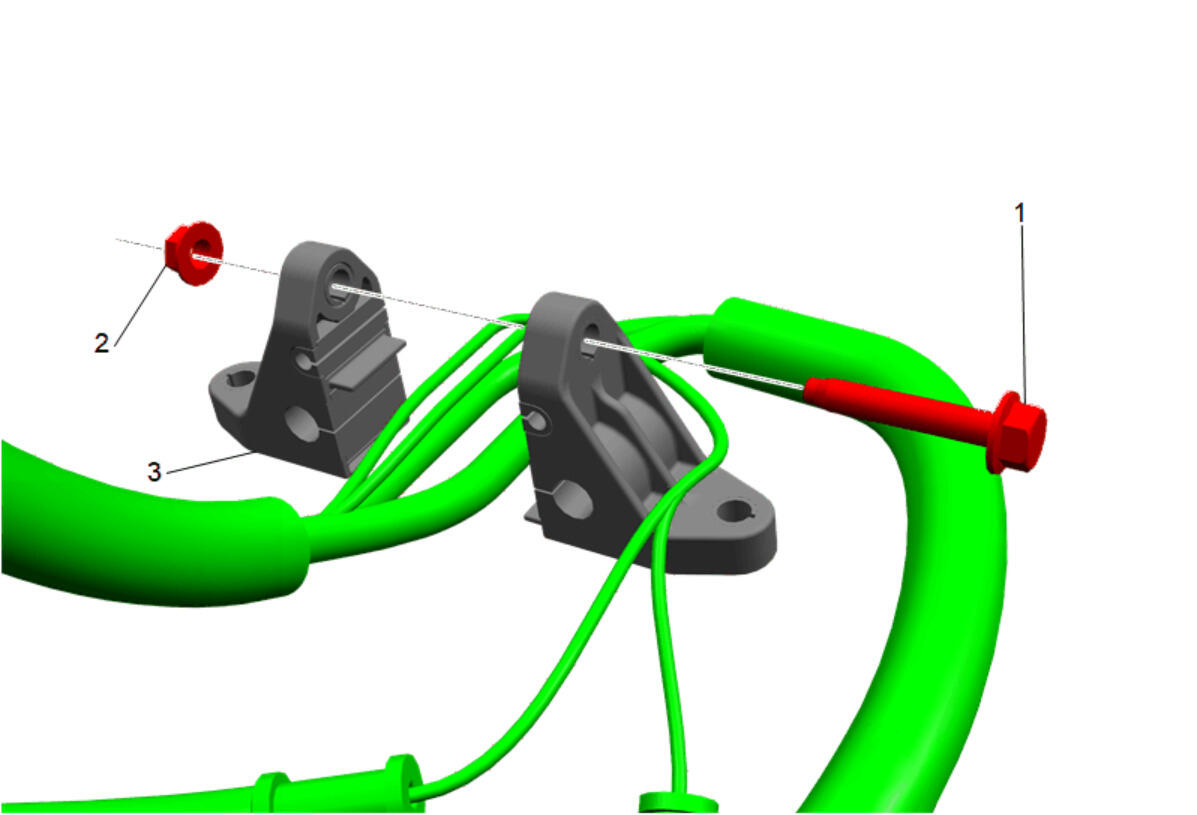

Jounce Block Nut (2) @ Differential - Install and tighten 9 N.m (80 lb in)
Jounce Block Bolt (1) @ Differential - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

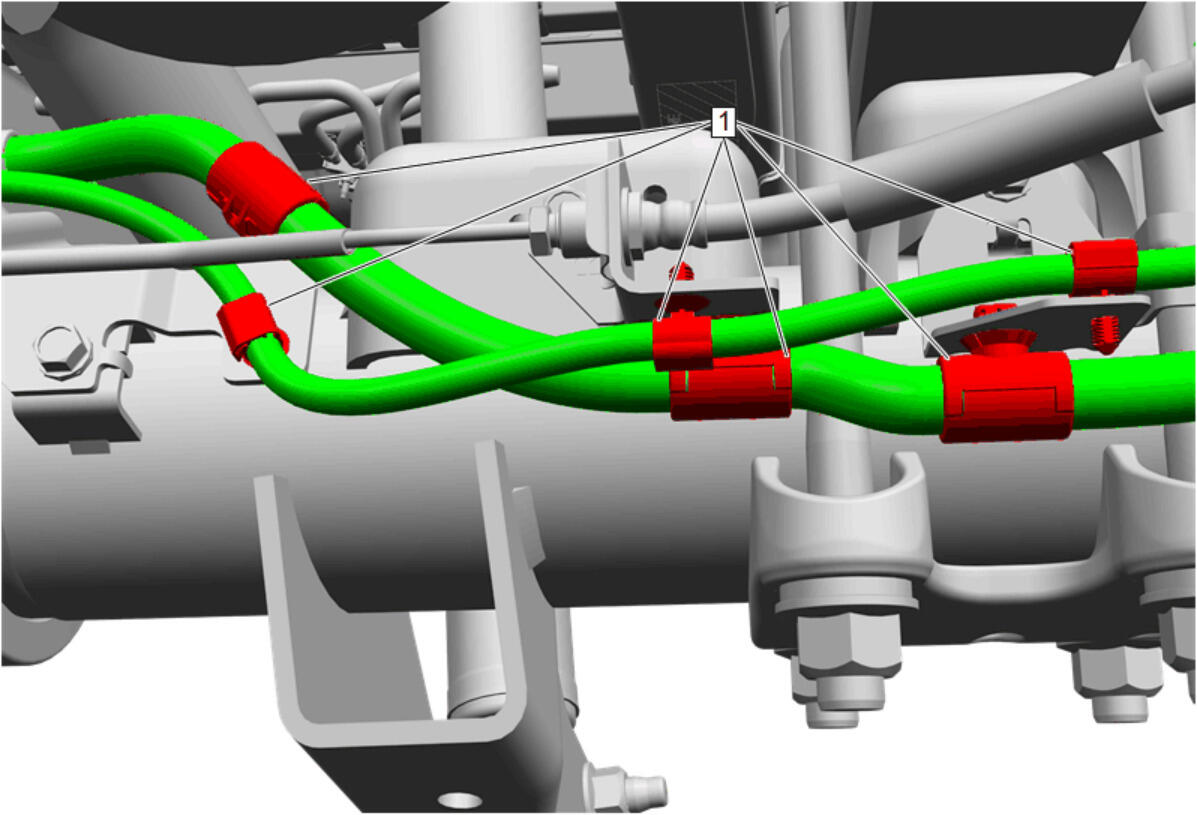

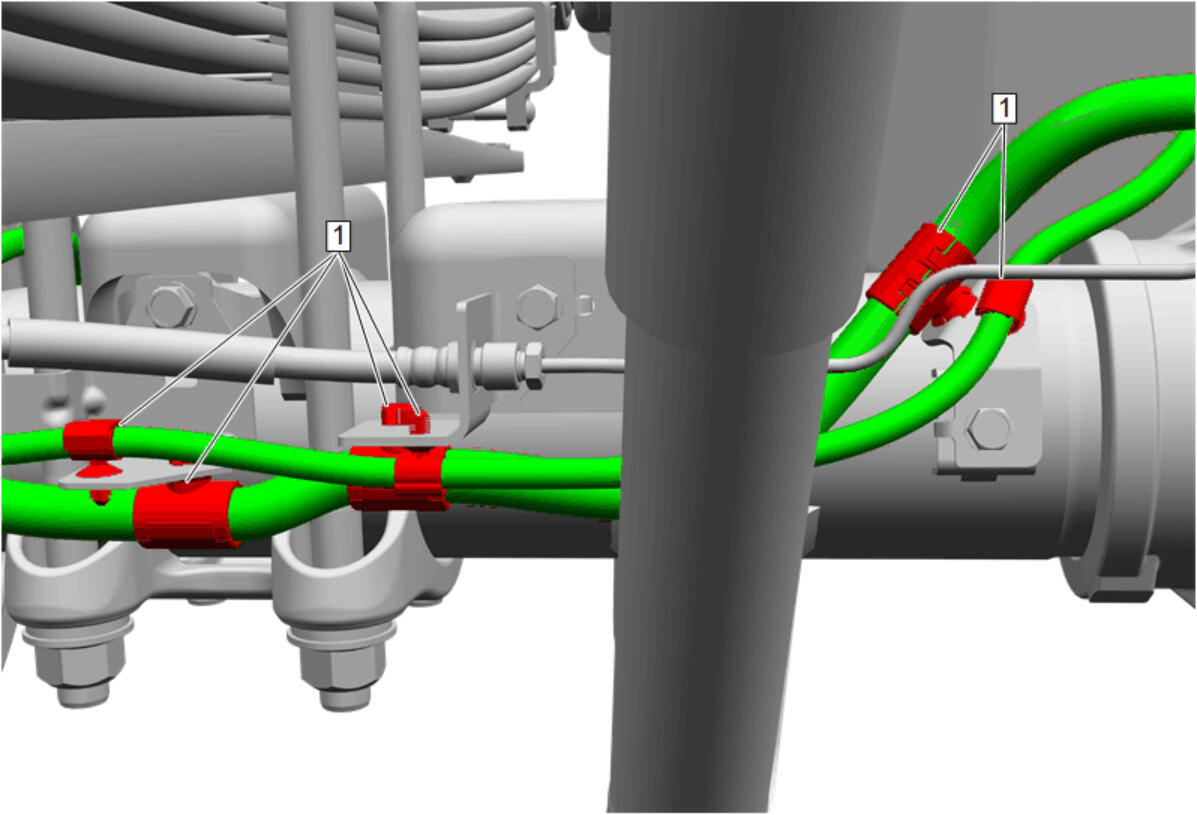

Fastener (1) - Secure [ 10x ]
Courtesy of GENERAL MOTORS COMPANY

Fastener (1) - Secure [ 6x ]
Courtesy of GENERAL MOTORS COMPANY

Apply a light coat of wheel speed anti-corrosion grease to the rear wheel speed sensor and mounting pad on the rear axle housing. Adhesives, Fluids, Lubricants, and Sealers

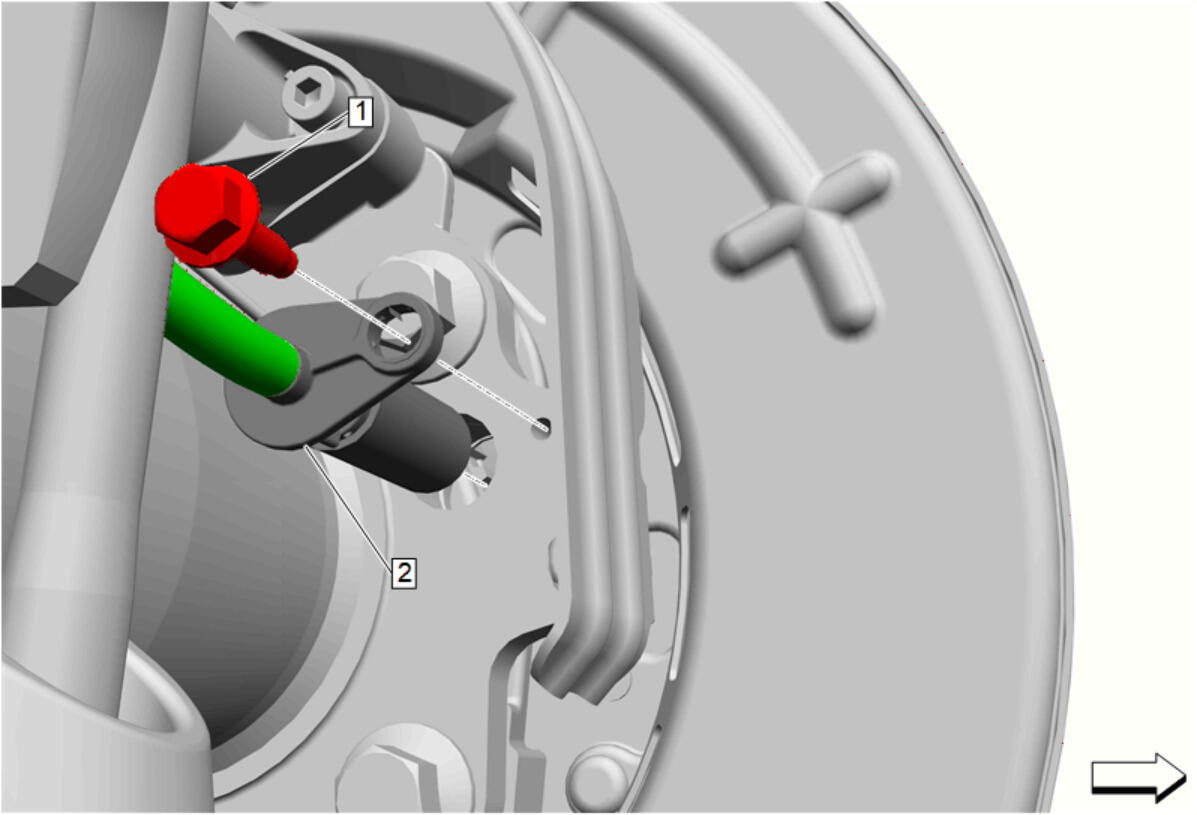

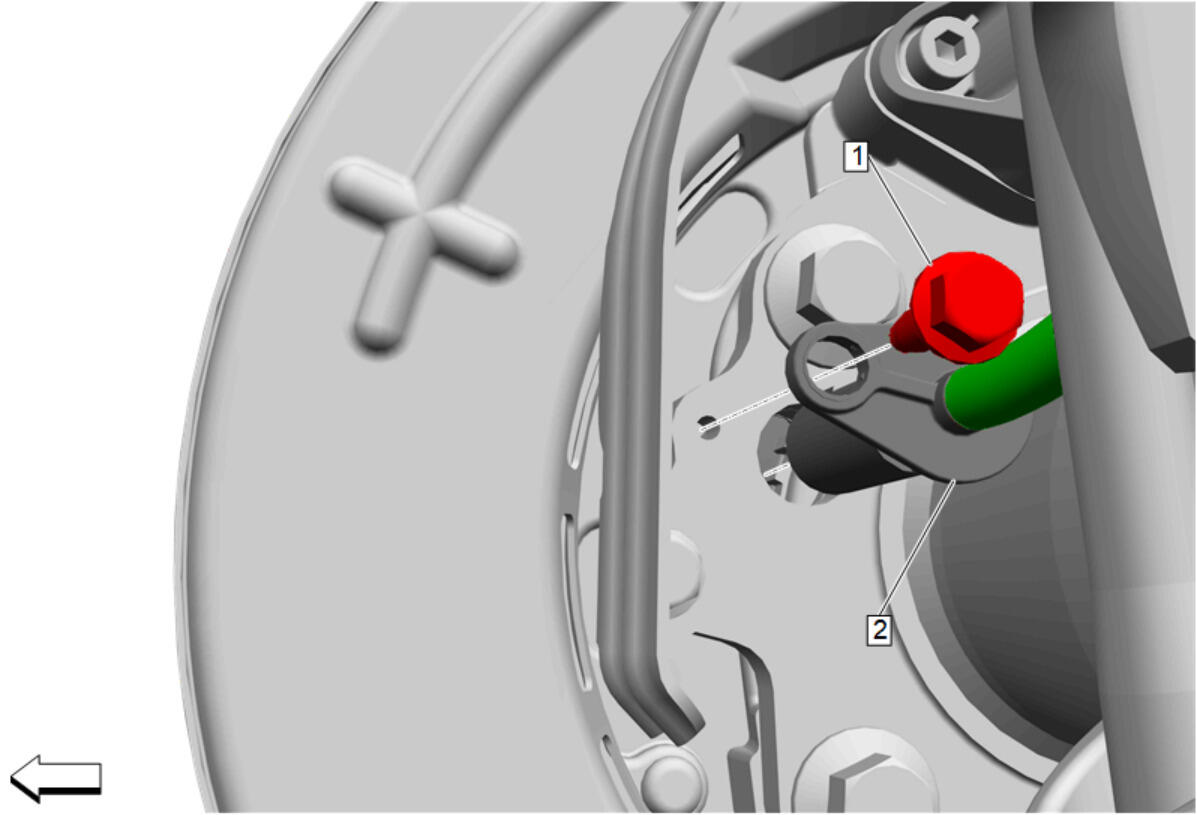

Rear Wheel Speed Sensor- Right Side (2) - Install
Wheel Speed Sensor Bolt- Right Side (1) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

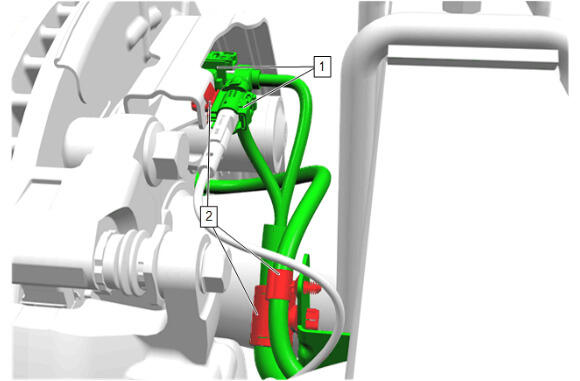

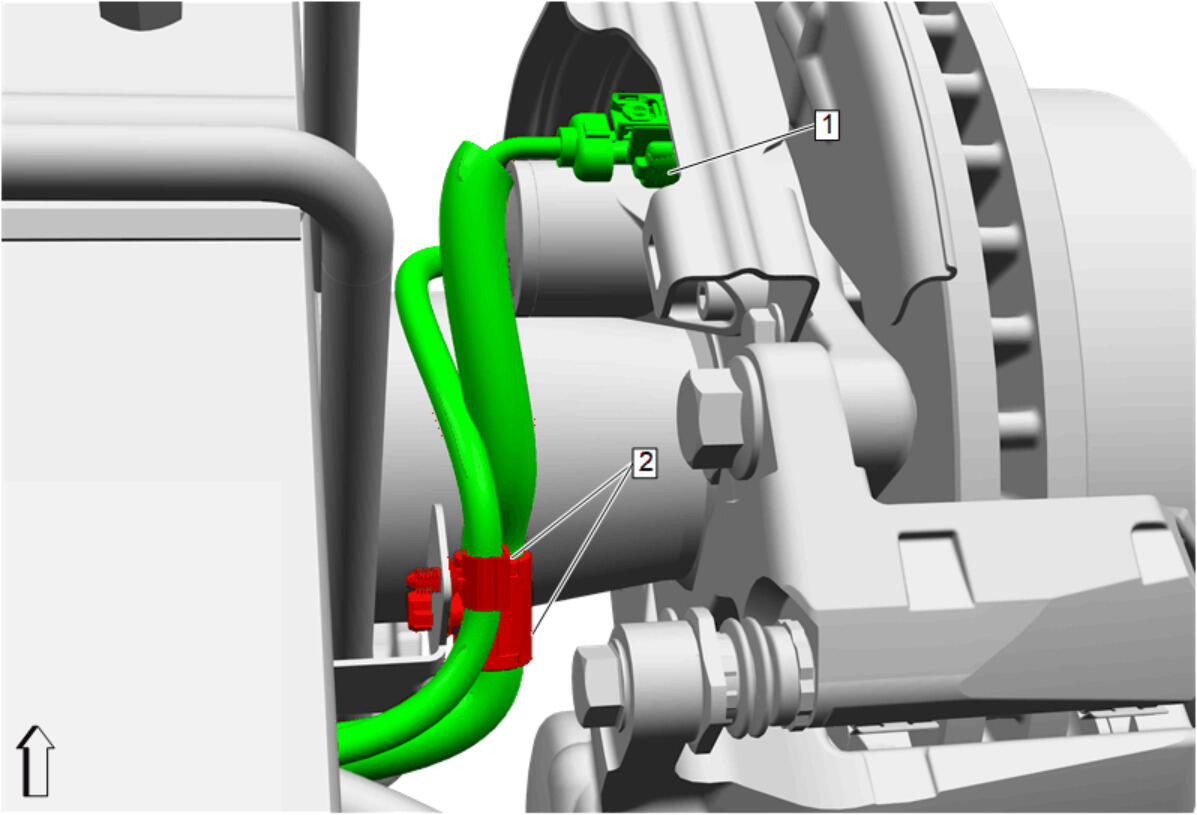

Fastener (2) - Secure [ 2x ]
Connect the electrical connector.(1)
Courtesy of GENERAL MOTORS COMPANY

Fastener (1) - Secure [ 6x ]
Courtesy of GENERAL MOTORS COMPANY

Fastener (2) - Secure [ 2x ]
Connect the electrical connector.(1) [ 2x ]
Courtesy of GENERAL MOTORS COMPANY

Apply a light coat of wheel speed anti-corrosion grease to the rear wheel speed sensor and mounting pad on the rear axle housing. Adhesives, Fluids, Lubricants, and Sealers
Rear Wheel Speed Sensor- Left Side (2) - Install
Wheel Speed Sensor Bolt- Left Side (1) - Install and tighten 9 N.m (80 lb in)
Install the rear tire and wheel assemblies. Tire and Wheel Removal and Installation (Front with Dual Wheels)Tire and Wheel Removal and Installation (Rear with Dual Wheels)Tire and Wheel Removal and Installation (with Single Wheels)
Remove the support and lower the vehicle.
Verify the repair is complete. Diagnostic System Check - Vehicle
