Removal Procedure

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Prepare the electronic brake booster control module for removal. Control Module References
Without disconnecting the hoses, remove the radiator surge tank and position aside. Radiator Surge Tank Replacement (L8T)Radiator Surge Tank Replacement (L5P)
Thoroughly clean the area around the electronic brake control module (EBCM) and brake pressure modulator valve (BPMV) of all dirt and debris.

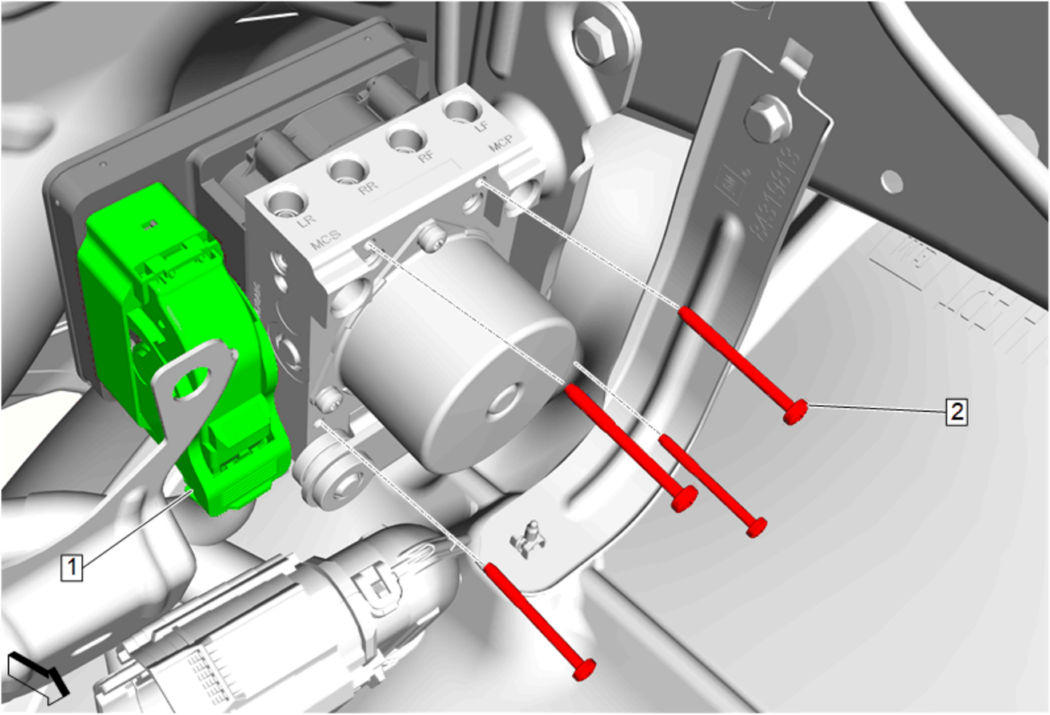

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Brake pipes not shown for graphic clarity. It is not necessary to remove the brake pipes from the BPMV.

Disconnect the electrical connector.(1)
Electronic Brake Control Module Bolt (2) - Remove and DISCARD [ 4x ]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Brake pipes not shown for graphic clarity. It is not necessary to remove the brake pipes from the BPMV.

Electronic Brake Control Module(1) - Remove
