Installation Procedure

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Inspect and clean the sealing surfaces of the EBCM and the BPMV with denatured alcohol and allow to dry.
Inspect the EBCM to BPMV Gasket for damage and replace, if necessary.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Brake pipes not shown for graphic clarity. It is not necessary to remove the brake pipes from the BPMV.

Electronic Brake Control Module(1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Torque-to-Yield Fastener Caution .

NOTE:
Brake pipes not shown for graphic clarity. It is not necessary to remove the brake pipes from the BPMV.

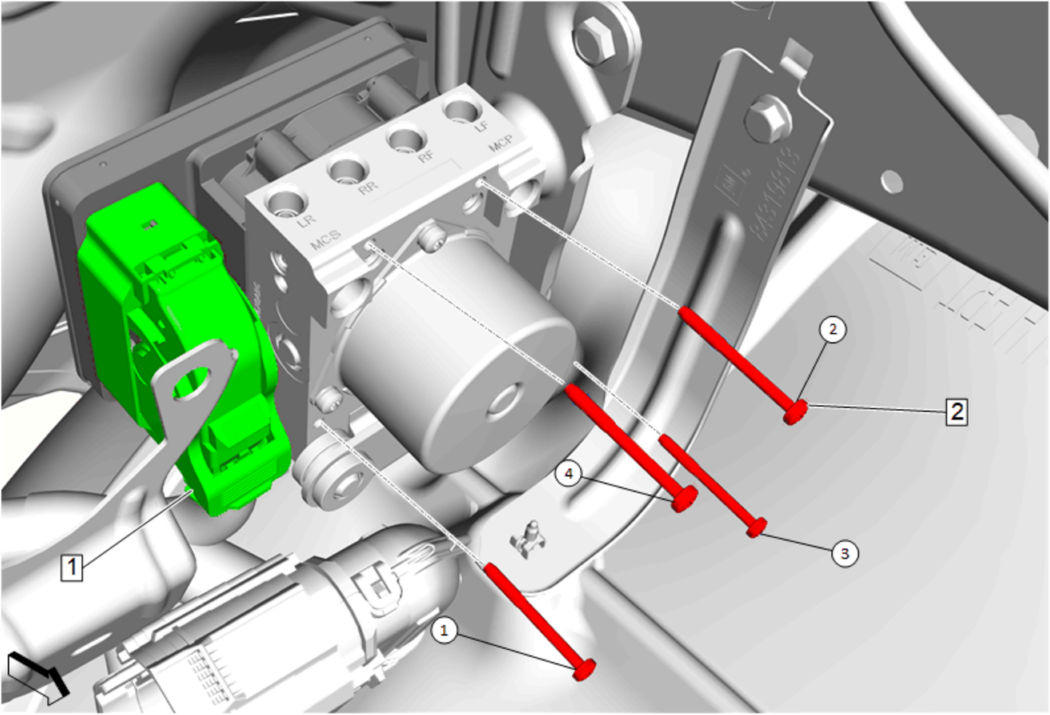

Install and tighten the 4 NEW electronic brake control module bolts (2) in the sequence shown as follows:
1. First Pass: 1.5 N.m (13 lb in)
2. Second Pass: 2.5 N.m (22 lb in)
3. Final Pass: 3.5 N.m (31 lb in)
Connect the electrical connector.(1)
Radiator Surge Tank - Install - Radiator Surge Tank Replacement (L8T)Radiator Surge Tank Replacement (L5P)
Program the electronic brake control module. Control Module References
