Installation Procedure
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Brake Pressure Modulator Valve Bracket(2) - Install
- Brake Pressure Modulator Valve Bolt (1) - Install and tighten 11 N.m (97 lb in)

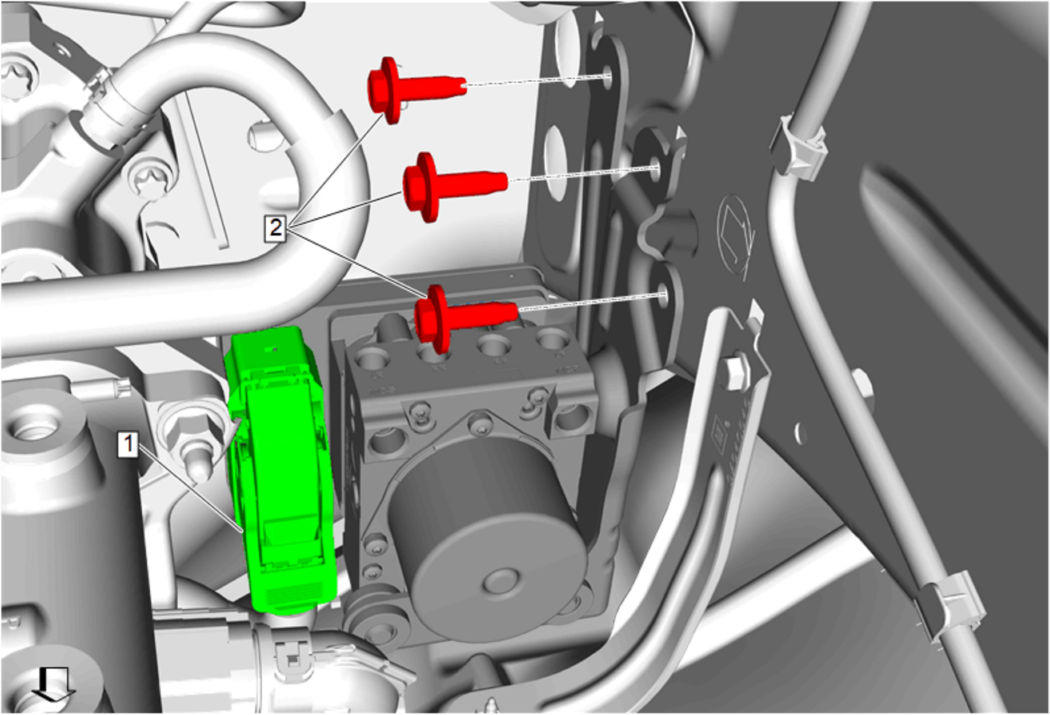

Brake Pressure Modulator Valve(1) - Install
Brake Pressure Modulator Valve Bracket Bolt (2) - Install and tighten [ 3x ] 22 N.m (16 lb ft)
- Connect the EBCM electrical connector (1).
- Front Brake Intermediate Pipe Fitting @ Brake Pressure Modulator Valve - Install [ 4x ] - Front Brake Intermediate Pipe Replacement
- Brake Pressure Modulator Valve Pipe Fitting @ Brake Pressure Modulator Valve - Install [ 2x ] - Brake Pressure Modulator Valve Pipe Replacement
- Bleed the antilock brake system. Antilock Brake System Automated Bleed
- Program the EBCM. Control Module References
- Calibrate the BPMV pressure sensor. Brake Pressure Modulator Valve Pressure Sensor Calibration
- Radiator Surge Tank - Install - Radiator Surge Tank Replacement (L8T)Radiator Surge Tank Replacement (L5P)
CAUTION:
Refer to Fastener Caution .
