Removal Procedure

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver seat and the passenger seat. Front Seat Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

{ If equipped }Front Center Seat (3) - Remove - Front Center Seat Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

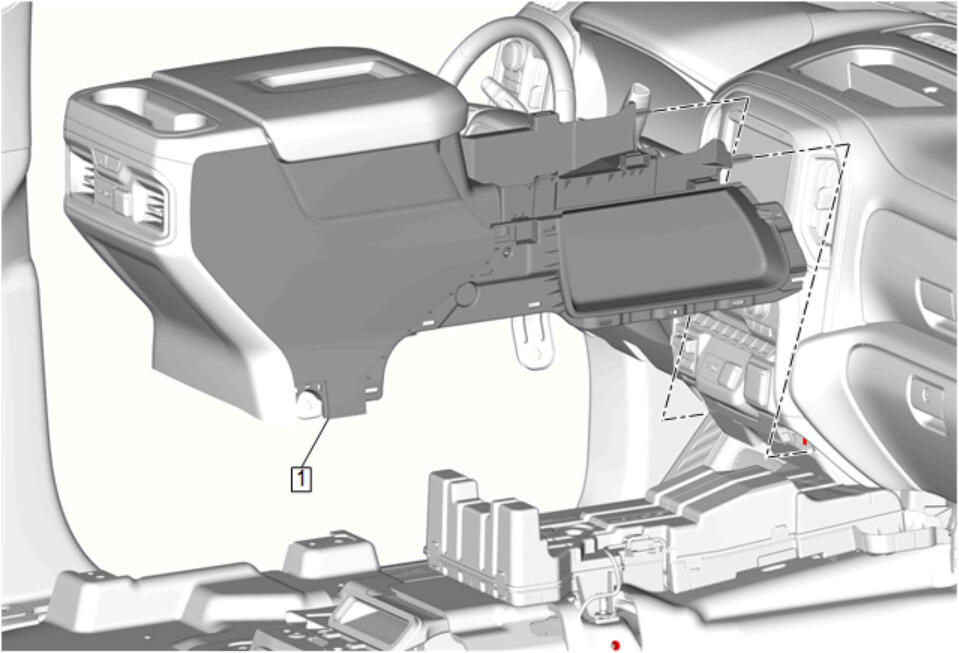

{ If equipped }Front Floor Lower Console (1) - Remove - Front Floor Lower Console Replacement
Courtesy of GENERAL MOTORS COMPANY

Radio Control Assembly (2) - Remove - Radio Control Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Pad - Right Side (2) - Remove - Instrument Panel Trim Pad Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

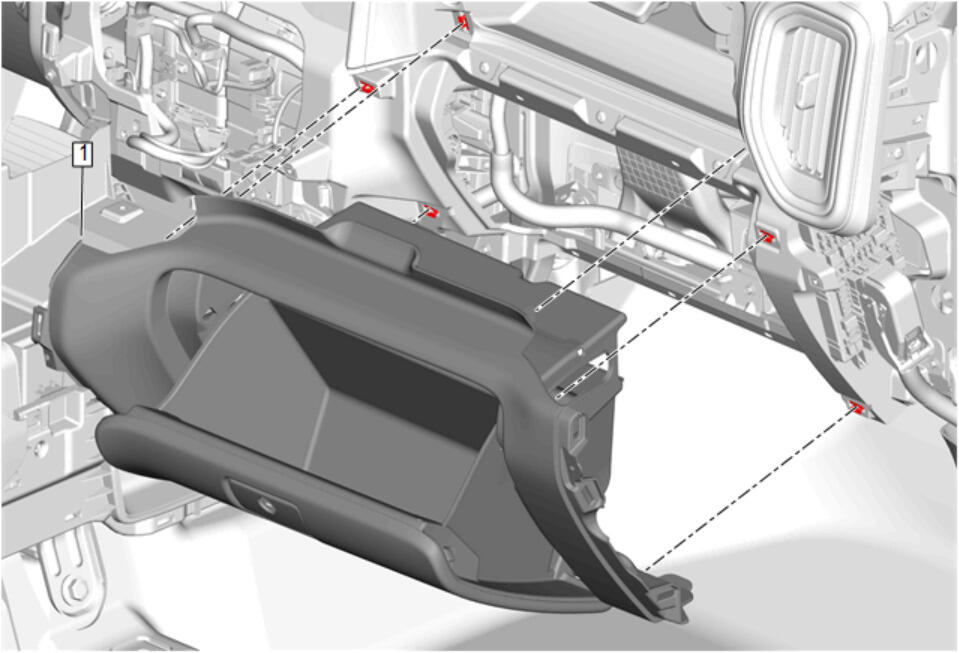

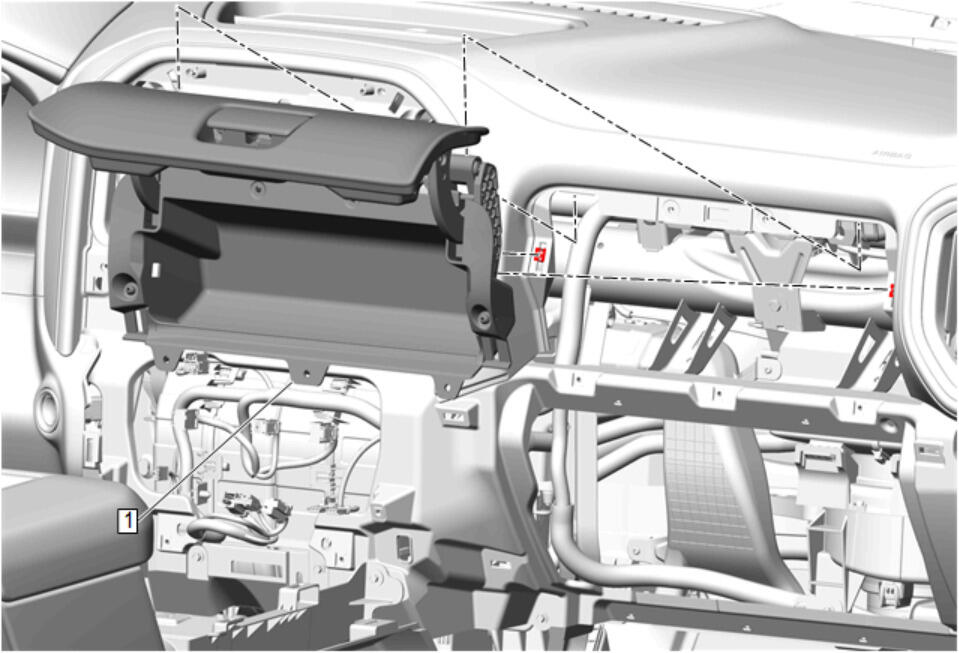

Instrument Panel Compartment (1) - Remove - Instrument Panel Compartment Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Upper Compartment (1) - Remove - Instrument Panel Upper Compartment Replacement
Courtesy of GENERAL MOTORS COMPANY

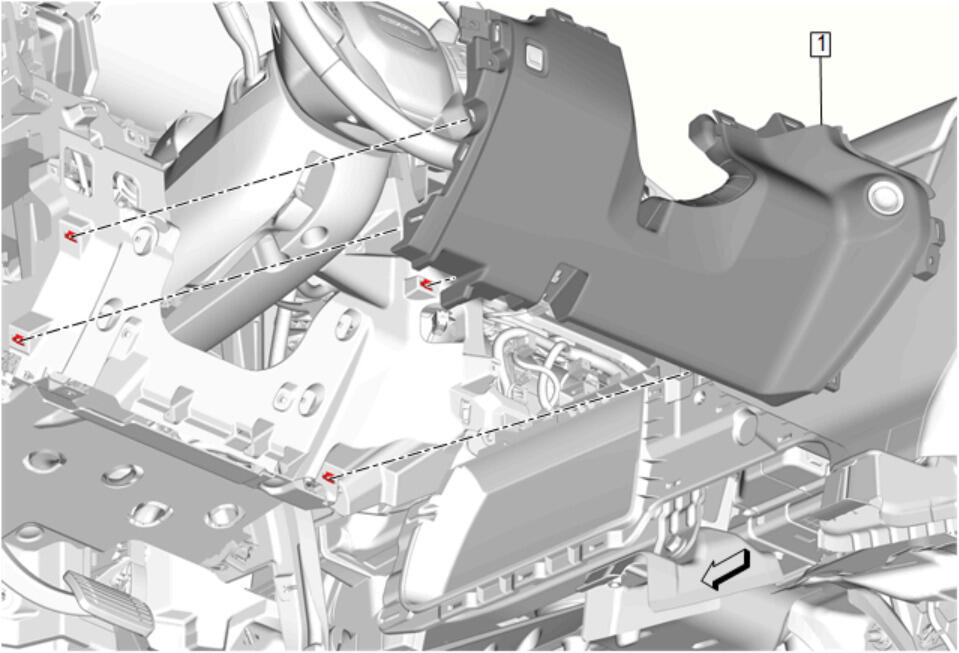

Instrument Panel Knee Bolster (1) - Remove - Instrument Panel Knee Bolster Replacement (With Front Floor Console)Instrument Panel Knee Bolster Replacement (Without Front Floor Console)
Courtesy of GENERAL MOTORS COMPANY

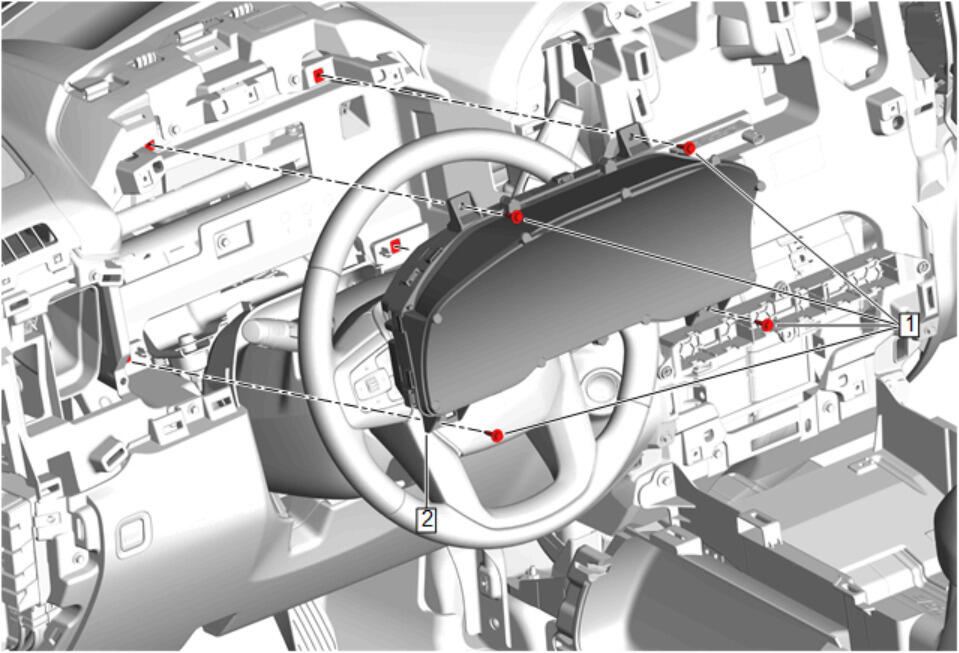

Instrument Cluster (2) - Remove - Instrument Cluster Replacement

Courtesy of GENERAL MOTORS COMPANY

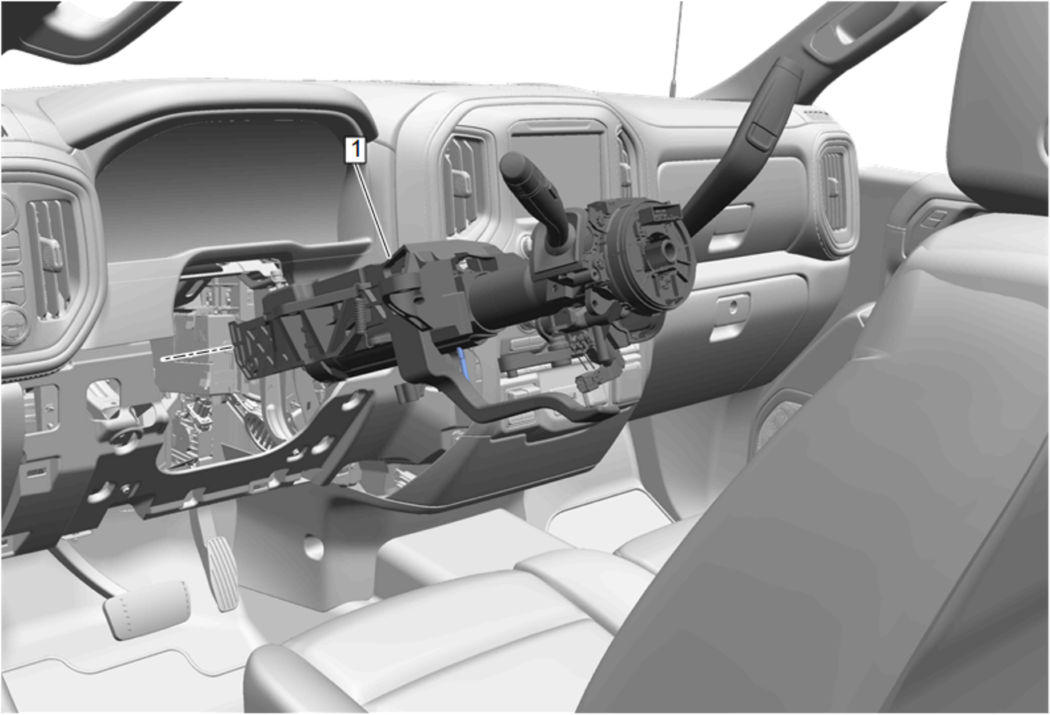

Steering Column (1) - Remove - Steering Column Replacement
Courtesy of GENERAL MOTORS COMPANY

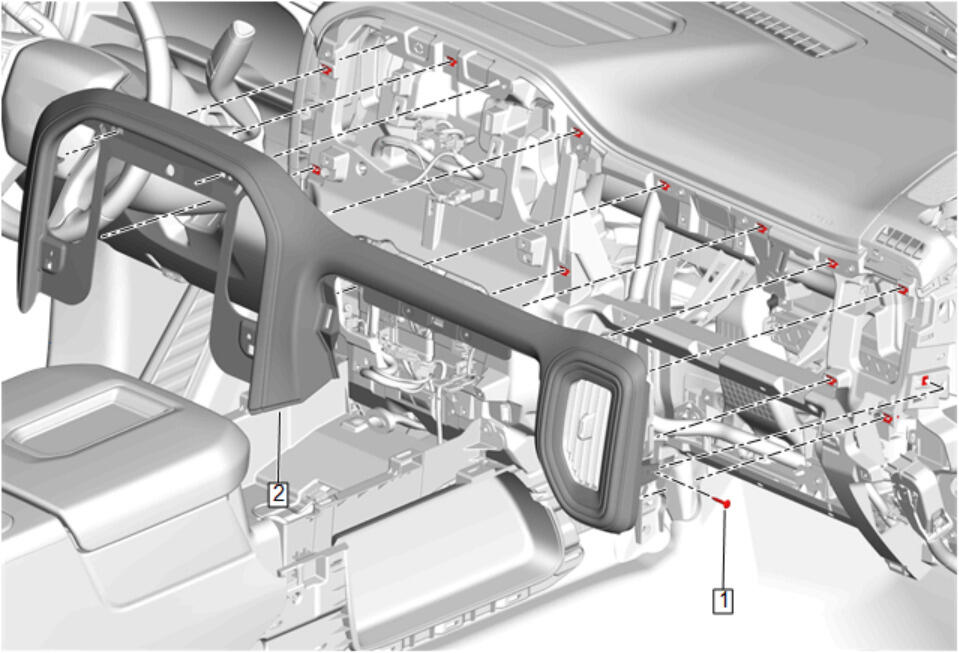

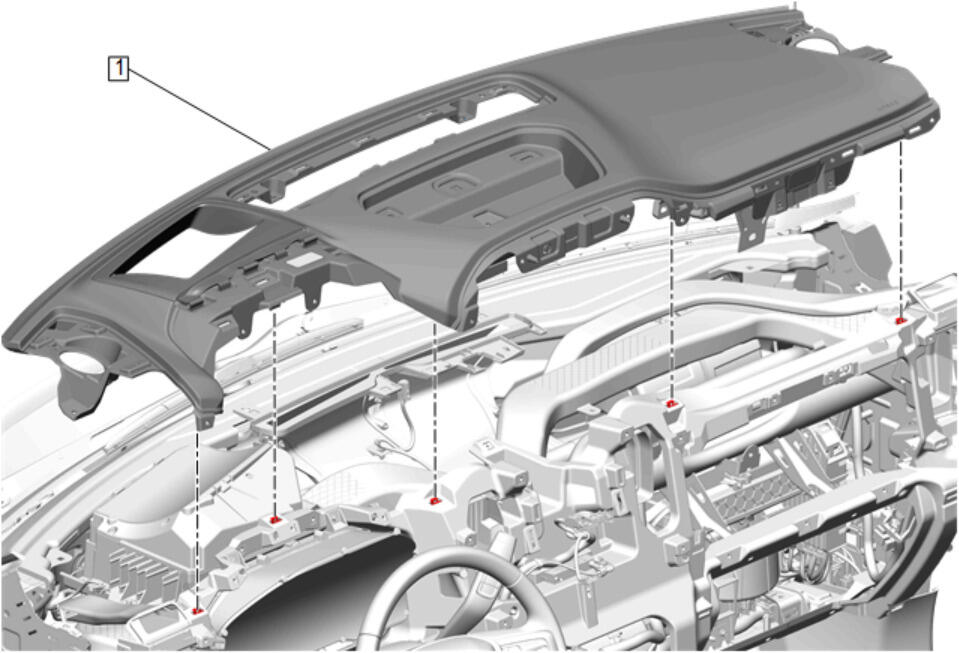

Instrument Panel Assembly (1) - Remove - Instrument Panel Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

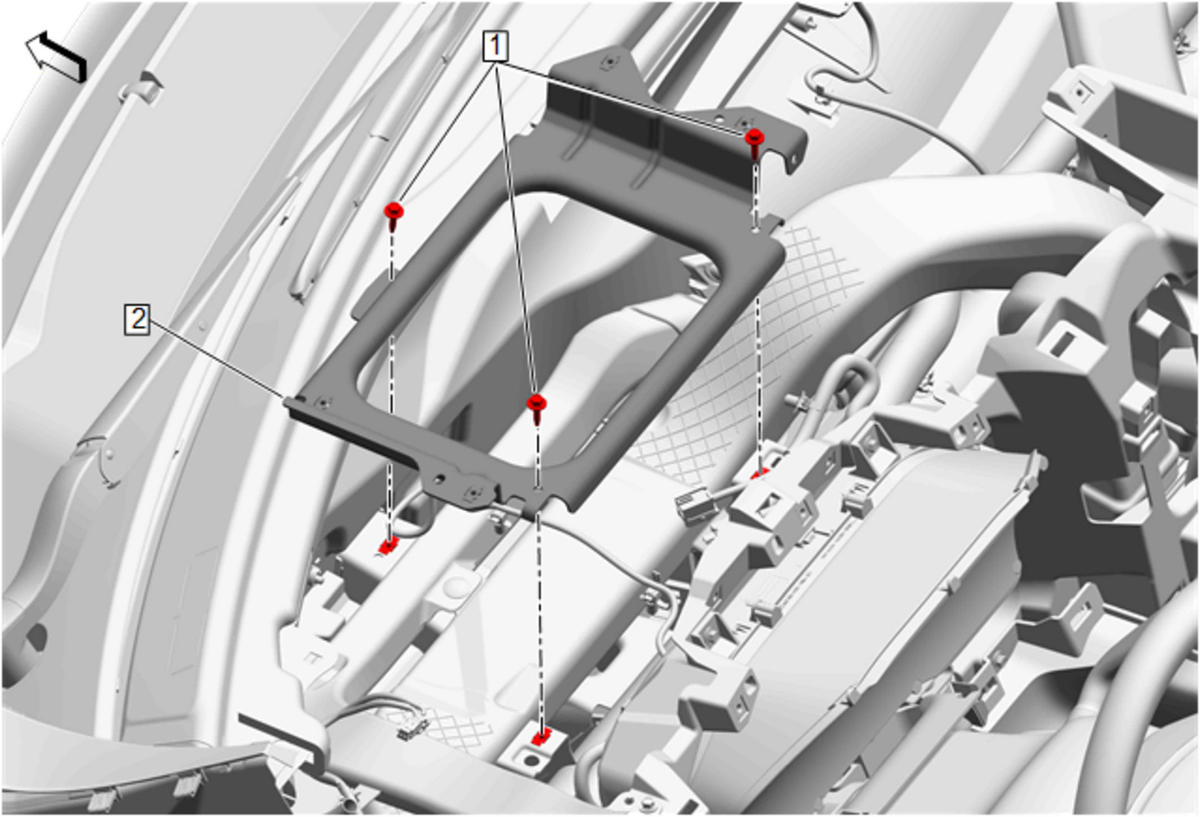

{ If equipped }Head-Up Display Bracket (2) - Remove - Head-Up Display Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Side Window Defogger Outlet Outer Duct - Left Side (1) - Remove - Side Window Defogger Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Air Outlet Duct - Left Side (1) - Remove - Instrument Panel Outer Air Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Air Outlet Duct- Left Side (2) - Remove - Instrument Panel Center Air Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Side Window Defogger Outlet Duct - Right Side (3) - Remove - Side Window Defogger Outlet Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Air Outlet Duct - Right Side (1) - Remove - Instrument Panel Outer Air Outlet Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

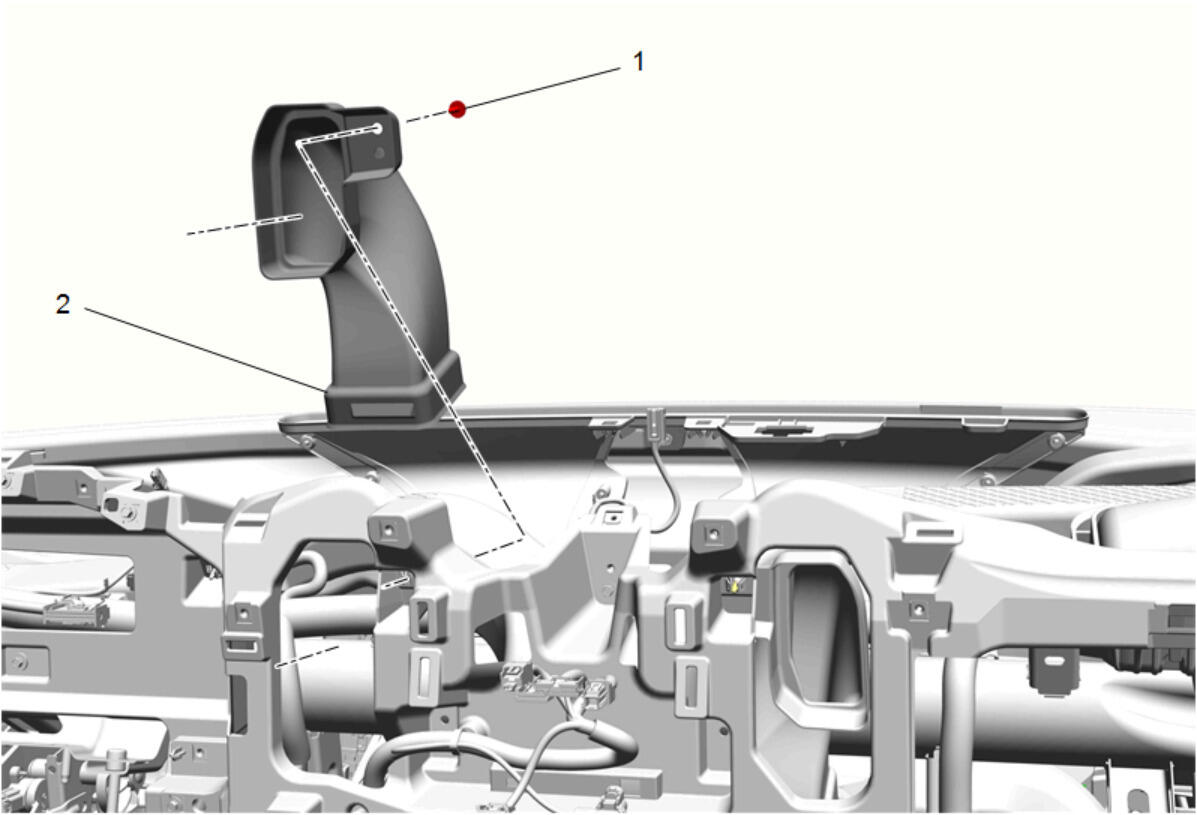

Instrument Panel Center Air Outlet Duct- Right Side (2) - Remove - Instrument Panel Center Air Outlet Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

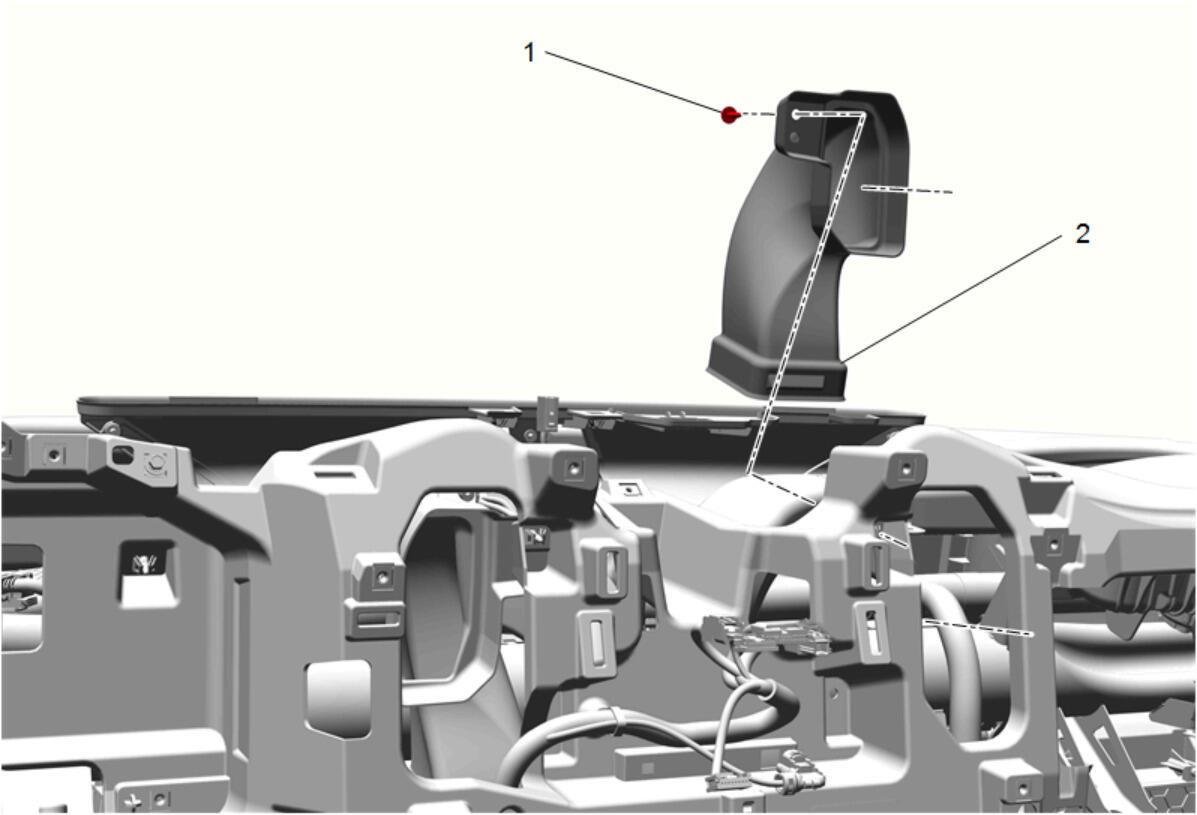

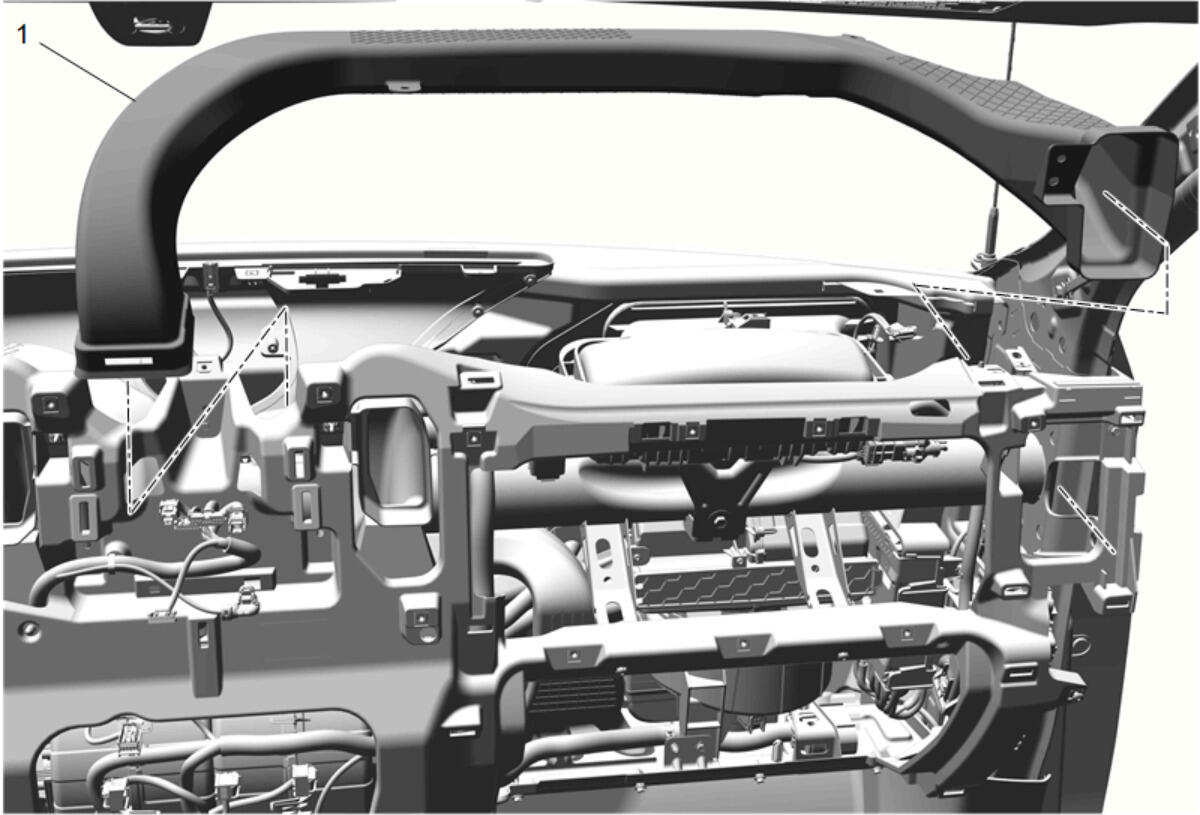

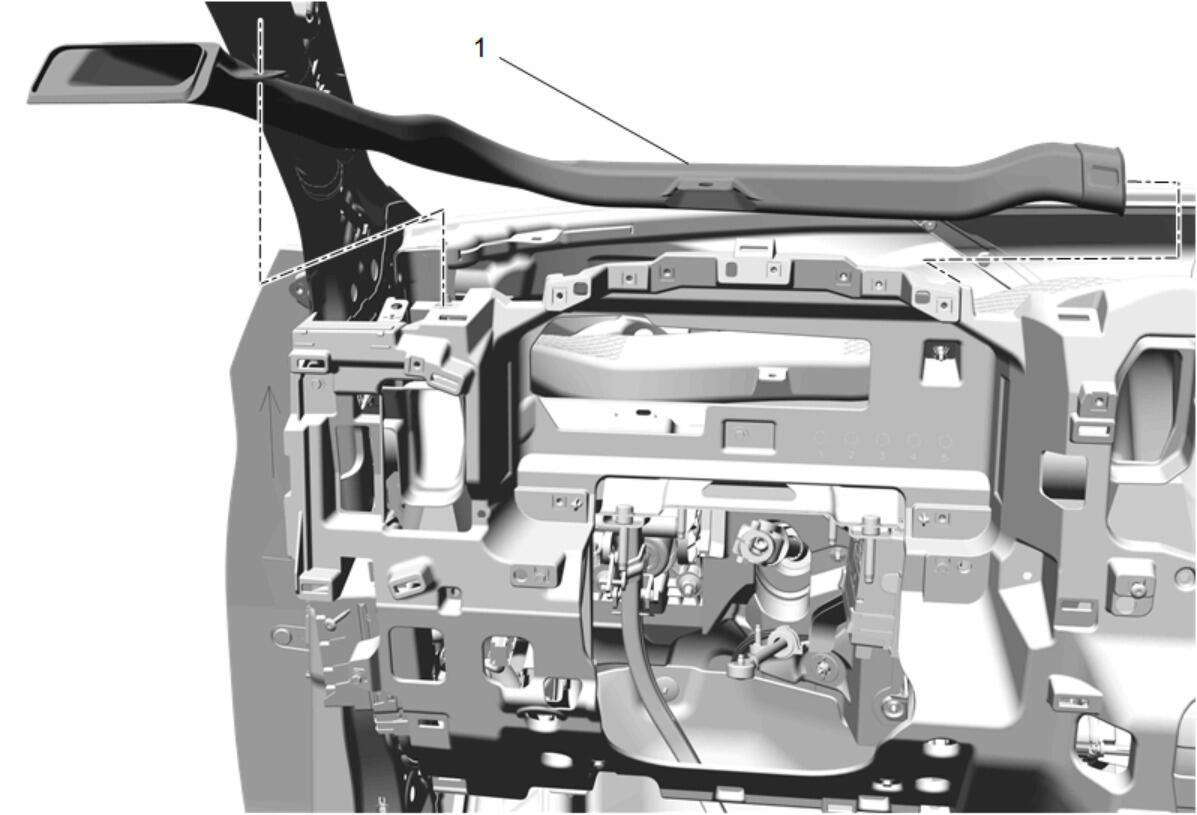

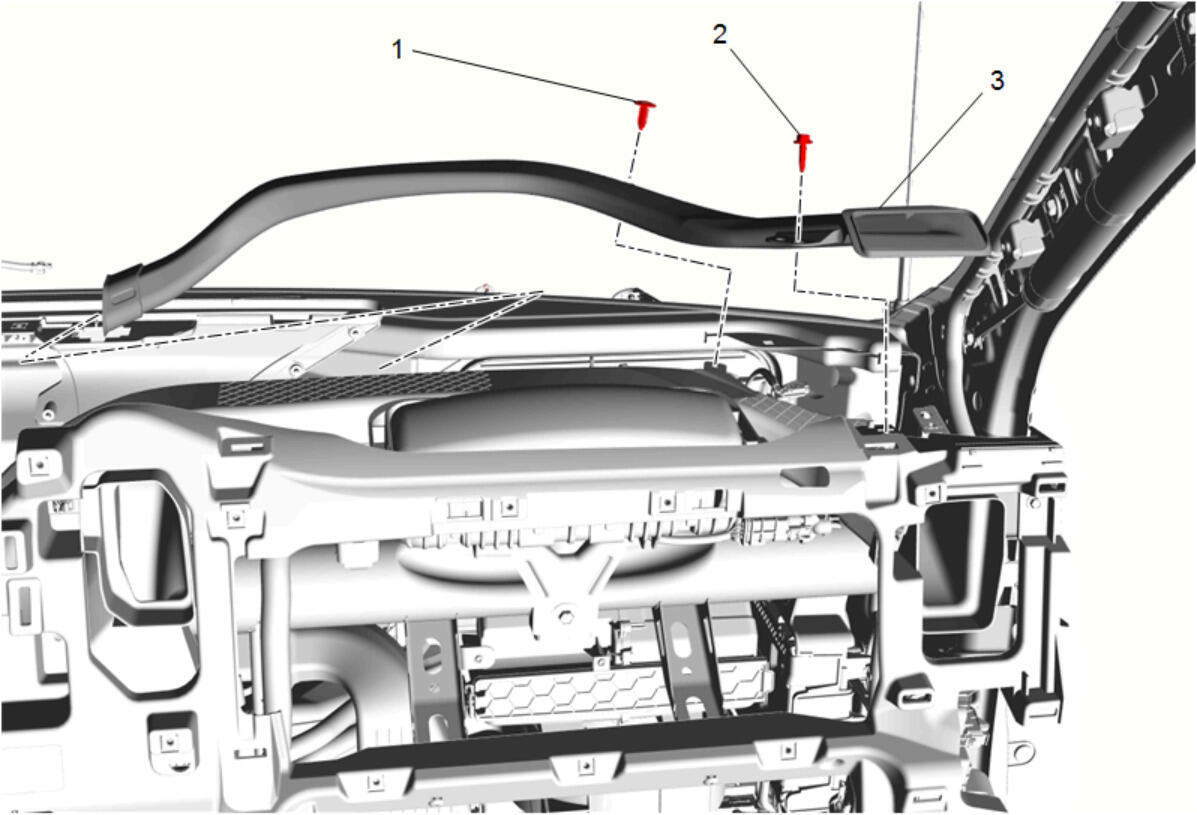

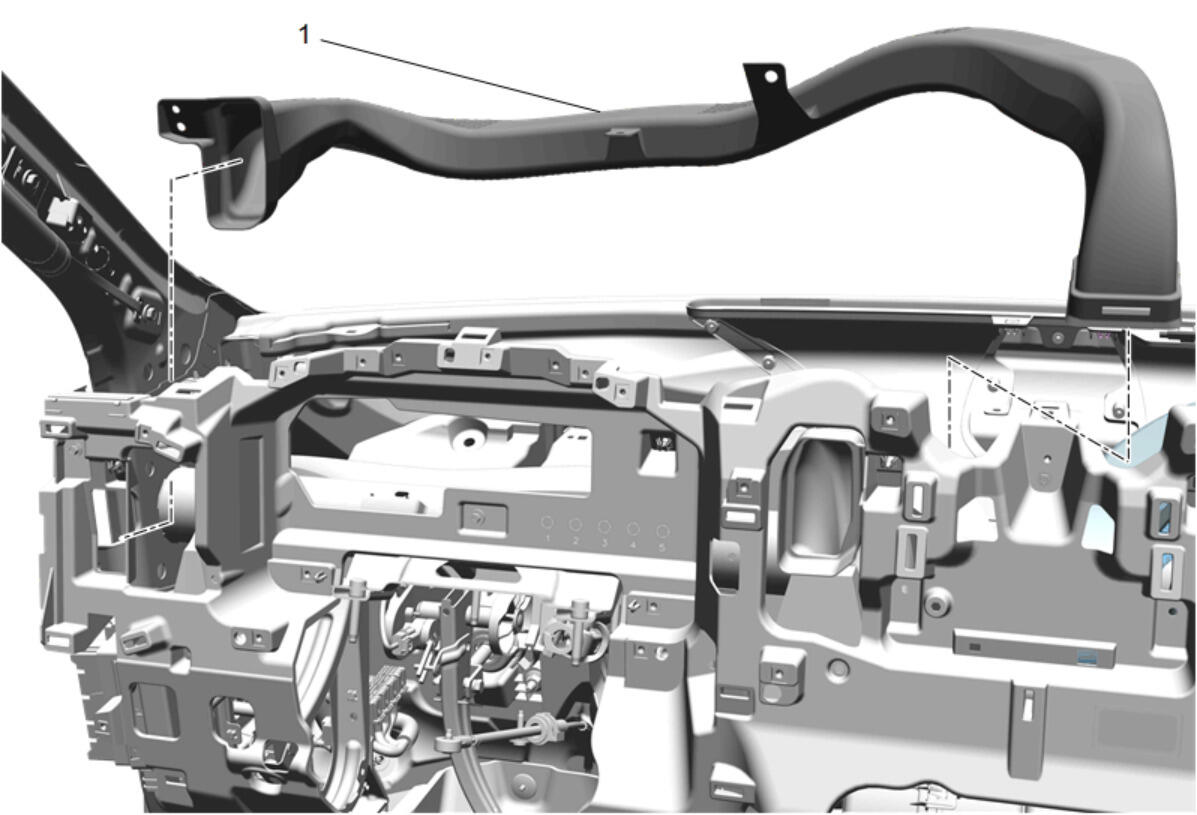

Windshield Defroster Outlet Duct (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

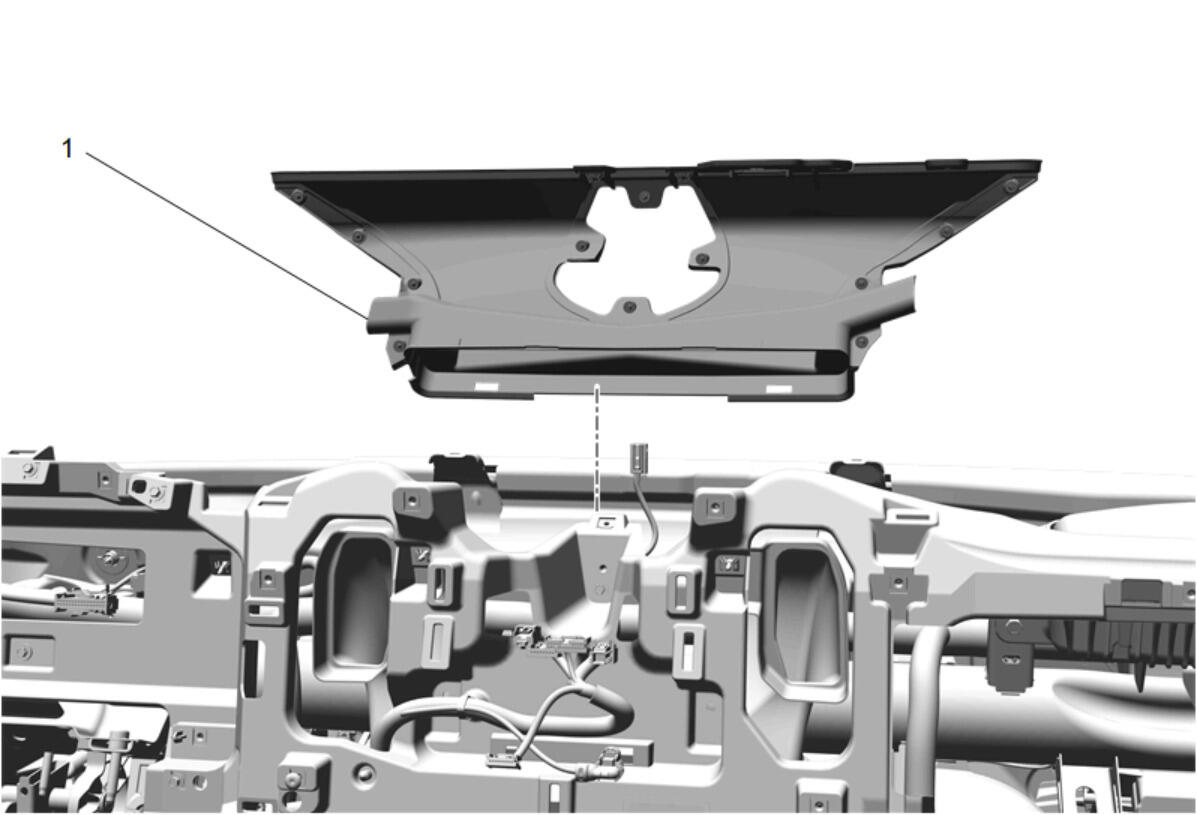

Instrument Panel Carrier (1) - Remove - Instrument Panel Carrier Replacement
Instrument Panel Tie Bar - Remove - Instrument Panel Tie Bar Replacement
Courtesy of GENERAL MOTORS COMPANY

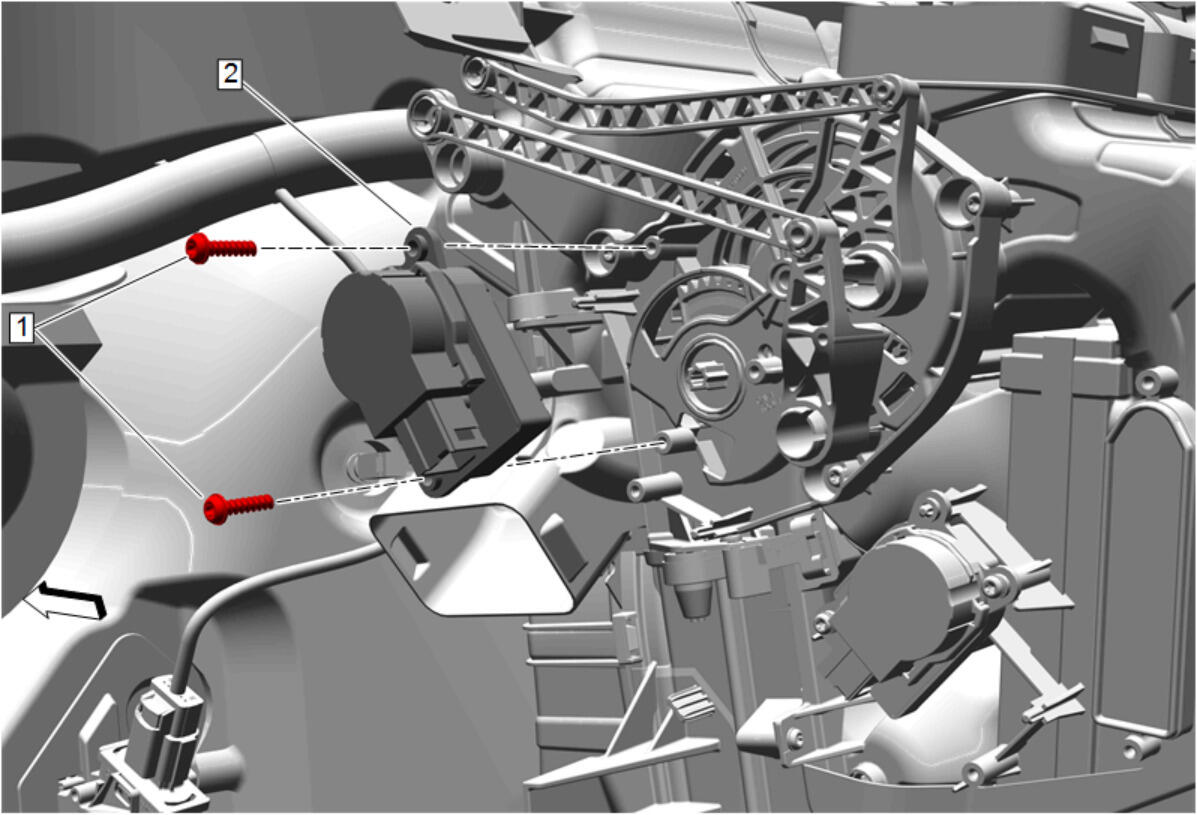

Mode Valve Actuator (2) - Remove - Mode Valve Actuator Replacement
Courtesy of GENERAL MOTORS COMPANY

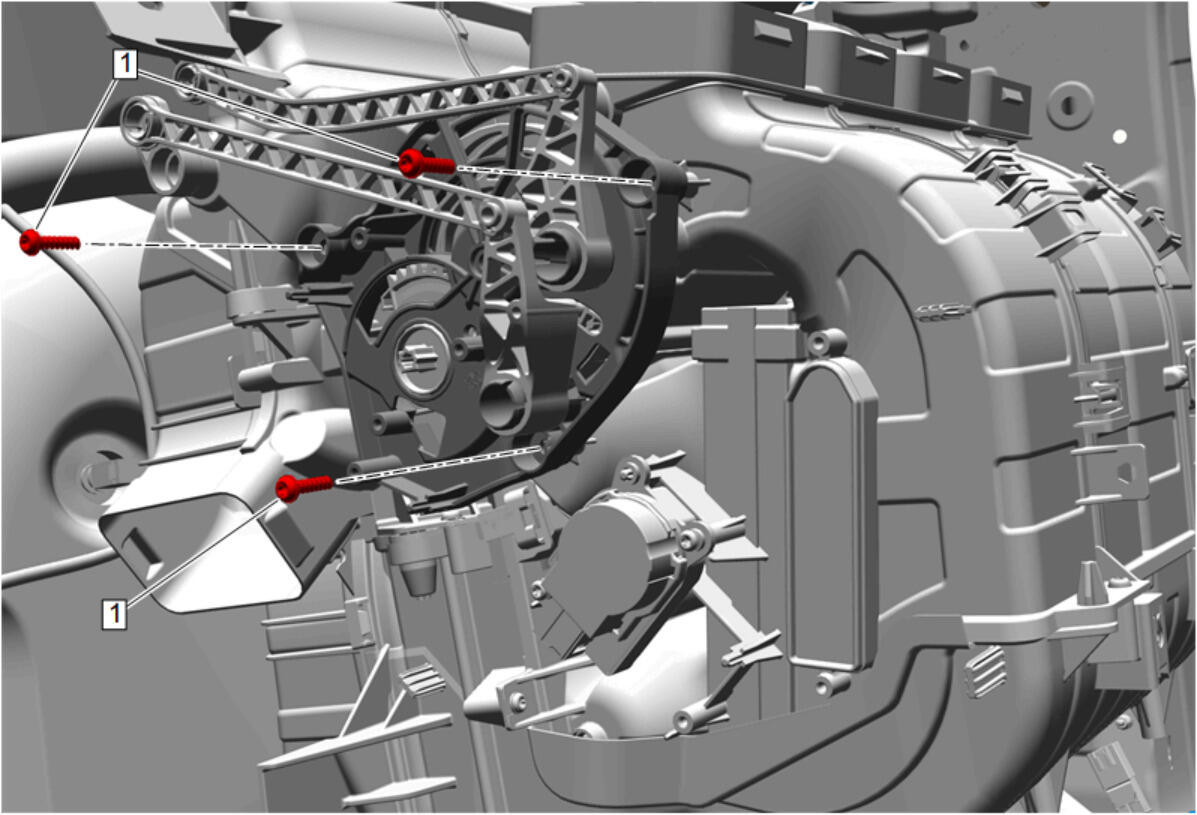

Mode Control Cam Bolt (1) - Remove [ 3x ]
Courtesy of GENERAL MOTORS COMPANY

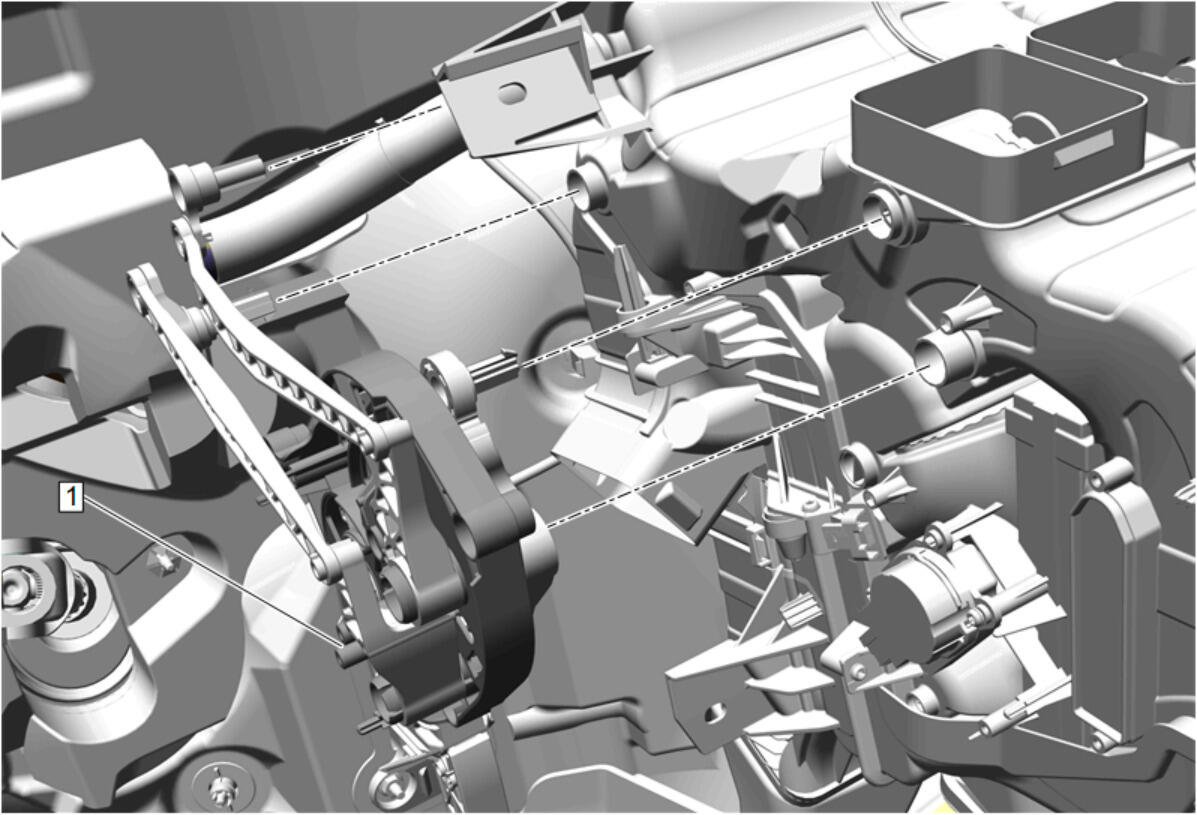

Mode Control Cam (1) - Remove
