Installation Procedure

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

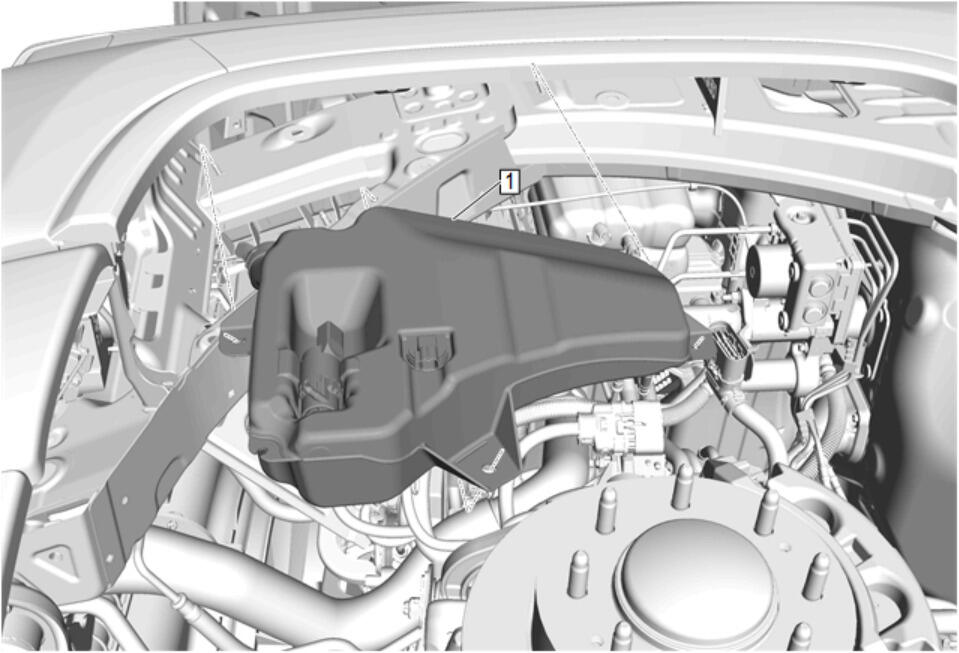

Windshield Washer Solvent Container (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

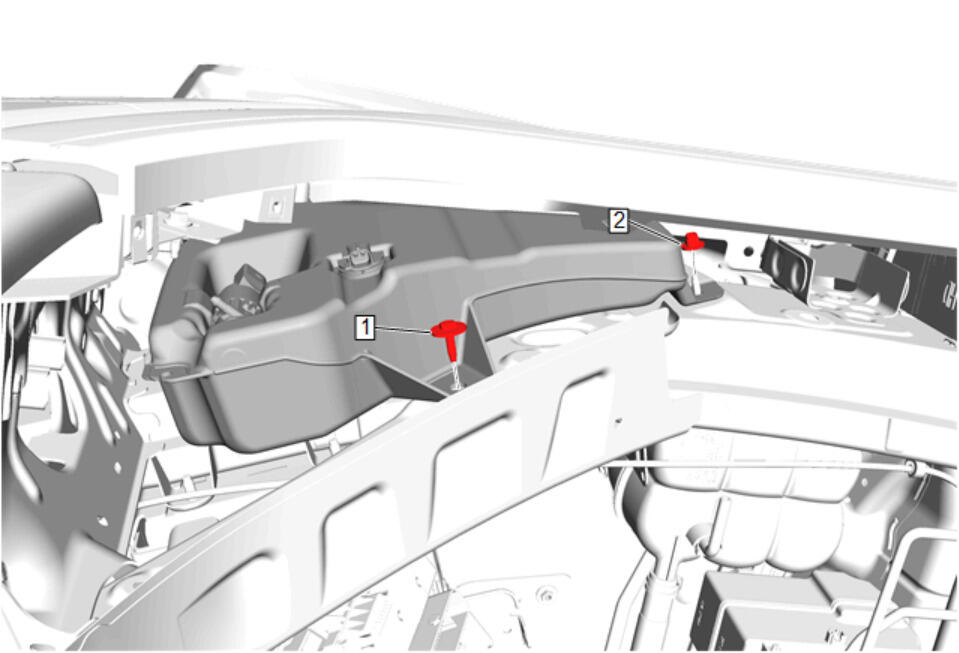

Windshield Washer Solvent Container Nut (2) - Install and tighten 9 N.m (80 lb in)
Windshield Washer Solvent Container Bolt (1) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

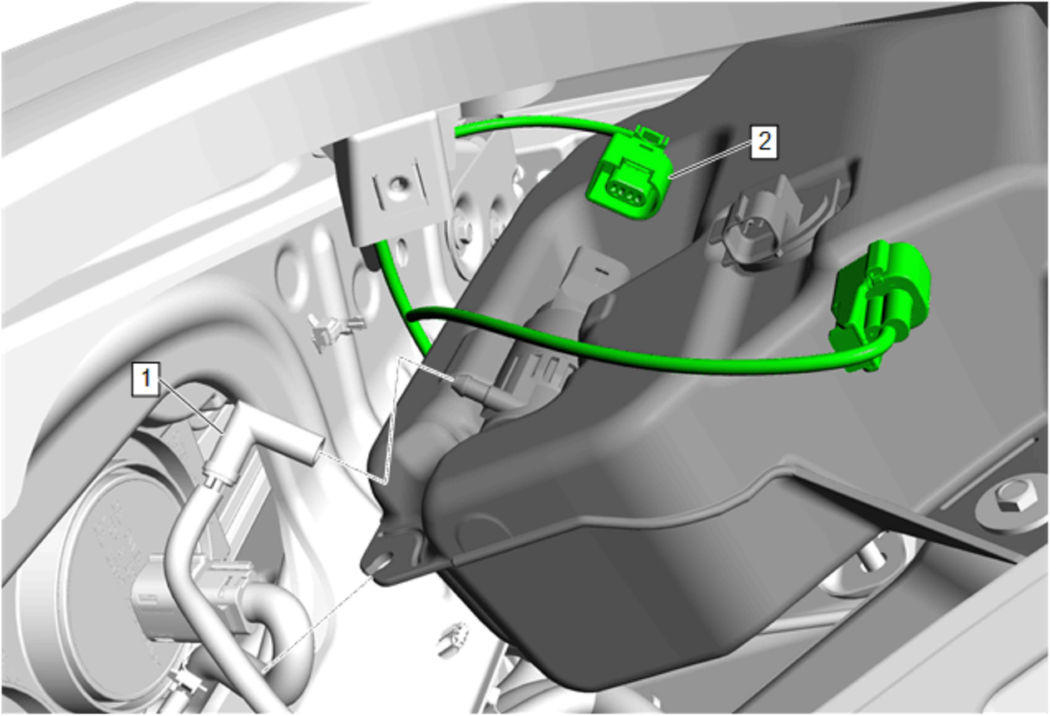

Connect the electrical connectors.
Windshield Washer Pump Hose (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

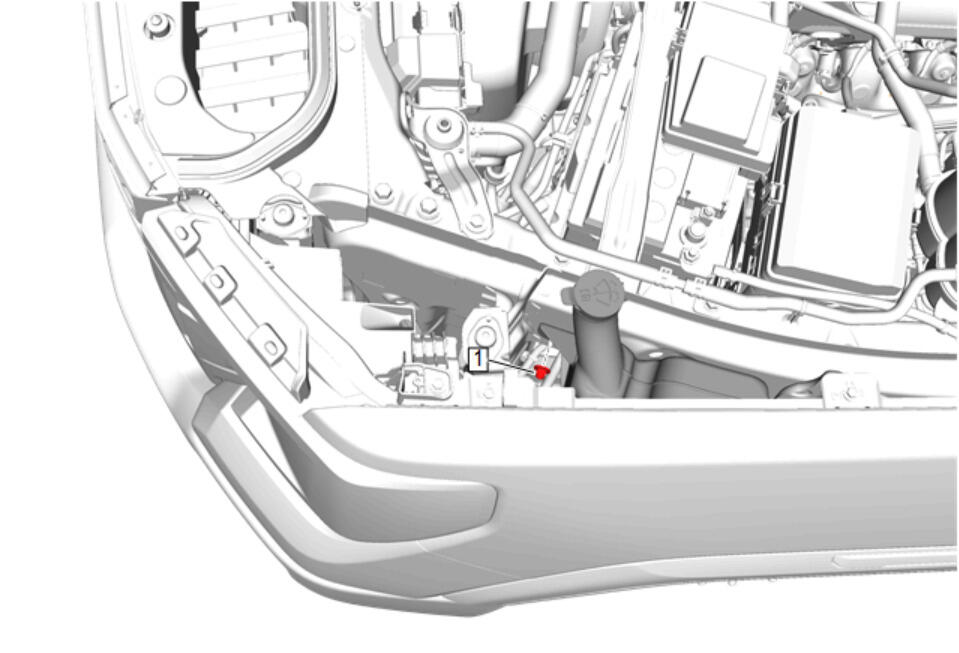

Windshield Washer Solvent Container Nut (1)Install and tighten 9 N.m (80 lb in)
Remove the drain pan.
Fill the windshield washer solvent container with windshield washer solvent and inspect for leaks.
Front Side Marker Lamp Wiring Harness - Install
Courtesy of GENERAL MOTORS COMPANY

Install the left side front wheelhouse liner (3). Front Wheelhouse Liner Replacement
