Windshield Washer Solvent Container Level Sensor Grommet Replacement

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Windshield Washer Solvent Container Level Sensor Replacement

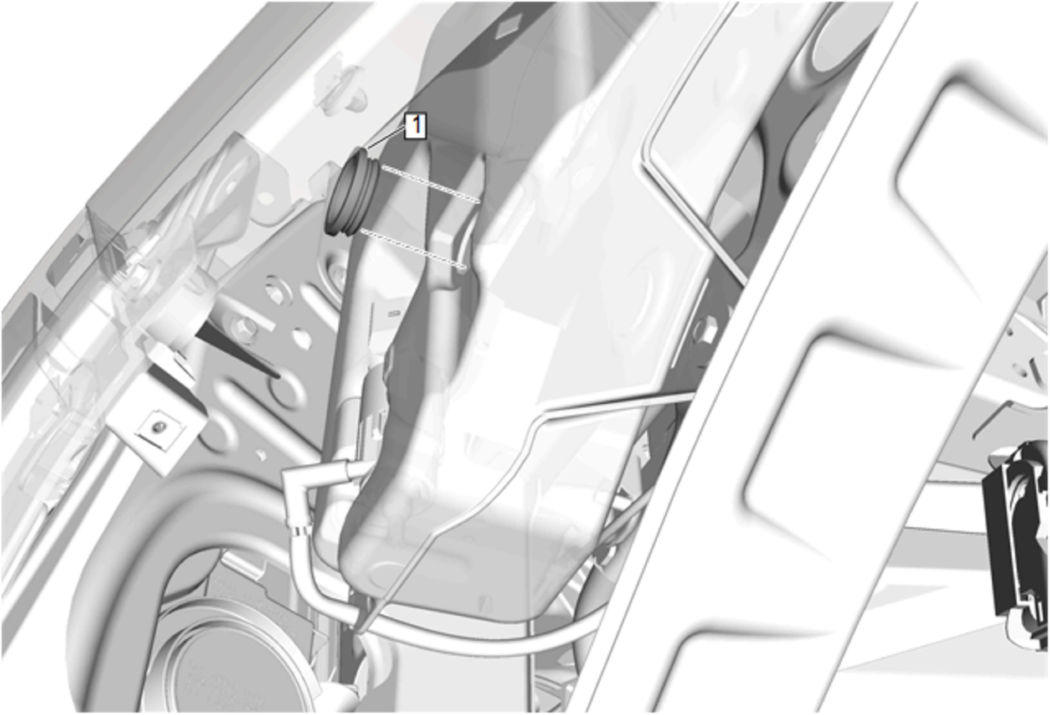

1	Windshield Washer Solvent Container Level Sensor Grommet Procedure Carefully squeeze the grommet while using a flat-bladed tool to pry upward under the edge of the grommet. When installing a NEW grommet, use full strength windshield washer fluid as a lubricant on the grommet. Push the grommet into the windshield washer solvent container until fully seated.

Callout

Component Name

Preliminary Procedure
Windshield Washer Solvent Container Level Sensor Replacement

Windshield Washer Solvent Container Level Sensor Grommet

Procedure

Carefully squeeze the grommet while using a flat-bladed tool to pry upward under the edge of the grommet.
When installing a NEW grommet, use full strength windshield washer fluid as a lubricant on the grommet.
Push the grommet into the windshield washer solvent container until fully seated.
