Installation Procedure

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

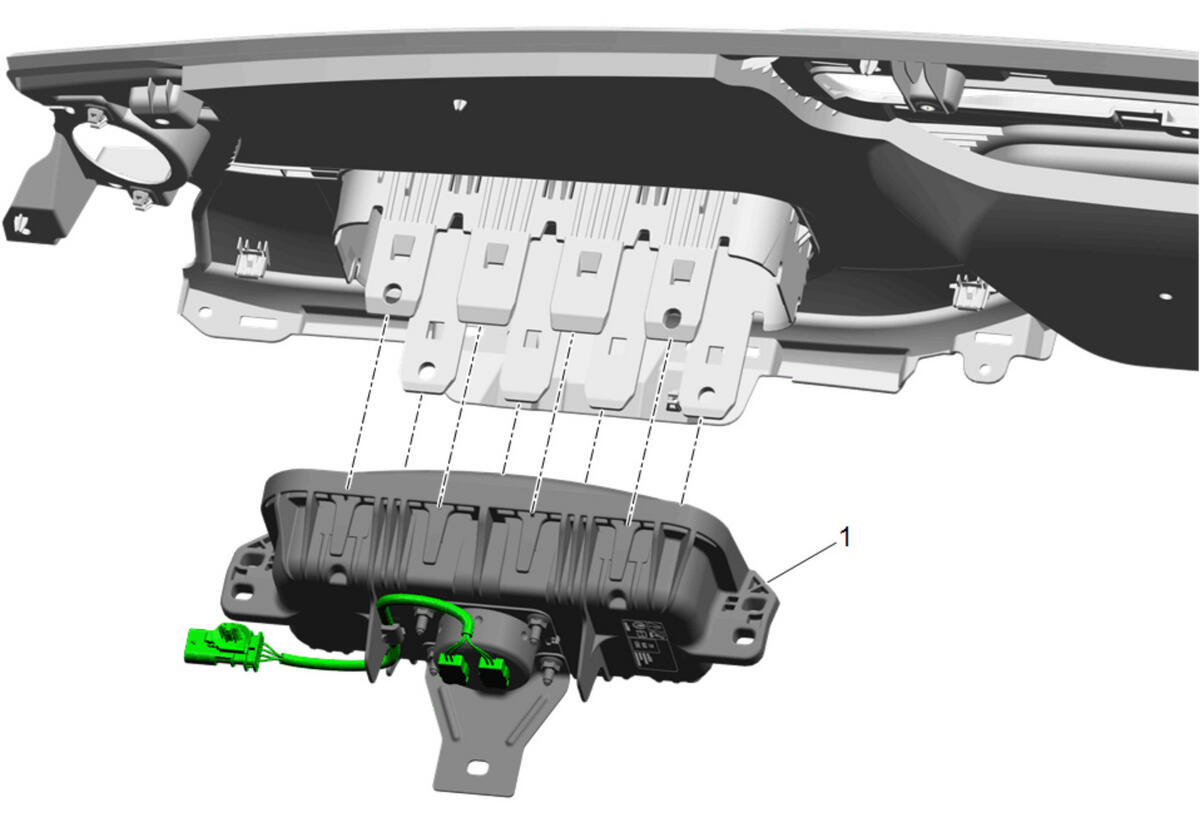

  1. GM5001964Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    When replacing the instrument panel, always install a NEW instrument panel airbag. Instrument panel airbag is a single use component.

    Instrument Panel Airbag (1) - Install NEW - Instrument Panel Airbag Replacement

  2. GM5028473Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel (1) - Install

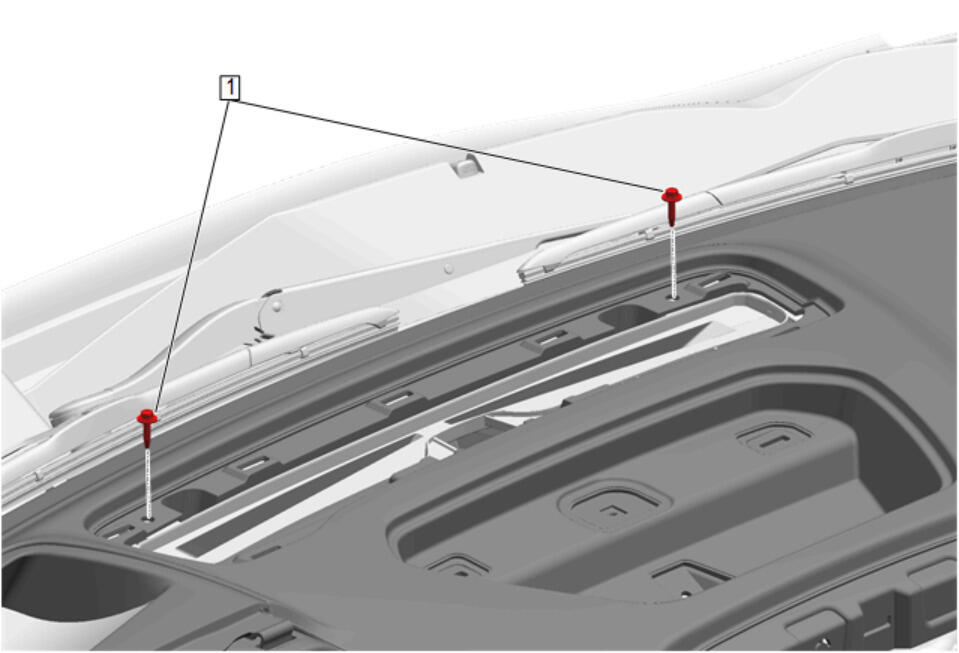

  3. GM5205655Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Upper Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb in)

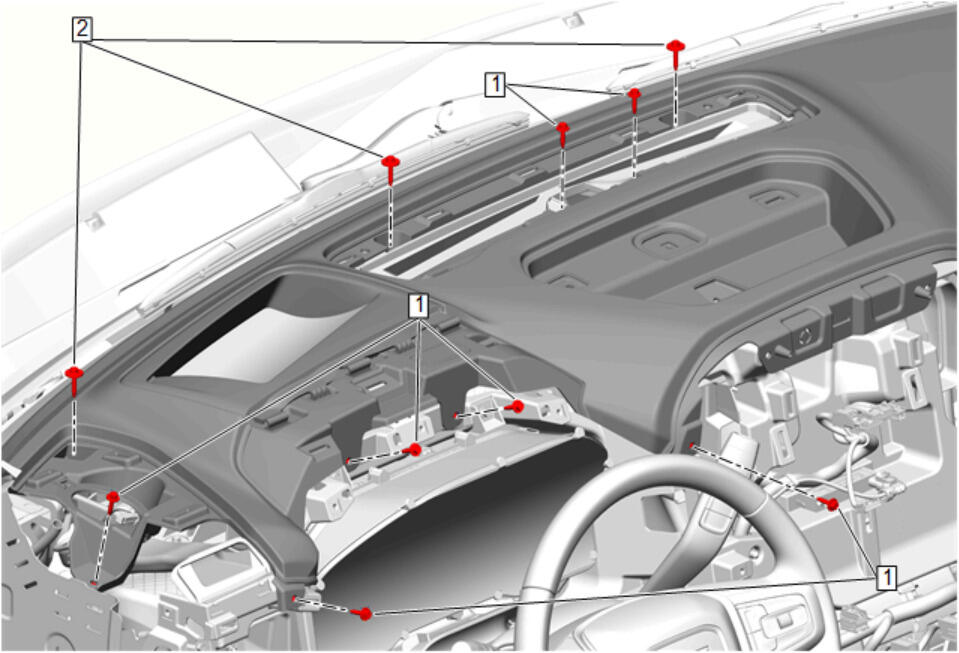

  4. GM5028471Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Bolt (1) - Install and tighten [ 7x ] 2.5 N.m (22 lb in)

  5. Instrument Panel Upper Trim Panel Bolt (2) - Install and tighten [ 3x ] 2.5 N.m (22 lb in)

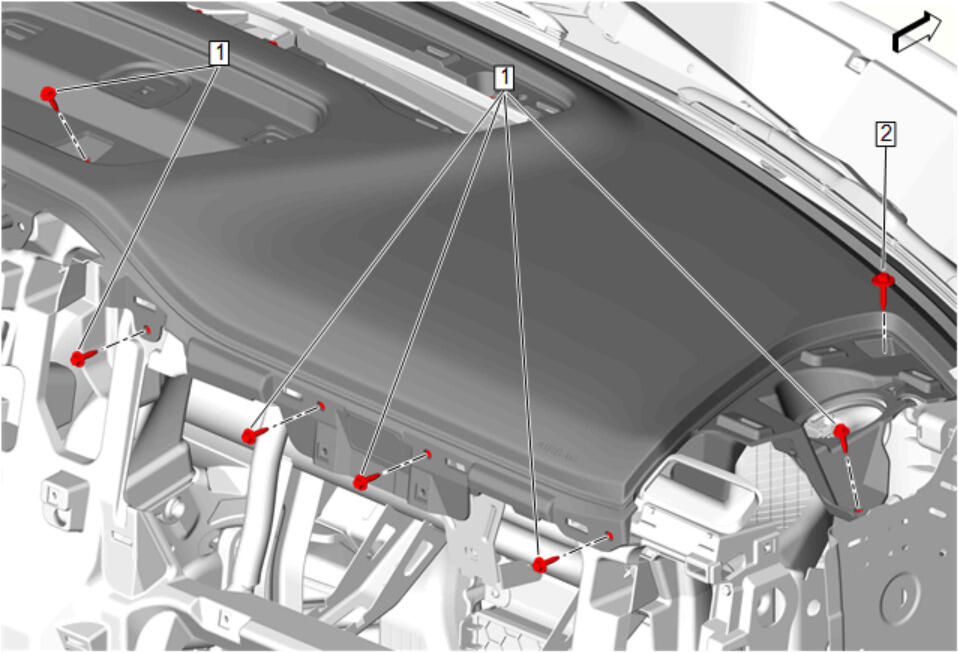

  6. GM5028470Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Bolt (1) - Install and tighten [ 6x ] 2.5 N.m (22 lb in)

  7. Instrument Panel Upper Trim Panel Bolt (2) Install and tighten 2.5 N.m (22 lb in)

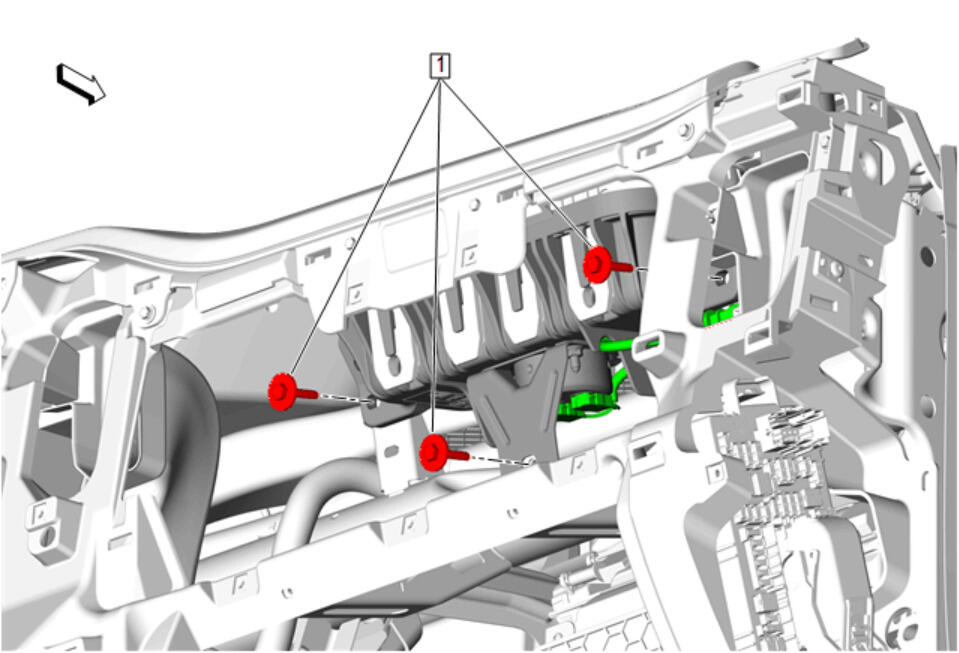

  8. GM5028467Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag Bolt (1) - Install and tighten [ 3x ] 9 N.m (80 lb in)

  9. Connect the instrument panel airbag electrical connector to the instrument panel harness.

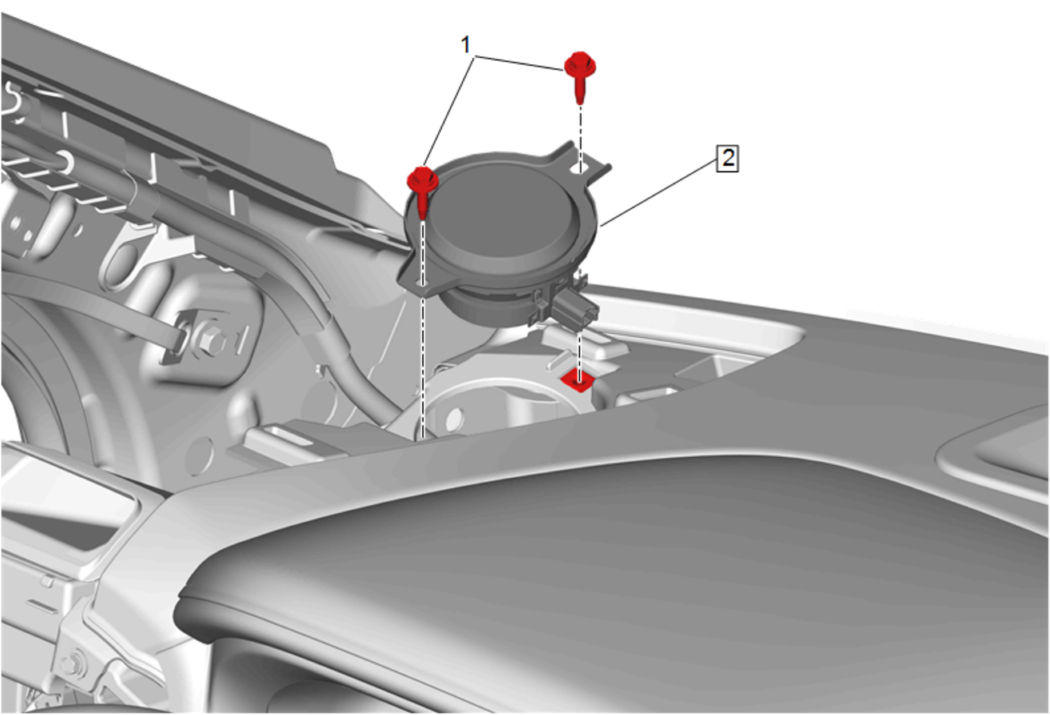

  10. GM5019957Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker-Left Side (2) - Install - Radio Front Speaker Replacement - Left Side

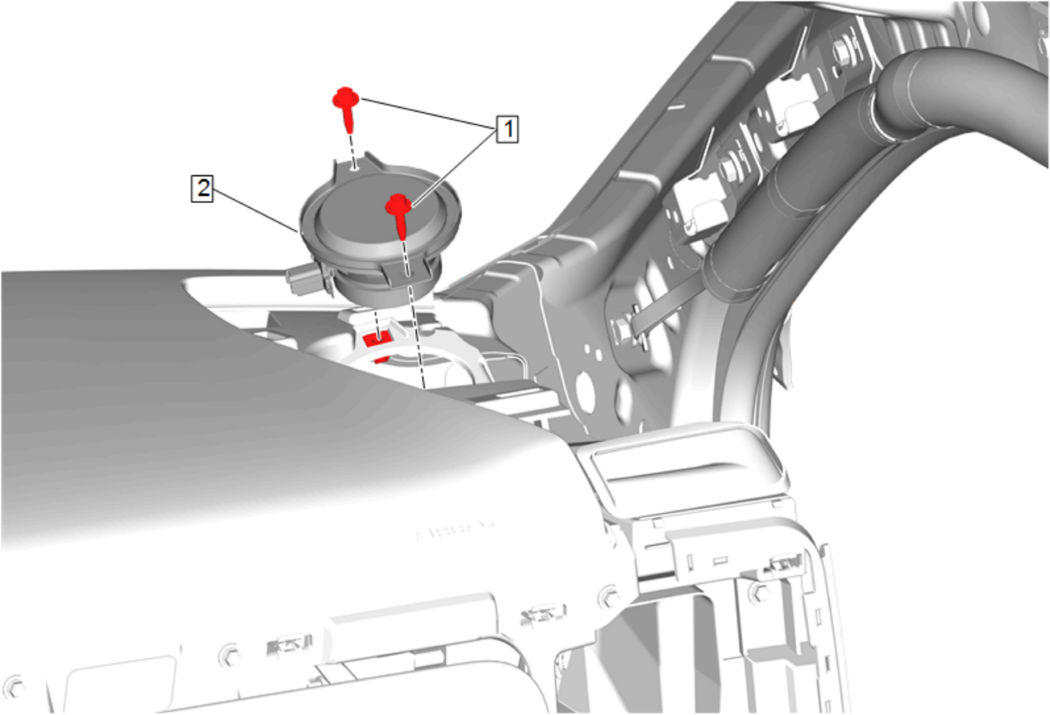

  11. GM5020549Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker-Right Side (2) - Install - Radio Front Speaker Replacement - Right Side

  12. GM5021410Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Stowage Tray (2) - Install - Instrument Panel Stowage Tray Replacement (with GFD)

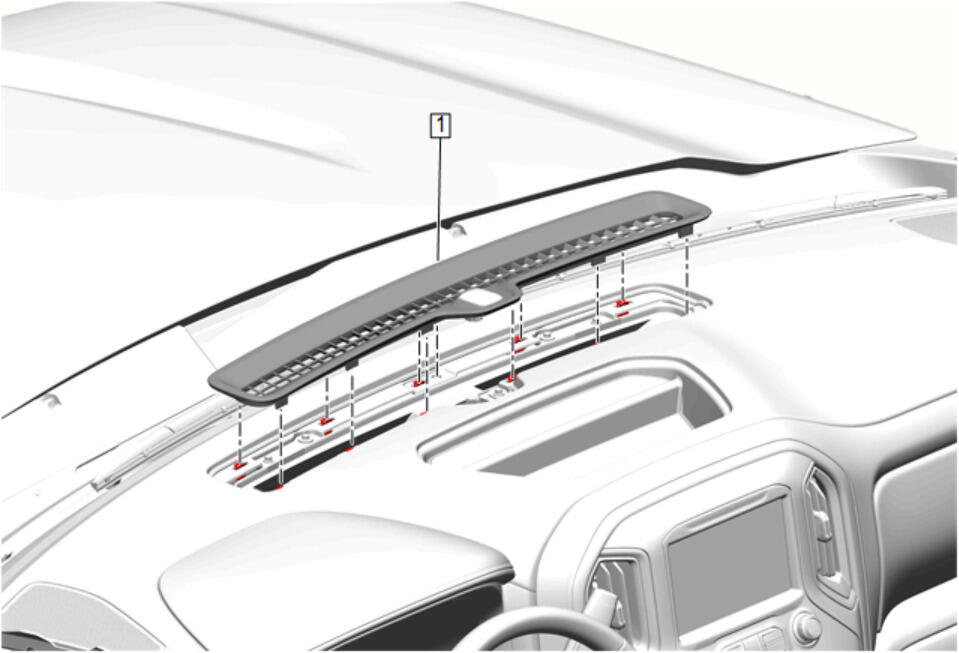

  13. GM5000221Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement

  14. GM5003859Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (2) - Install - Instrument Panel Cluster Trim Plate Replacement

  15. GM4997409Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Instrument Cluster Hood (1) - Install - Instrument Panel Instrument Cluster Hood Replacement

  16. GM5002581Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (2) - Install - Instrument Panel Trim Pad Replacement - Right Side

  17. GM4997063Courtesy of GENERAL MOTORS COMPANY

    { If equipped }Forward Collision Alert Display Bezel (1) - Install - Forward Collision Alert Display Bezel Replacement

  18. GM5000816Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (2) - Install - Instrument Panel Trim Pad Replacement - Left Side
