Installation Procedure
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

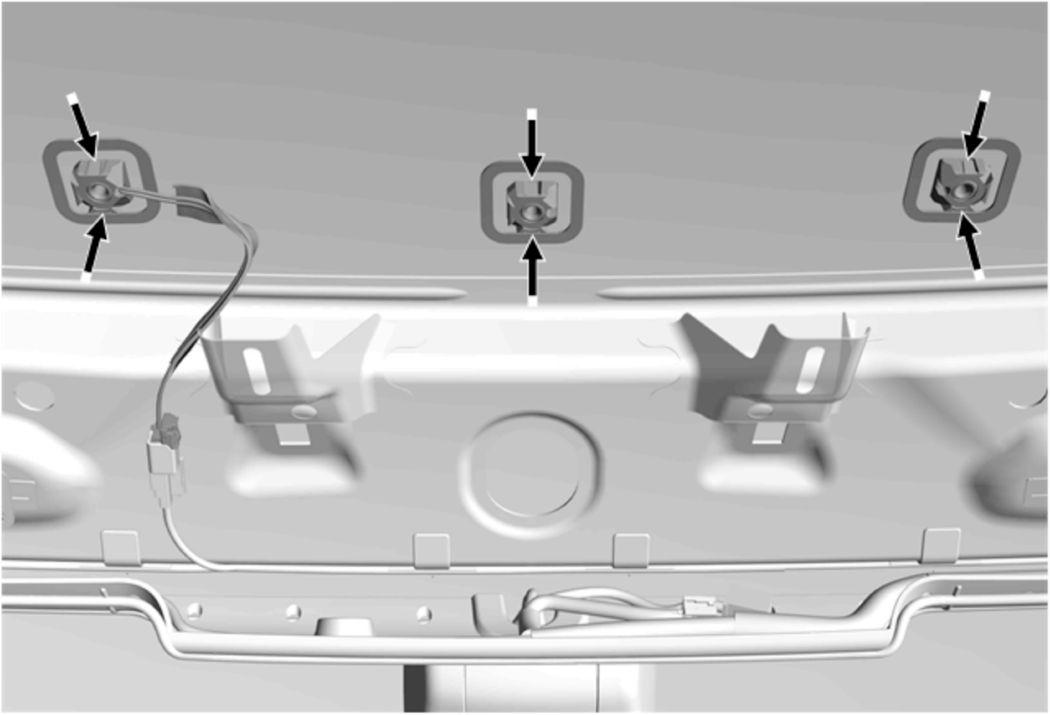

- Front Identification Lamp (1) - Install
- Secure the retaining tabs.
- Front Identification Lamp Bracket (2) - Install [3x]CAUTION:
Refer to Fastener Caution .
- Front Identification Lamp Bolt (1) - Install and tighten [3x] 9N.m (80 lb in)
- Roof Console - Install - Roof Console Replacement
