Installation Procedure
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Brake Pedal Position Sensor (2) - InstallCAUTION:
Refer to Fastener Caution .
- Brake Pedal Position Sensor Bolt (1) - Install and tighten 3 N.m (27 lb in)
- Brake Pedal Position Sensor Electrical Connector (1) - Connect
- Body Control Module (1) - Install
- Secure the retaining tabs.
- Connect the electrical connectors.
- Instrument Panel Lower Trim Panel Insulator (1) - Install

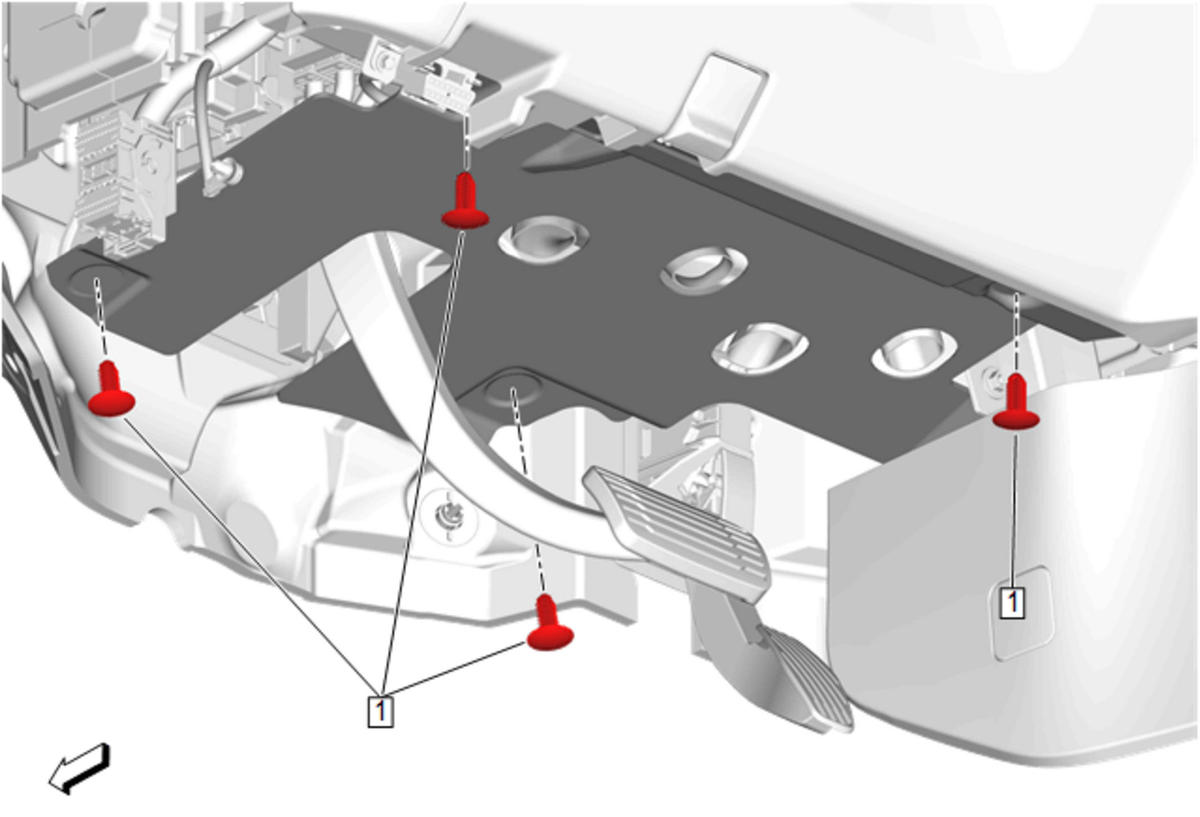

- Instrument Panel Lower Insulator Retainer (1) - Install [4x]
- Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
