Front Axle Propeller Shaft
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

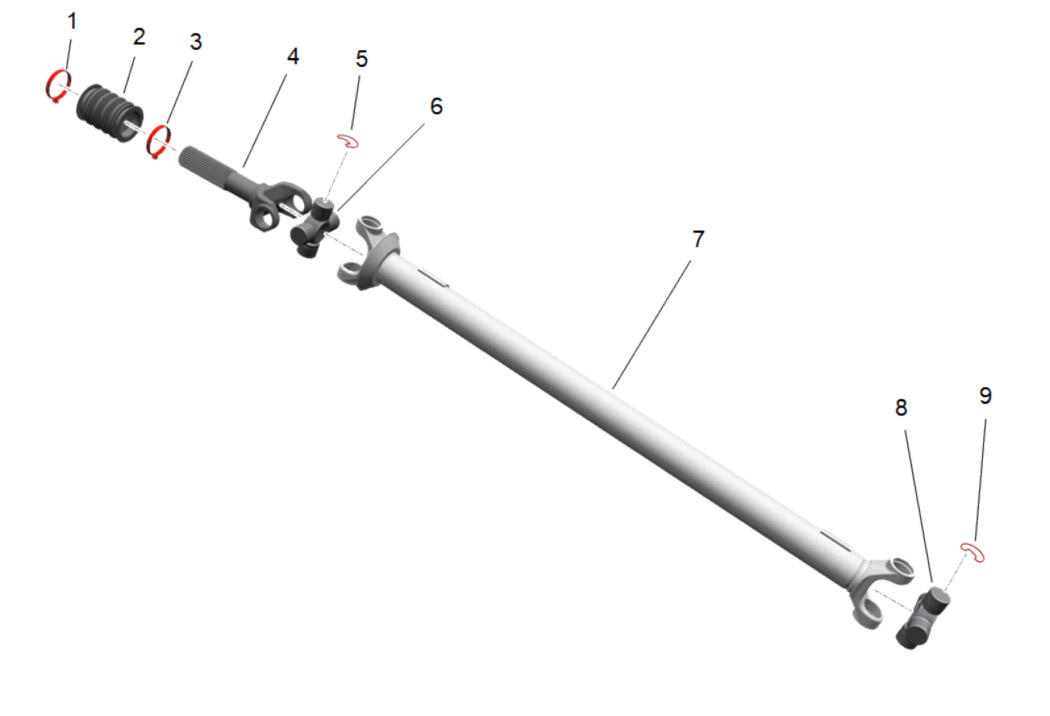

| Callout | Component Name |
|---|---|
| 1 | Front Axle Propeller Shaft Slip Yoke Boot Clamp |
| 2 | Front Axle Propeller Shaft Slip Yoke Boot |
| 3 | Front Axle Propeller Shaft Slip Yoke Boot Clamp |
| 4 | Front Axle Propeller Shaft Slip Yoke |
| 5 | Propeller Shaft Universal Joint Spider Bearing Retaining Ring [ 4x ] |
| 6 | Propeller Shaft Universal Joint |
| 7 | Front Axle Propeller Shaft |
| 8 | Propeller Shaft Universal Joint |
| 9 | Propeller Shaft Universal Joint Spider Bearing Retaining Ring [ 2x ] |
