Lifting and Jacking the Vehicle: Jacking
WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
When you are lifting a vehicle with a vehicle jack or a floor jack, block the wheels at the opposite end from which you are lifting. Use jack stands to provide additional support.

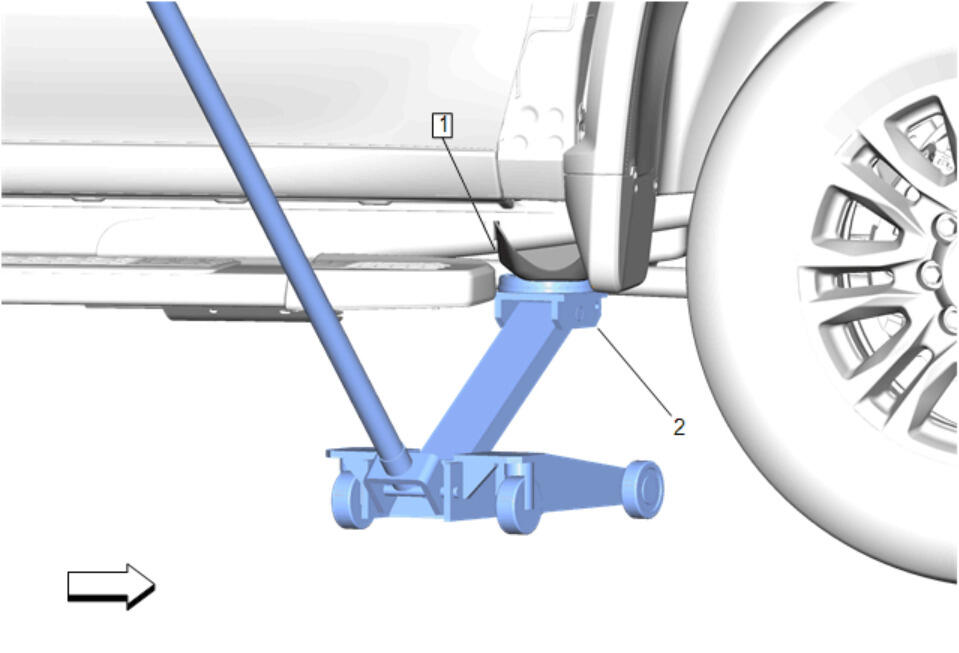

Under the Frame Rails (Front)
NOTE:
The floor jack pad must not contact the rocker panel or the floor pan.
Position the floor jack pad (1) under the frame rail pad (2).

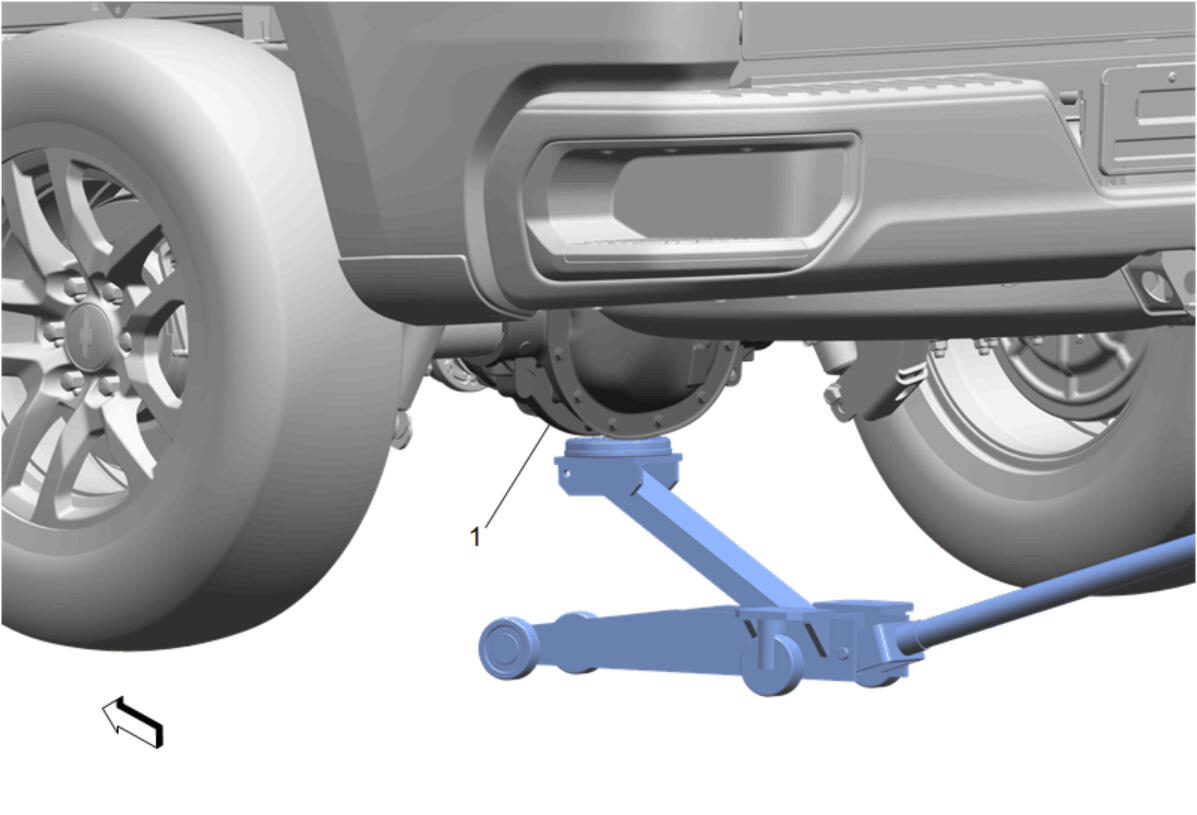

Under the Rear Differential
Position the floor jack pad under the center of the rear axle differential (1).

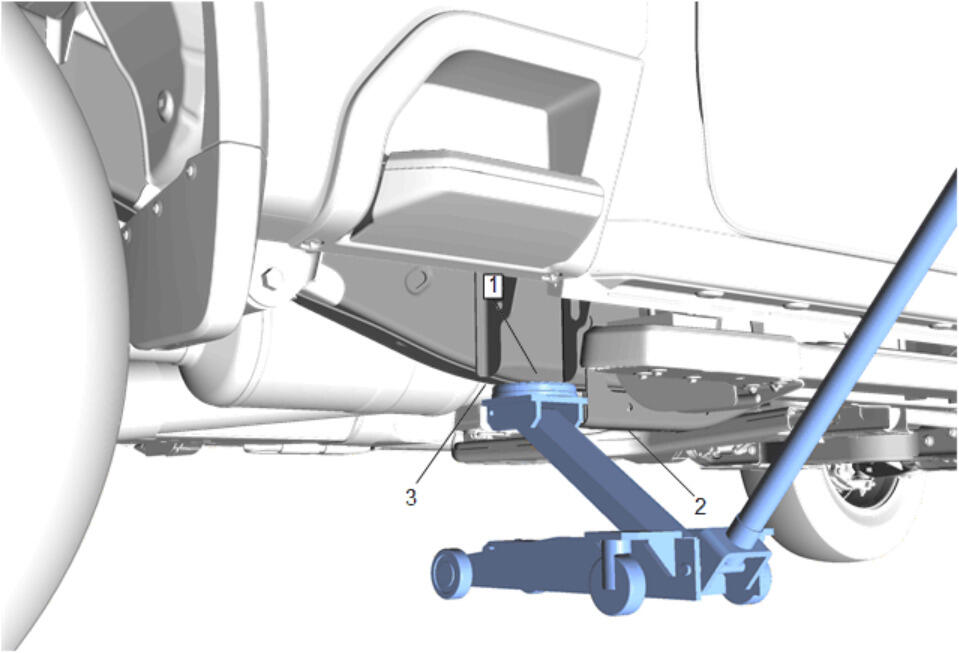

Under the Frame Rail (Rear)
Position the jack (1) under the rear frame lift point, between the fuel tank protector (2) and the rear frame kick up section (3).
