Front Parking Assist Alarm Sensor Bracket Replacement: Notes

WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Parking Assist Alarm Sensor (1) - Remove - Front Parking Assist Alarm Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

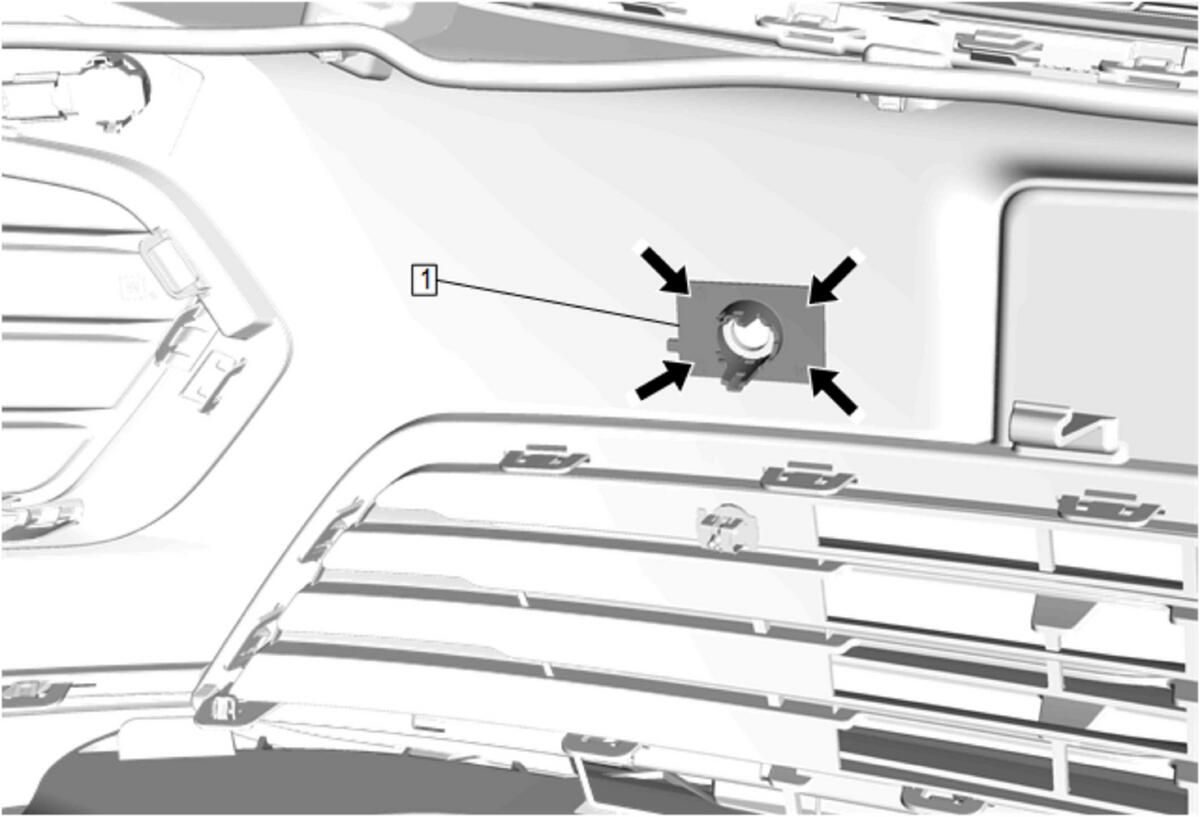

Using a flat bladed tool carefully remove the bracket (1) from the fascia.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do Not sand off alignment tabs/outline.
Using an appropriate tool sand/grind sonic weld plastic residue from the fascia (1).
