Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

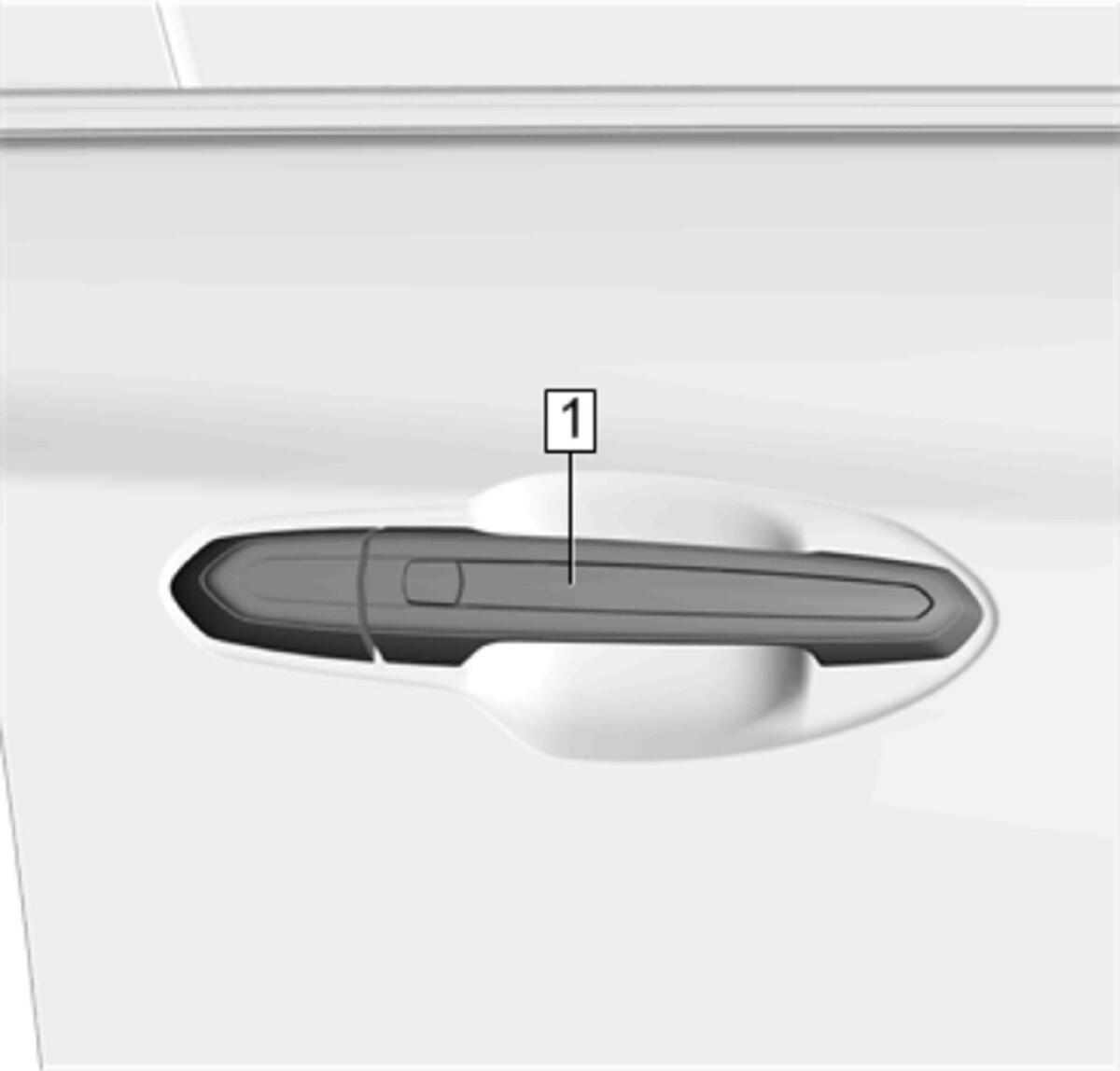

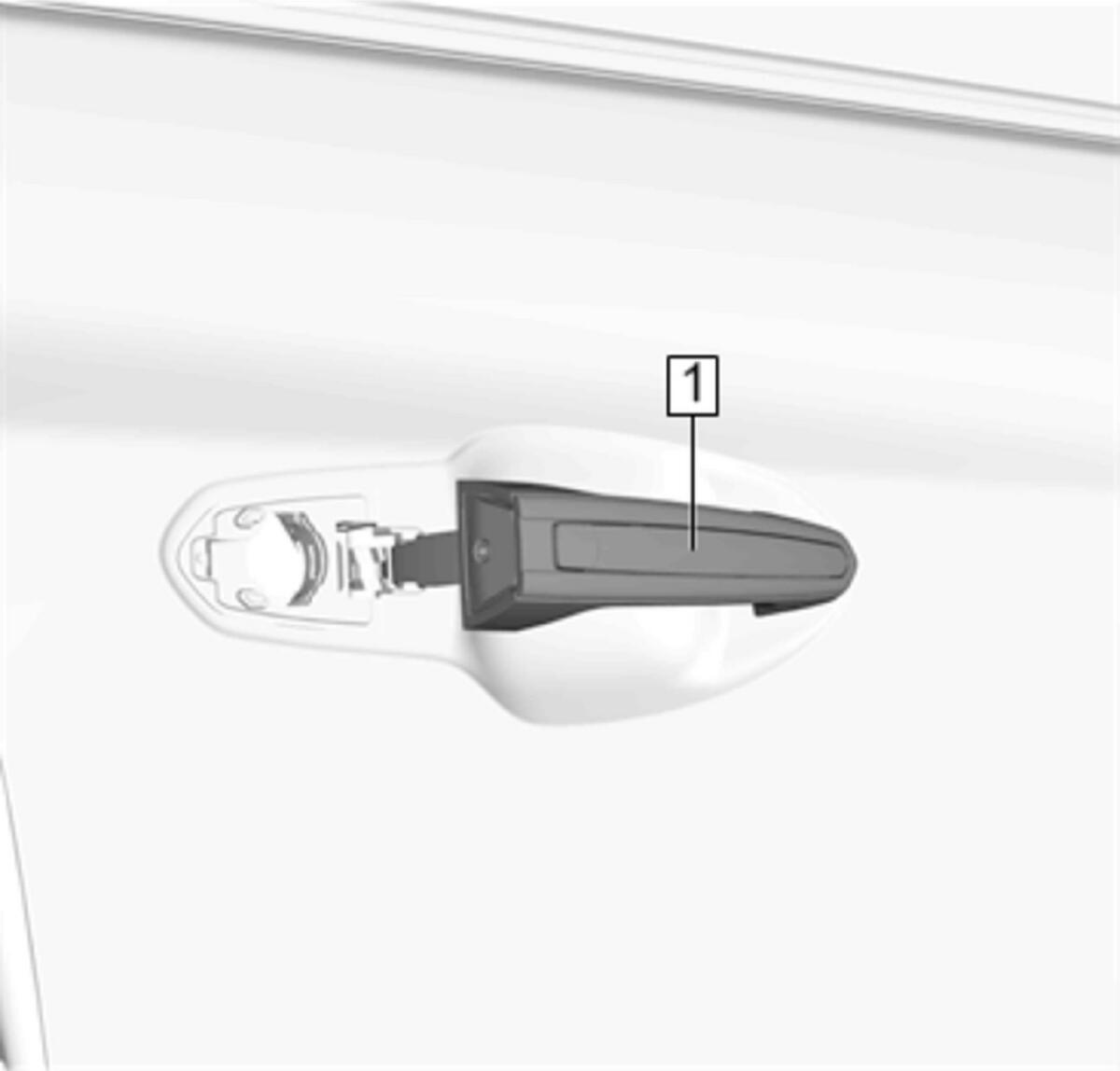

Pull the door handle (1) out to the open position.
Courtesy of GENERAL MOTORS COMPANY

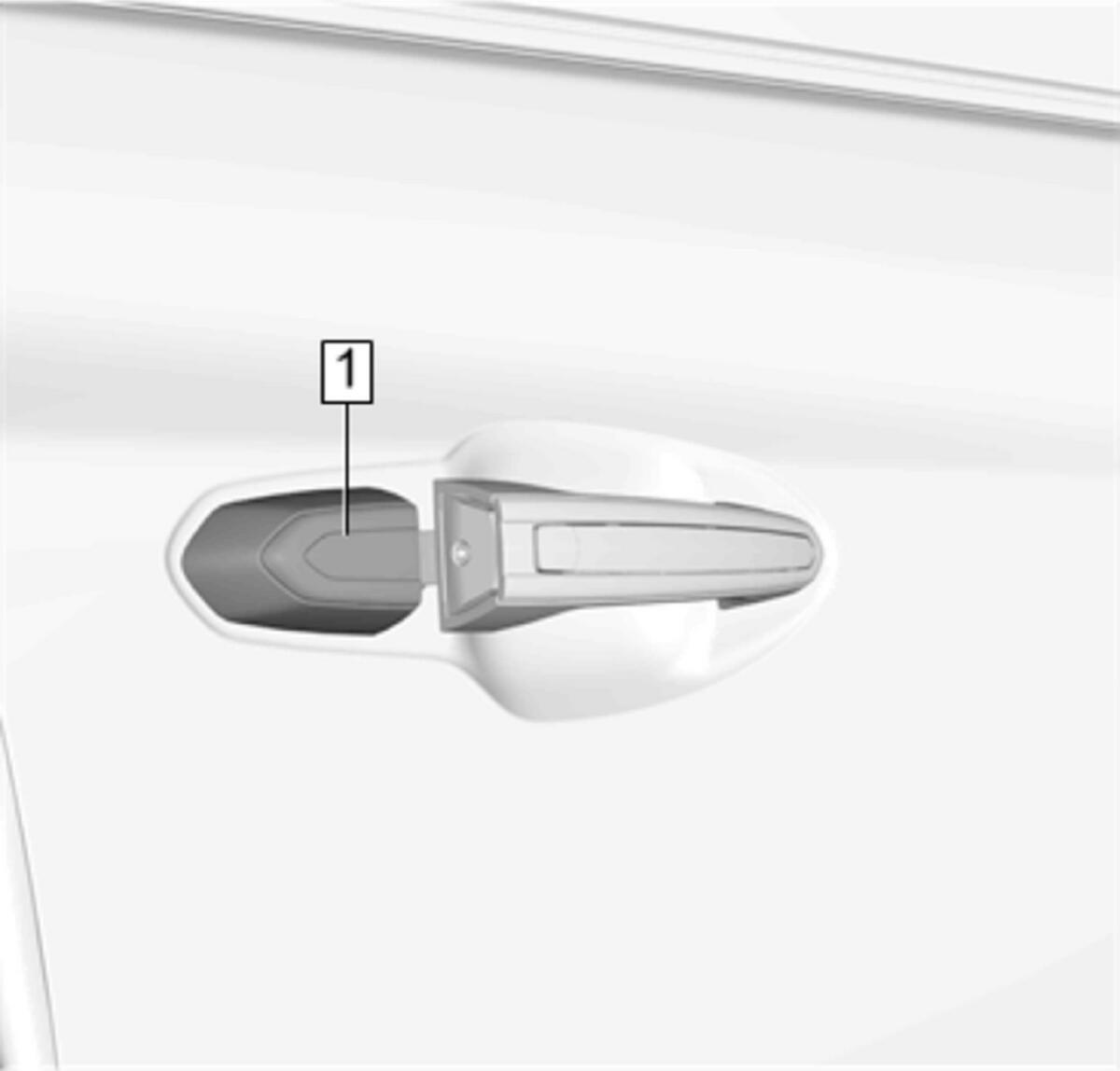

Front Side Door Lock Cylinder Opening Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Place the front side door outside handle (1) in the closed position.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front side door outside handle lock cylinder cover screw (2) - Tighten 4 N.m (31 lb in)
Front Side Door Access Hole Cover (1) - Install
