Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

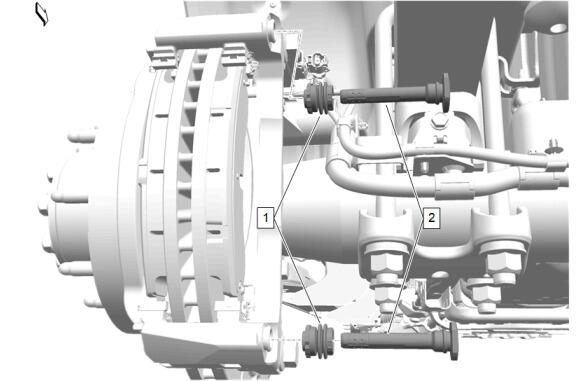

Rear Brake Caliper Guide Pin Boot (1) - Install [2x]
- Rear Brake Caliper Guide Pin (2) - Install [2x]

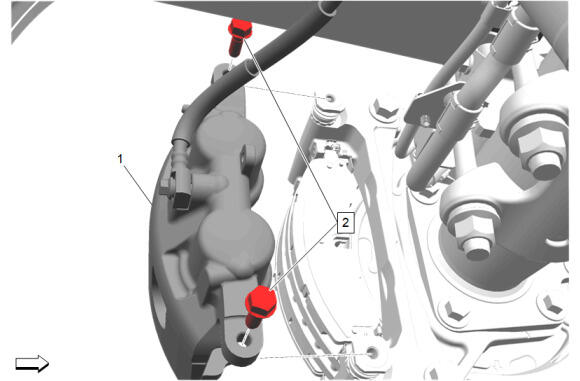

Rear Brake Caliper (1) - Install
- Rear Brake Caliper Guide Pin Bolt (2) - Install and tighten [2x] - Fastener Specifications

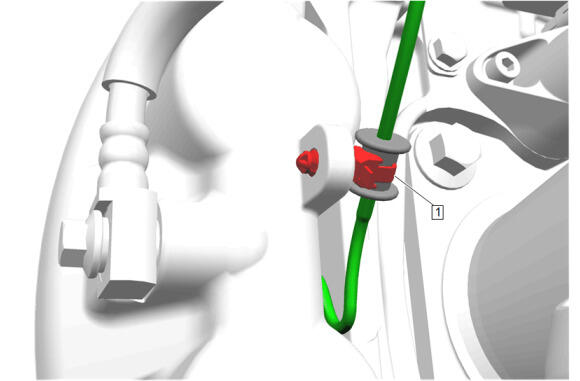

Rear Disc Brake Pad Wear Sensor Wiring Harness Retainer (1) - Install
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation (Rear with DZW) , or Tire and Wheel Removal and Installation (SRW)
CAUTION:
NOTE:
DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.
