Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Front disc brake pad wear sensor heads are brittle and should be handled with care when installing.

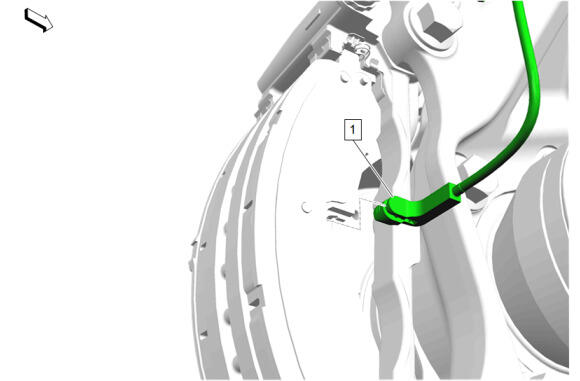

Front Disc Brake Pad Wear Sensor (1) - Install
Front Brake Caliper (1) - Install
- Front Brake Caliper Guide Pin Bolt (2) - Install and tighten [2x] - Fastener Specifications
Front Disc Brake Pad Wear Sensor Retainer (1) @Front Brake Caliper - Install
- Connect the electrical connector. (2)
- Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation (Front with DZW) , or Tire and Wheel Removal and Installation (Rear with DZW) , or Tire and Wheel Removal and Installation (SRW)
- Using a scan tool, relearn the front disc brake pad wear sensor. Brake Pad Life Monitoring Reset
