Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

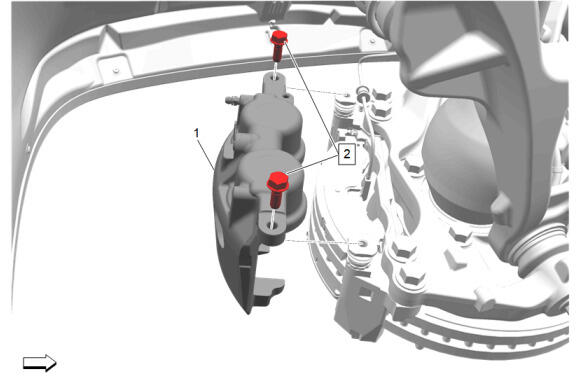

Front Brake Caliper (1) - Install
- Front Brake Caliper Guide Pin Bolt (2) - Install and tighten [2x] - Fastener Specifications
Front Disc Brake Pad Wear Sensor (1) @Front Brake Caliper - Install
- Remove the plug from the brake hose outlet.
- Remove the plug the front brake caliper inlet.

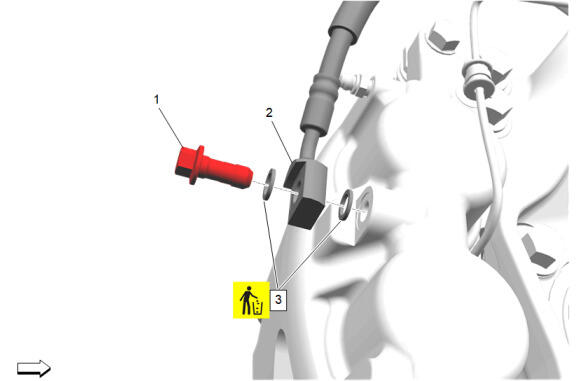

Front Brake Hose Washer (3) - Install NEW [2x]
- Front Brake Hose (2) @Front Brake CaliperInstall
- Front Brake Hose Fitting Bolt (1) - Install and tighten - Fastener Specifications
- Bleed the brake system. Hydraulic Brake System Bleeding
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Front with DZW) , or Tire and Wheel Removal and Installation (SRW)
CAUTION:
NOTE:
DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.
