Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.

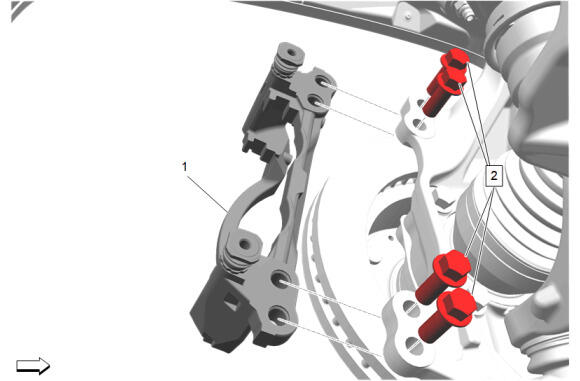

- Front Brake Caliper Bracket (1) - Install
- Front Brake Caliper Bracket Bolt (2) - Install and tighten [4x] - Fastener Specifications
Front Disc Brake Pad Retaining Spring (1) - Install [4x]
Front Disc Brake Outer Pad (1) - Install
- Front Disc Brake Inner Pad (2) - Install
Front Disc Brake Pad Wear Sensor (1) - Install
Front Brake Caliper (1) - Install
- Front Brake Caliper Guide Pin Bolt (2) - Install and tighten [2x] - Fastener Specifications
Front Disc Brake Pad Wear Sensor (1) @Front Brake Caliper - Install
- Connect the electrical connector. (2)
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Front with DZW) , or Tire and Wheel Removal and Installation (SRW)
CAUTION:
NOTE:
DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.
