Windshield Washer Pump Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Removal and Installation Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the washer pump hose is disconnected.

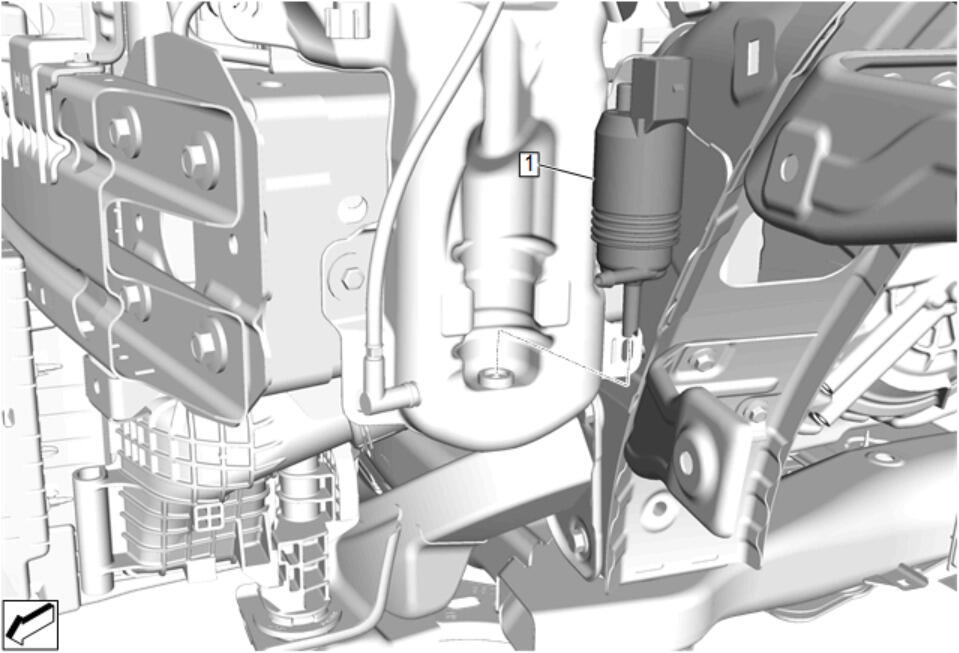

1	Windshield Washer Pump NOTE: Install a NEW grommet. Do NOT reuse old grommet. Procedure Disconnect the electrical connector. Disconnect the windshield washer pump hose. Using the appropriate tools, place under each side of the windshield washer pump, twist and lift in opposite directions to disengage the pump from the windshield washer solvent container and grommet.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Removal and Installation
Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the washer pump hose is disconnected.

Windshield Washer Pump

NOTE:

Install a NEW grommet. Do NOT reuse old grommet.

Procedure

Disconnect the electrical connector.
Disconnect the windshield washer pump hose.
Using the appropriate tools, place under each side of the windshield washer pump, twist and lift in opposite directions to disengage the pump from the windshield washer solvent container and grommet.
