Installation Procedure

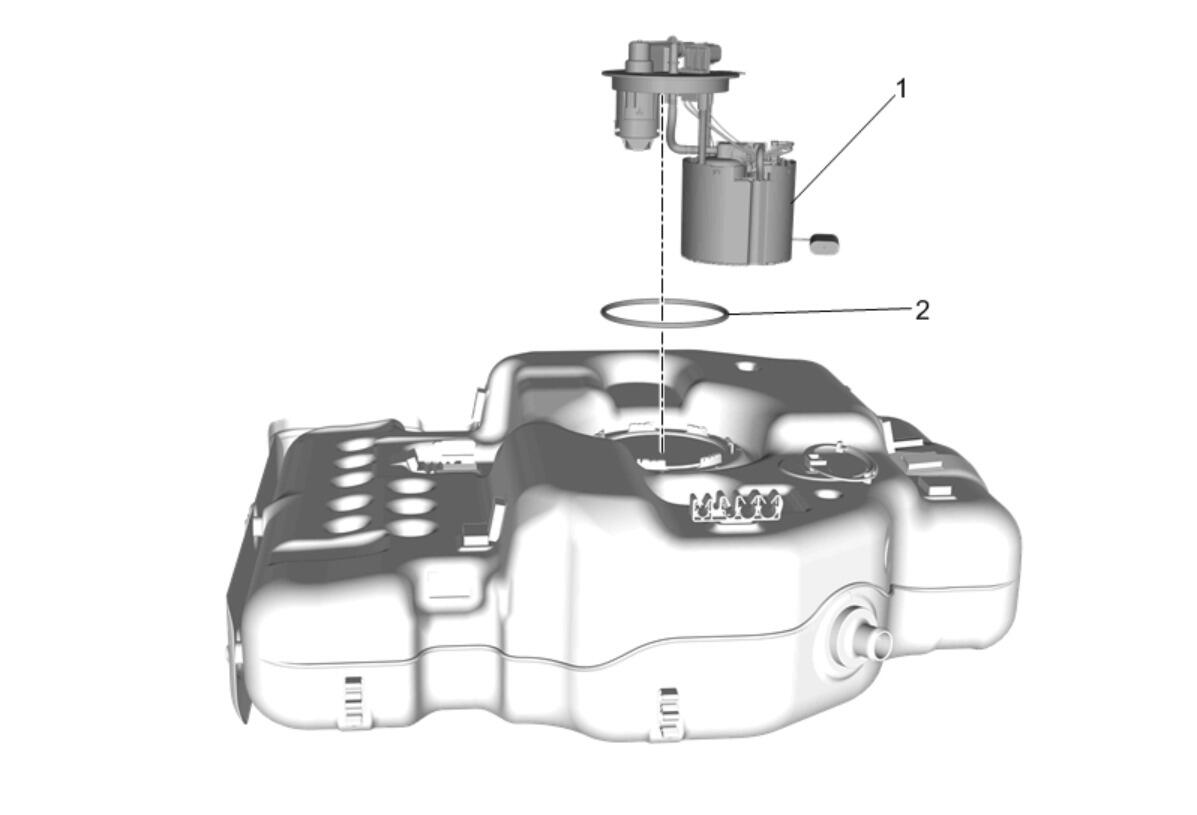

  1. GM5169641Courtesy of GENERAL MOTORS COMPANY

    O-Ring (2) - Install NEW

  2. Fuel Tank Fuel Pump Module (1) - Install

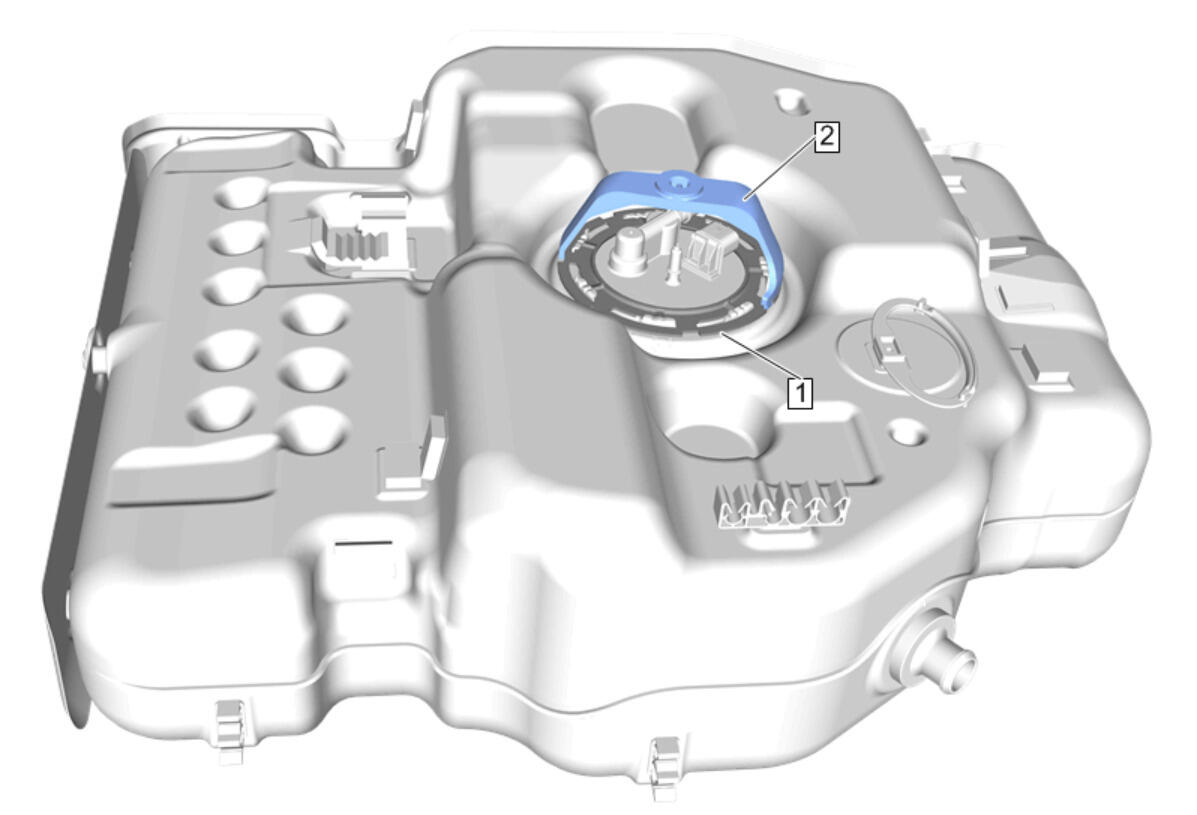

  3. GM5169632Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Lock Ring (1) - Install - CH - 45722  Fuel Sender Lock Ring Wrench (2)

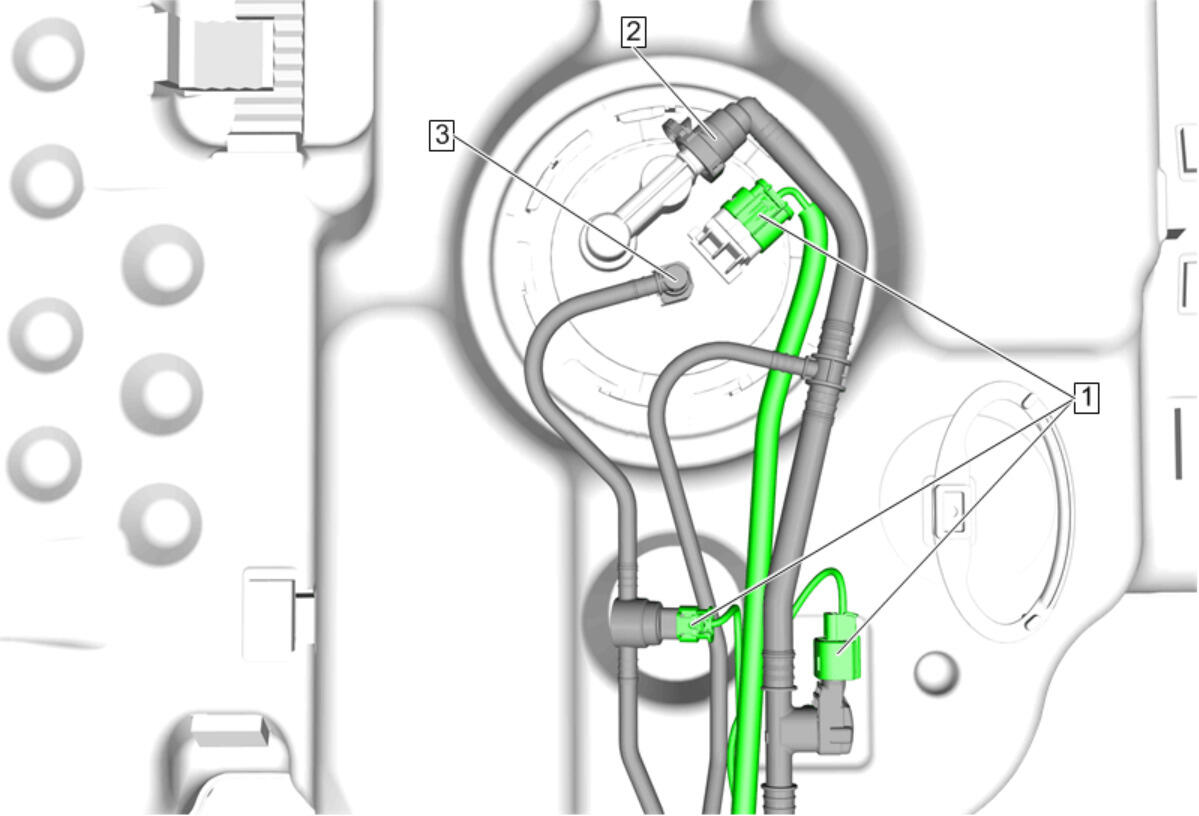

  4. GM5169602Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Feed Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service

  5. Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  6. Electrical Connector (1) - Connect [ 3x ]
  7. Fuel Tank - Install - Fuel Tank Replacement (FWD) , or Fuel Tank Replacement (AWD)
