Engine Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

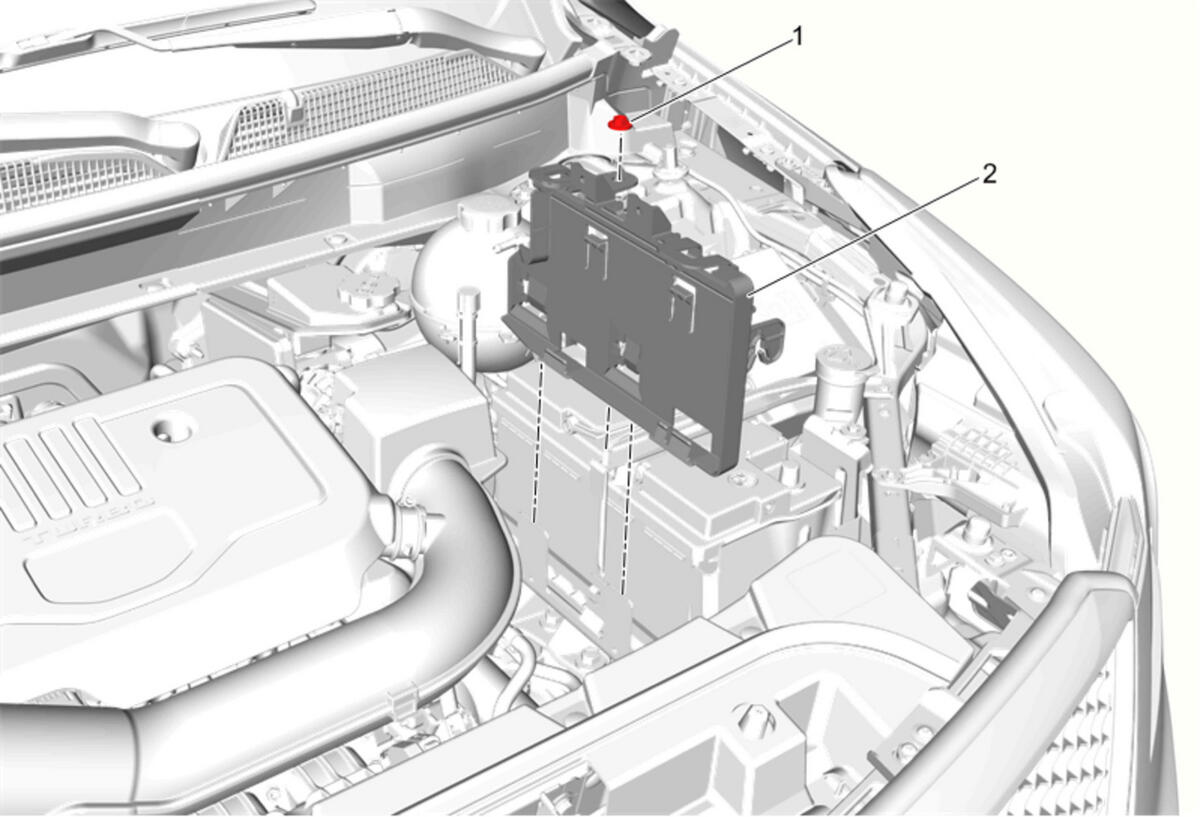

Callout	Component Name
Preliminary Procedures Radiator Surge Tank Inlet Hose @ Engine Control Module Bracket - Reposition away - Radiator Surge Tank Inlet Hose Replacement (LSY) , or Radiator Surge Tank Inlet Hose Replacement (LGX From Surge Tank To Radiator and Pipe) , or Radiator Surge Tank Inlet Hose Replacement (Radiator Surge Tank Outlet Pipe to Engine Coolant Air Bleed Pipe, LGX) . Engine Control Module Replacement
1	Engine Control Module Bracket Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb/in)
2	Engine Control Module Bracket

Callout

Component Name

Preliminary Procedures

Engine Control Module Bracket Nut

CAUTION:

Tighten
9 N.m (80 lb/in)

Engine Control Module Bracket
