Removal Procedure

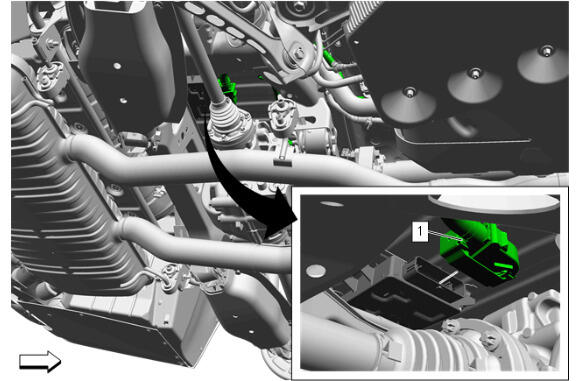

  1. GM5471859Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect

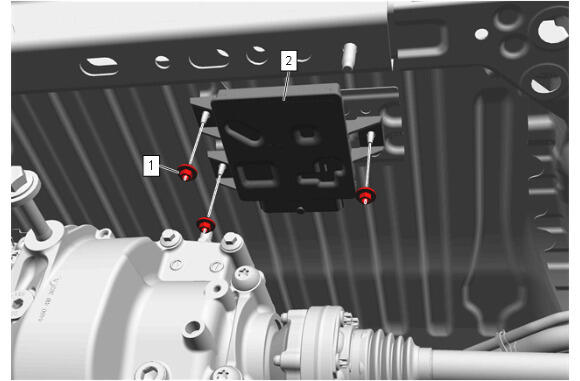

  2. GM5471863Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module Nut (1) - Remove [ 3x ]

  3. Fuel Pump Power Control Module (2) - Remove
