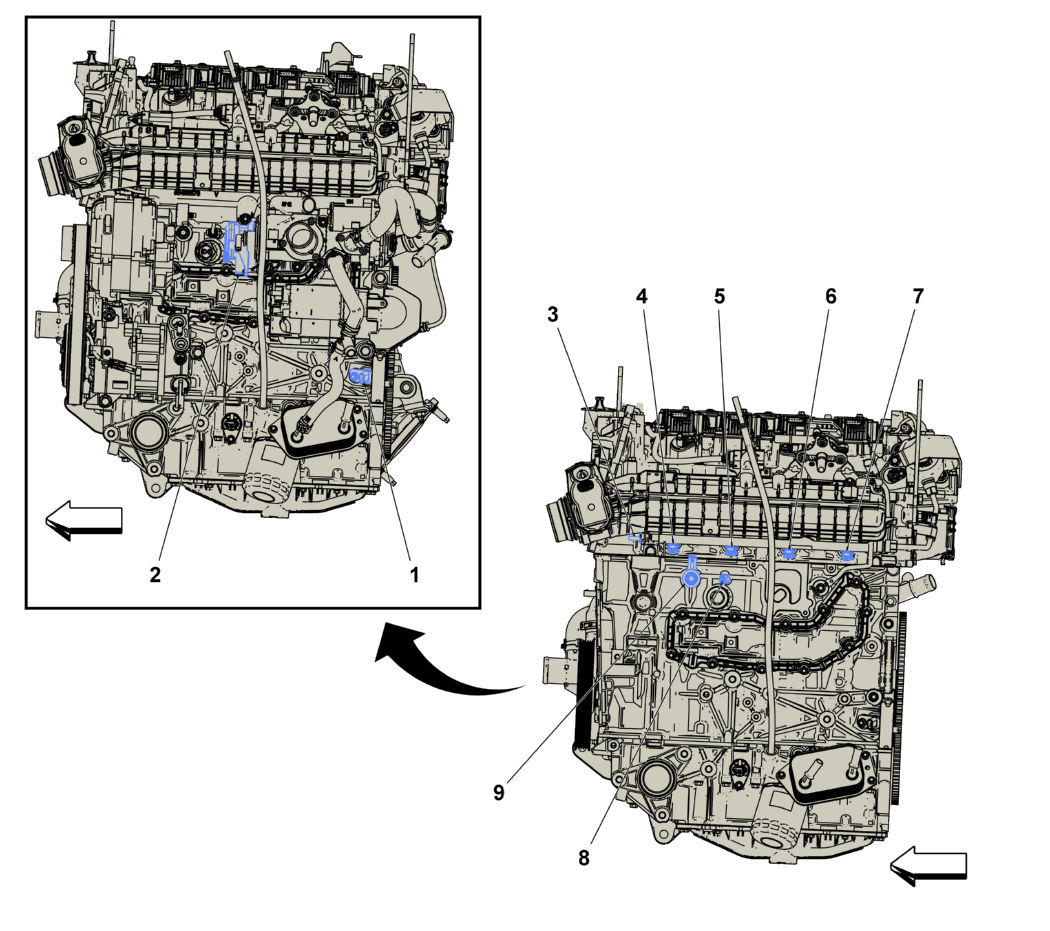

Left Side of Engine (LSY)
NOTE:
Callouts in the following chart represent components shown in graphic above.
Left Side of Engine (LSY)
| Harness Name | Callout |
|---|---|
| B26 Crankshaft Position Sensor (LSY) \B26 Crankshaft Position Sensor (LSY) | 1 |
| Q97 Engine Coolant Flow Control Valve (LSY) Q97B Engine Coolant Flow Control Valve - Block (LSY) | 2 |
| B310 Fuel Pressure and Temperature Sensor \B310 Fuel Pressure and Temperature Sensor (LSY) | 3 |
| Q17A Fuel Injector 1 \Q17A Fuel Injector 1 (LSY) | 4 |
| Q17B Fuel Injector 2 \Q17B Fuel Injector 2 (LSY) | 5 |
| Q17C Fuel Injector 3 \Q17C Fuel Injector 3 (LSY) | 6 |
| Q17D Fuel Injector 4 \Q17D Fuel Injector 4 (LSY) | 7 |
| B34D Engine Coolant Temperature Sensor 4 B34D Engine Coolant Temperature Sensor 4 (LSY) | 8 |
| B68A Knock Sensor 1 \B68A Knock Sensor 1 (LSY) | 9 |
