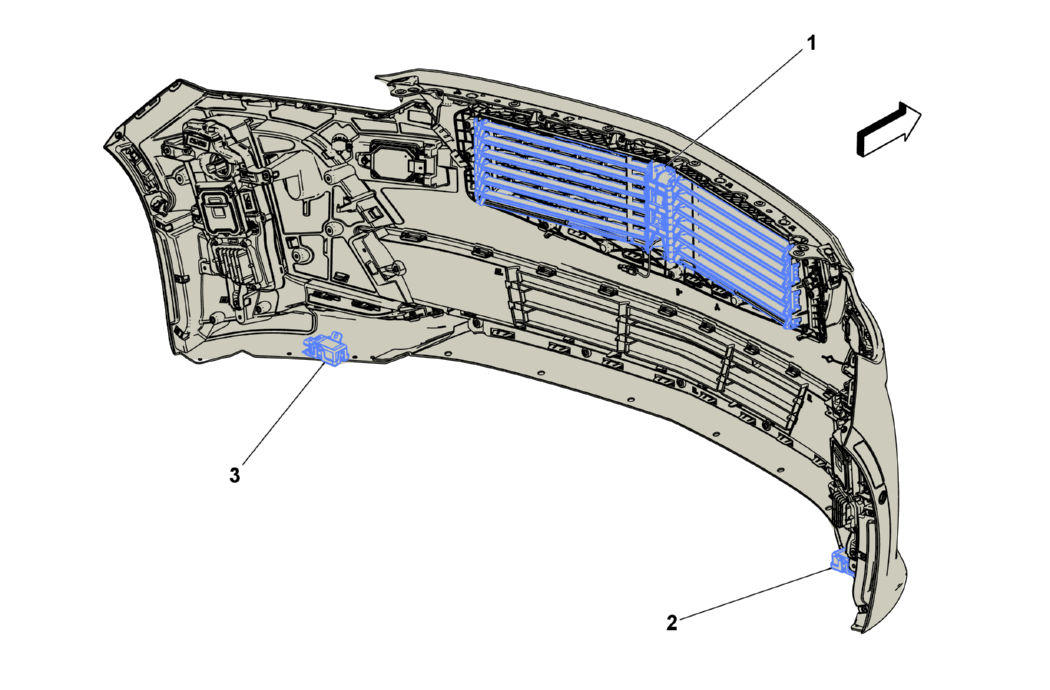

Back of Front Fascia Components
NOTE:
Callouts in the following chart represent components shown in graphic above.
Back of Front Fascia Components
| Component Name | Callout |
|---|---|
| M96 Active Grille Air Shutter Actuator M96 Active Grille Air Shutter Actuator (VTI) | 1 |
| B342C UHF Low Energy Remote Control Access Sensor Transceiver 3 B342C UHF Low Energy Remote Control Access Sensor Transceiver 3 (BOP) | 2 |
| B342A UHF Low Energy Remote Control Access Sensor Transceiver 1 B342A UHF Low Energy Remote Control Access Sensor Transceiver 1 (BOP) | 3 |
