Installation Procedure

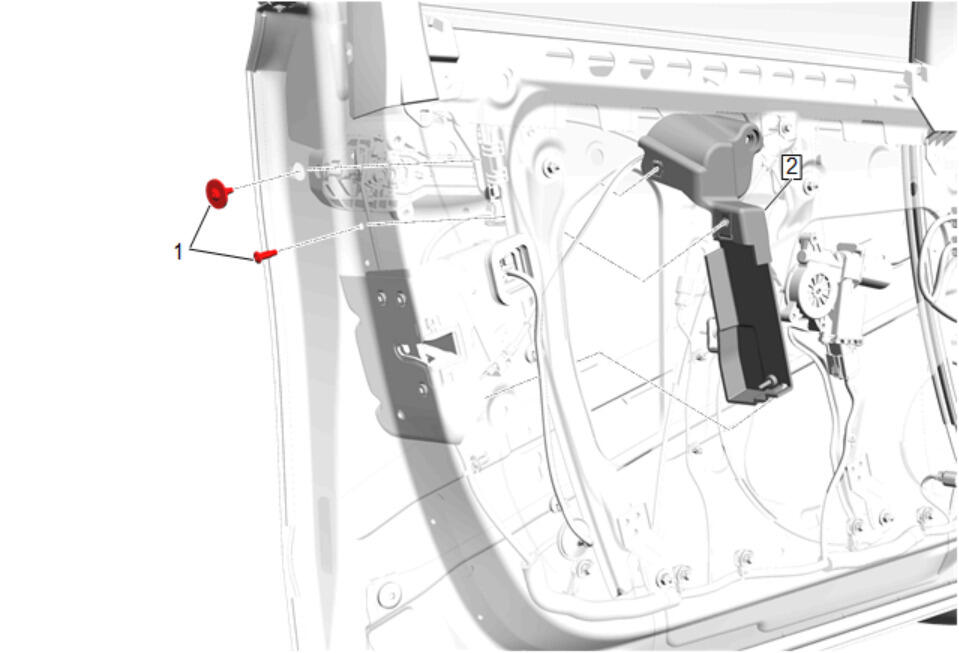

  1. GM5311665Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Lock Cover (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Side Door Lock Cover Bolt (1) - Install and tighten [ 2x ] 2.2 N.m (19 lb in)

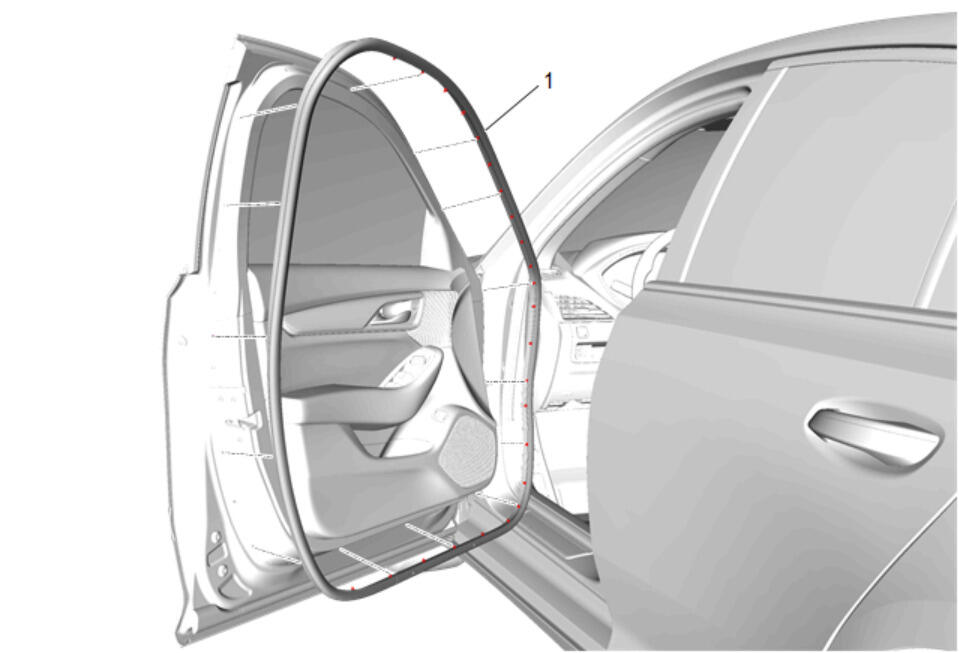

  3. GM5311192Courtesy of GENERAL MOTORS COMPANY

    Install front side door weatherstrip - door side (1) and front side door weatherstrip retainers.

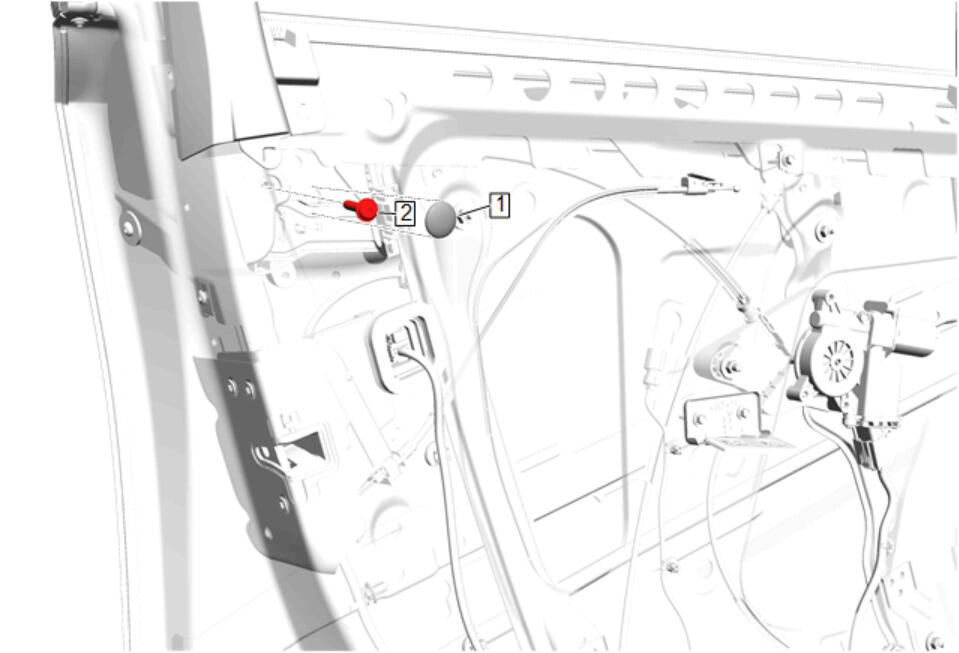

  4. GM5311661Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Lock Cover Bolt (2) - Install and tighten 2.2 N.m (19 lb in)

  5. Front Side Door Access Hole Plug (1) - Install

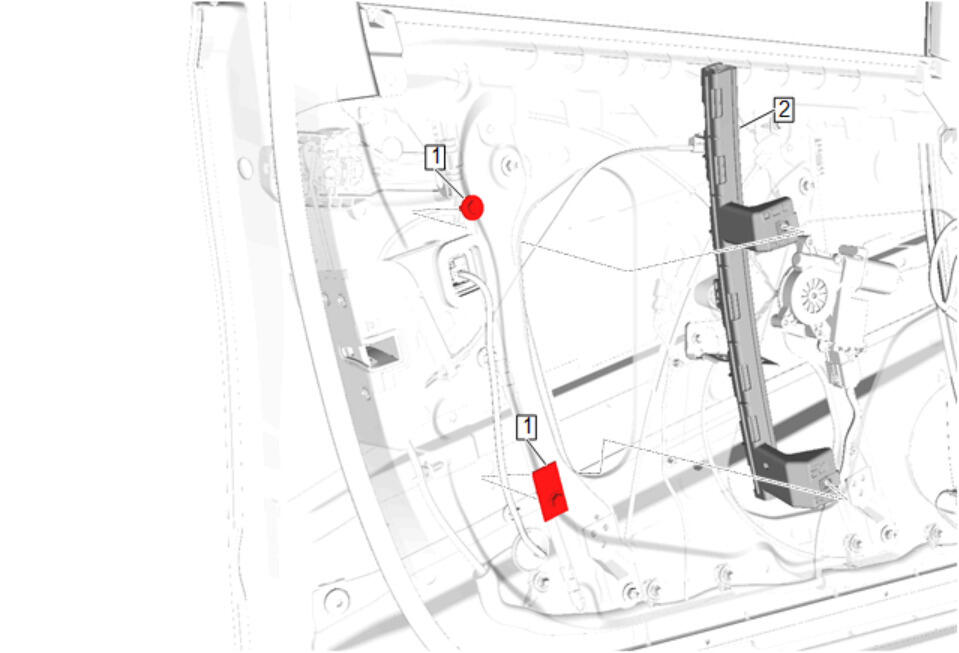

  6. GM5311153Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Channel Retainer (2) - Install - Front Side Door Window Channel Retainer Replacement

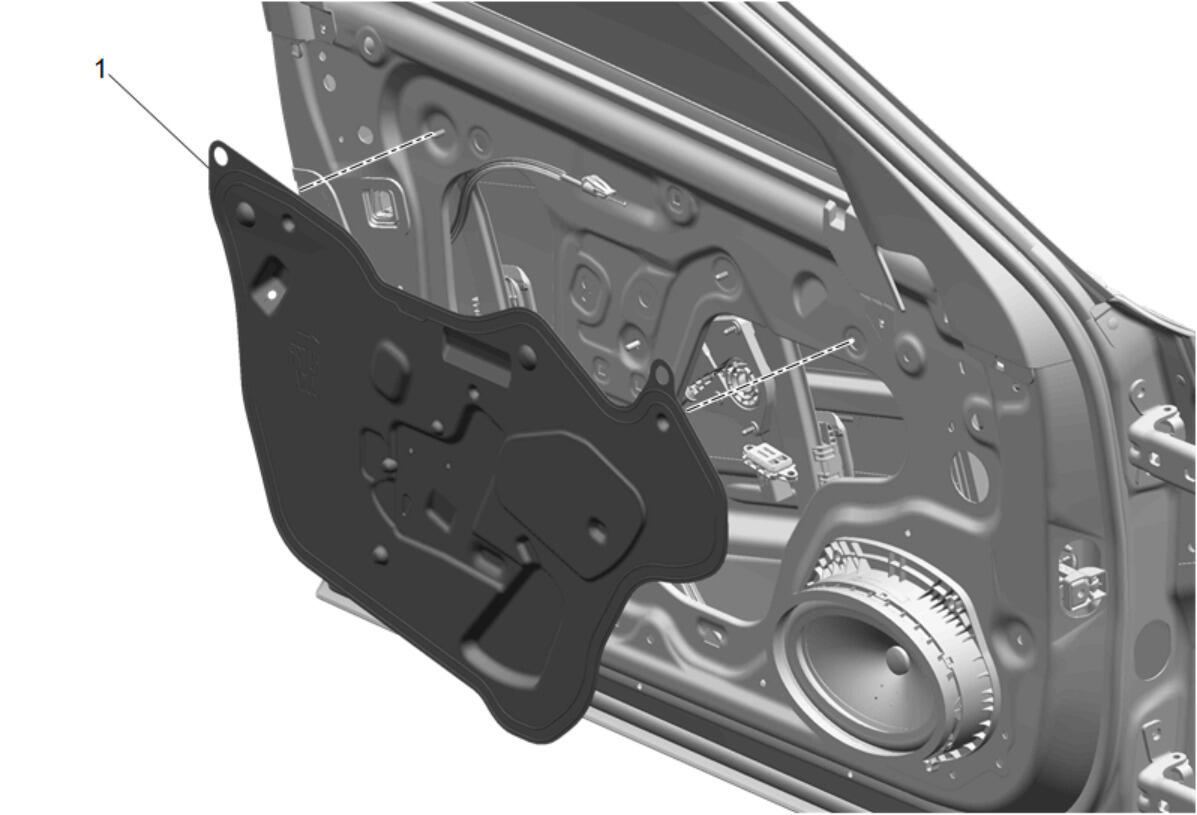

  7. GM5294195Courtesy of GENERAL MOTORS COMPANY

    Install the appropriate front side door water deflector:
