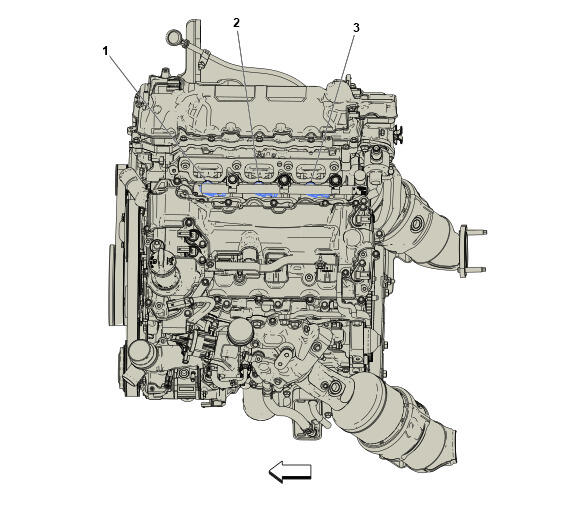

Top Right of Engine Components (LGY)
NOTE:
Callouts in the following chart represent components shown in graphic above.
Top Right of Engine Components (LGY)
| Component Name | Callout |
|---|---|
| Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LGY) | 1 |
| Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LGY) | 2 |
| Q17E Fuel Injector 5 (LGY) Q17E Fuel Injector 5 (LGY) | 3 |
