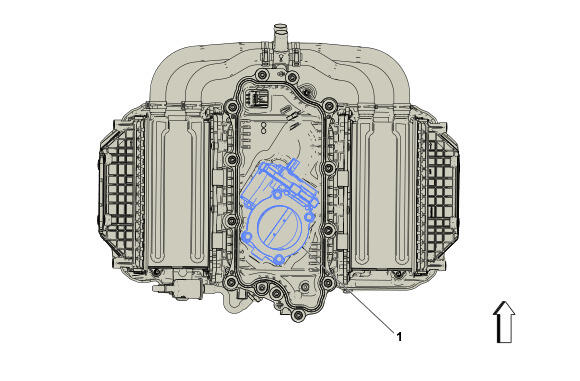

Top Center of Engine Components (LGY)
NOTE:
Callouts in the following chart represent components shown in graphic above.
Top Center of Engine Components (LGY)
| Component Name | Callout |
|---|---|
| Q38 Throttle Body Q38 Throttle Body (LGY) | 1 |
| Component Name | Callout |
|---|---|
| Q38 Throttle Body Q38 Throttle Body (LGY) | 1 |
