Installation Procedure
- Gently pull fascia outward to allow for clearance for the installation of the filler pipe.

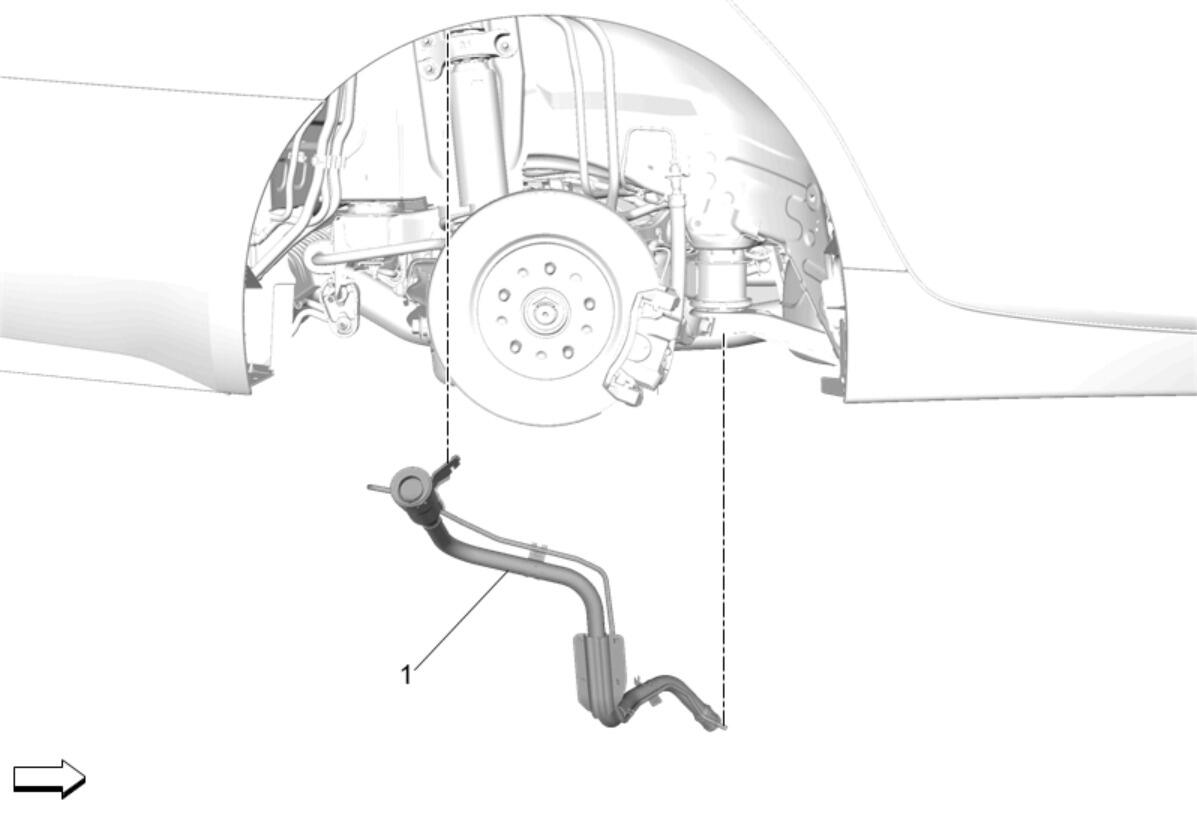

Fuel Tank Filler Pipe (1) - Install

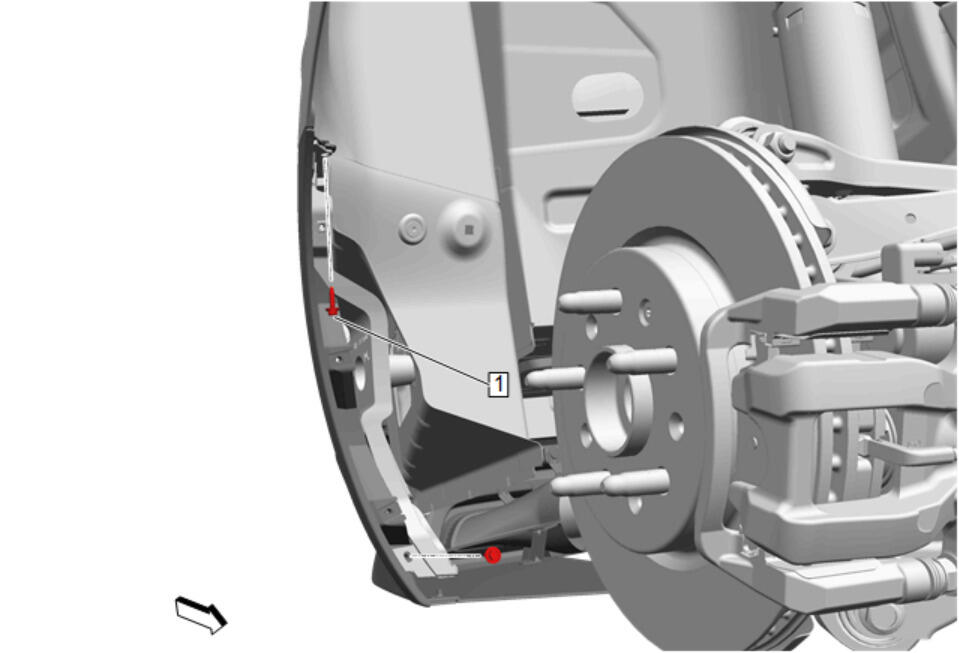

Install the 2 right side rear fascia bolts (1). Rear Bumper Fascia Removal and Installation

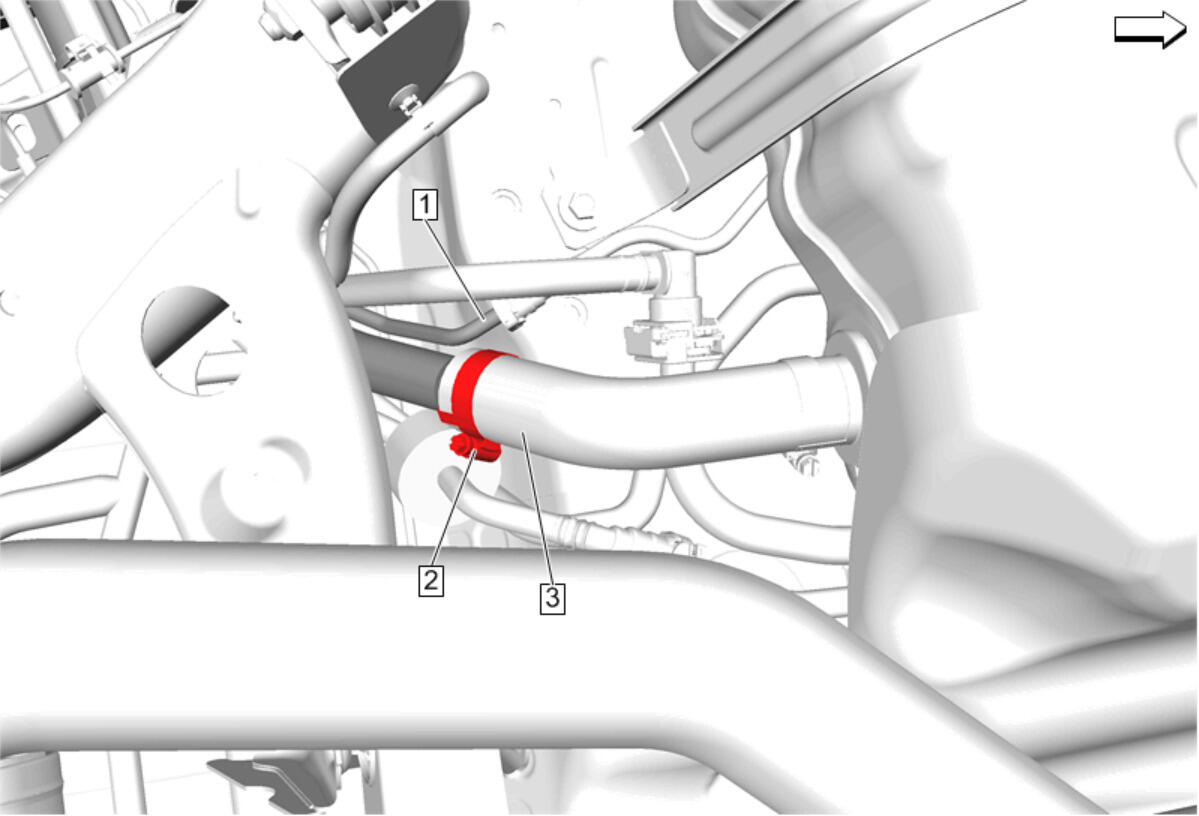

Fuel Tank Filler Hose (3) - Install
- Fuel Tank Filler Hose Clamp (2) - Tighten 3.5 N.m (31 lb/in)
- Fuel Tank Filler Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service

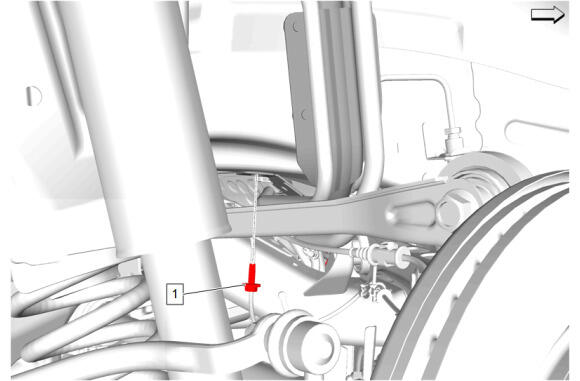

Fuel Tank Filler Pipe Ground Bolt (1) - Install and tighten 9 N.m (80 lb/in)

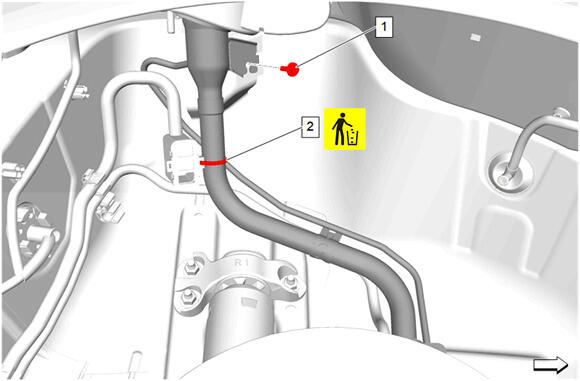

Tie Strap (2) - Install NEW
- Fuel Tank Filler Pipe Ground Bolt (1) - Install and tighten 9 N.m (80 lb/in)
- Fuel Tank Vent Hose - Install - Fuel Tank Vent Hose Replacement
- Fuel Tank Filler Pipe Housing - Install - Fuel Tank Filler Pipe Housing Replacement
- Rear Wheelhouse Liner-Right Side - Install - Rear Wheelhouse Liner Replacement
- Fill the fuel tank.
CAUTION:
Refer to Fastener Caution .
