Engine Oil Temperature Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Lifting and Jacking the Vehicle

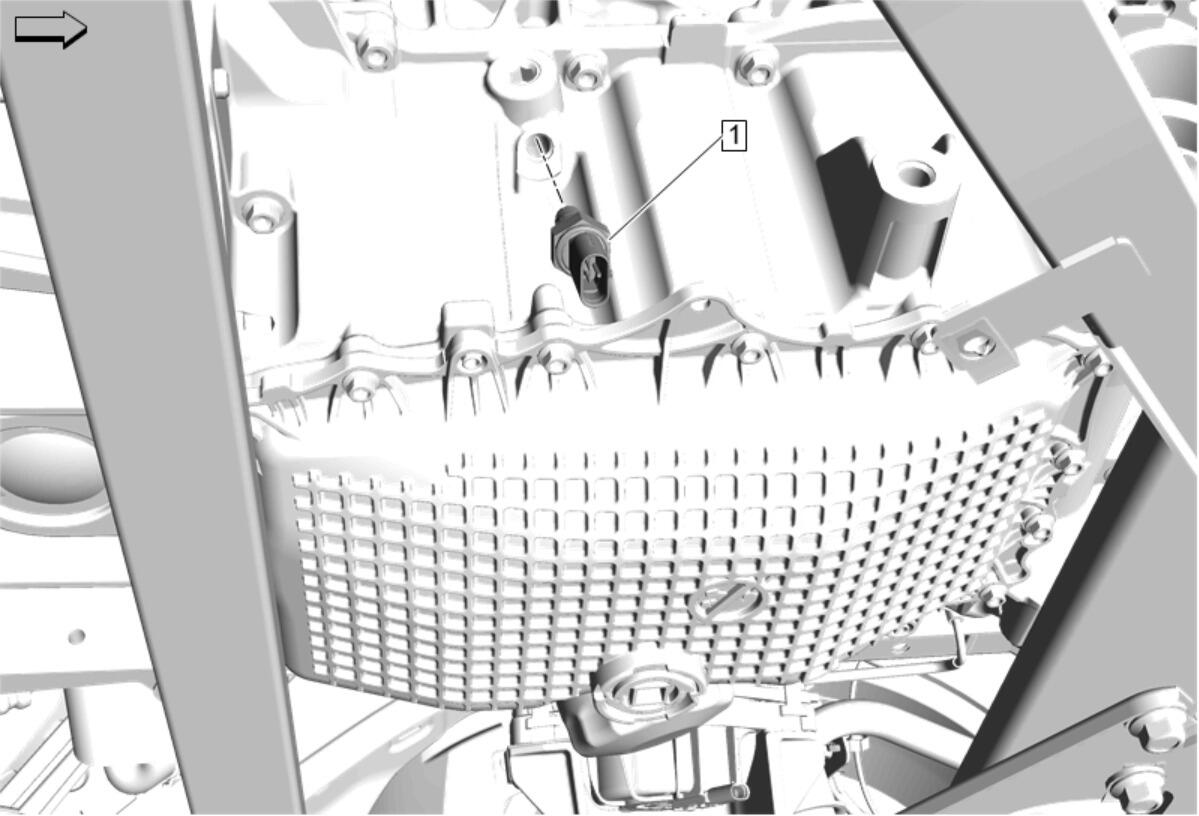

1	Engine Oil Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect the electrical connector. Tighten  20 N.m (15 lb-ft)
