Fuel Tank Components
NOTE:

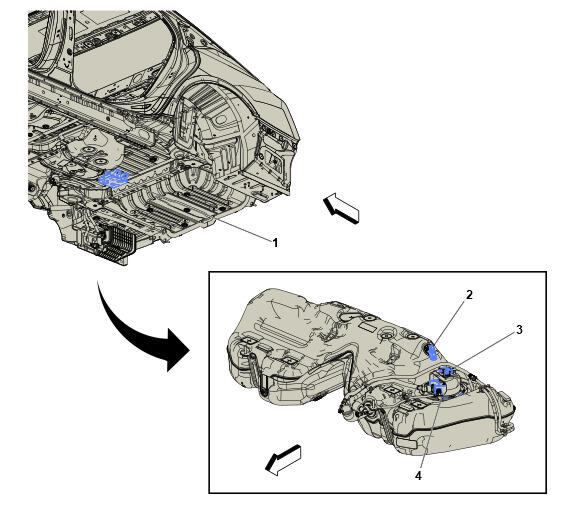

Callouts in the following chart represent components shown in graphic above.
Fuel Tank Components
| Component Name | Callout |
|---|---|
| K111 Fuel Pump Power Control Module K111 Fuel Pump Power Control Module | 1 |
| B150 Fuel Tank Pressure Sensor B150 Fuel Tank Pressure Sensor | 2 |
| B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor | 3 |
| A7 Fuel Tank Fuel Pump Module A7 Fuel Tank Fuel Pump Module | 4 |
