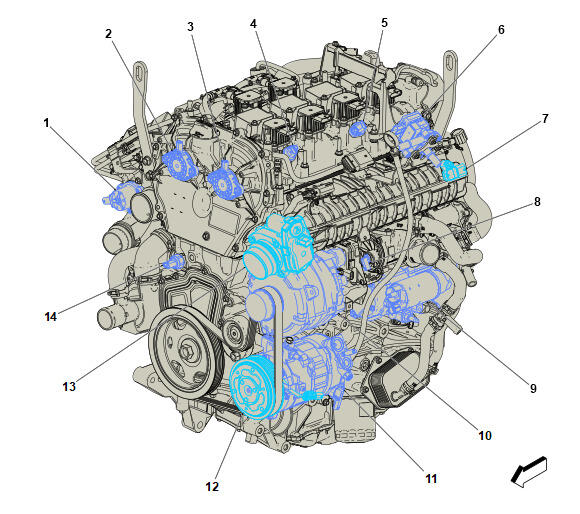

Front of Engine Components (LSY)
NOTE:
Callouts in the following chart represent components shown in graphic above.
Front of Engine Components (LSY)
| Components |
|---|
| 1. Q40 Turbocharger Bypass Valve Solenoid (LSY) Q40 Turbocharger Bypass Valve Solenoid (LSY) |
| 2. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY) |
| 3. Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY) Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY) |
| 4. B338A Intake Camshaft Profile Sleeve Position Sensor 1 (LSY) B338A Intake Camshaft Profile Sleeve Position Sensor 1 (LSY) |
| 5. B338B Intake Camshaft Profile Sleeve Position Sensor 2 (LSY) B338B Intake Camshaft Profile Sleeve Position Sensor 2 (LSY) |
| 6. G58 Evaporative Emission Canister Purge Pump (LSY) G58 Evaporative Emission Canister Purge Pump (LSY) |
| 7. B65 Manifold Absolute Pressure and Intake Air Temperature Sensor (LSY) B65 Manifold Absolute Pressure and Intake Air Temperature Sensor (LSY) |
| 8. B34B Engine Coolant Temperature Sensor 2 (LSY) B34B Engine Coolant Temperature Sensor 2 (LSY) |
| 9. M64 Starter M64 Starter X1 (LSY) , or M64 Starter X2 (LSY) |
| 10. G13 Generator G13 Generator X1 G13 Generator X2 (LSY) |
| 11. G1 Air Conditioning Compressor |
| 12. Q2 Air Conditioning Clutch Q2 Air Conditioning Clutch |
| 13. Q38 Throttle Body Q38 Throttle Body (LSY) |
| 14. B37B Engine Oil Pressure Sensor (LGY) B37B Engine Oil Pressure Sensor (LSY) |
