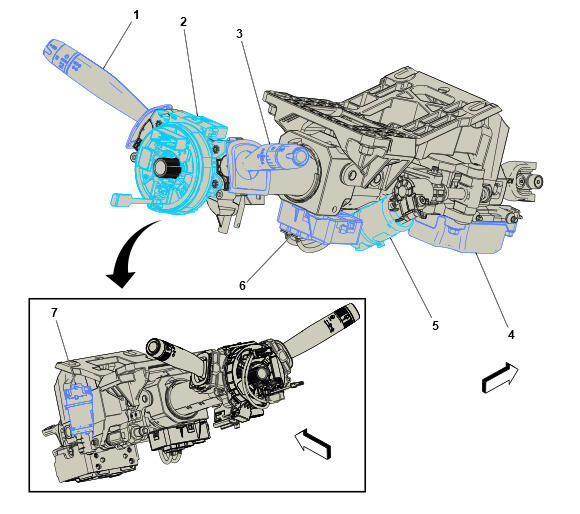

Steering Wheel Column Components
NOTE:
Callouts in the following chart represent components shown in graphic above.
Steering Wheel Column Components
| Components |
|---|
| 1. S78 Turn Signal Switch S78 Turn Signal Switch |
| 2. X85 Steering Wheel Airbag Coil X85 Steering Wheel Airbag Coil X1 , or X85 Steering Wheel Airbag Coil X2 |
| 3. S82 Windshield Wiper and Windshield Washer Switch S82 Windshield Wiper and Windshield Washer Switch |
| 4. K60 Column Lock Module K60 Column Lock Module (N06) |
| 5. M65 Steering Column Telescope Actuator |
| 6. K99 Steering Column Control Module K99 Steering Column Tilt Wheel and Telescope Control Module X1 (N38) , or K99 Steering Column Tilt Wheel and Telescope Control Module X2 (N38) , or K99 Steering Column Tilt Wheel and Telescope Control Module X3 (N38) , or K99 Steering Column Tilt Wheel and Telescope Control Module X4 (N38) . |
| 7. M68 Steering Column Tilt Wheel Actuator |
