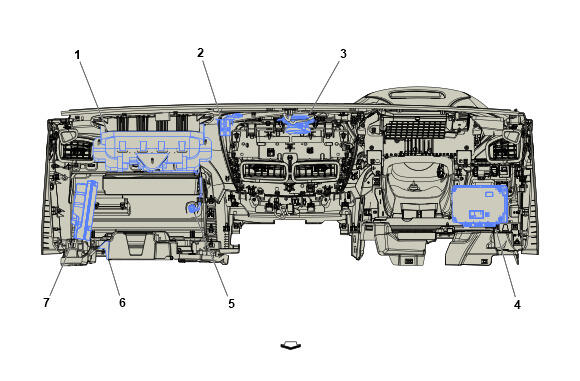

Instrument Panel Rear Components (2 of 2)
NOTE:
Callouts in the following chart represent components shown in graphic above.
Instrument Panel Rear Components (2 of 2)
| Components |
|---|
| 1. F101 Instrument Panel Airbag F101 Instrument Panel Airbag X1 , or F101 Instrument Panel Airbag X2 |
| 2. T4TA Auxiliary Wireless Communication Interface Antenna |
| 3. P19B Radio Front Center Speaker P19B Radio Front Center Speaker (UQG) , or P19B Radio Front Center Speaker (UQP) |
| 4. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 , or K56 Serial Data Gateway Module X3 . |
| 5. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp |
| 6. F114P Instrument Panel Lower Airbag - Passenger F114P Instrument Panel Lower Airbag - Passenger |
| 7. A11 Radio A11 Radio X1 , or A11 Radio X10 (U2Q) , or A11 Radio X2 , or A11 Radio X3 , or A11 Radio X4 , or A11 Radio X5 (UV2) , or A11 Radio X5 (UVB) , or A11 Radio X6 , or A11 Radio X7 , or A11 Radio X8 (-UE1) , or A11 Radio X9 (U2K) . |
