Instrument Panel Components
NOTE:

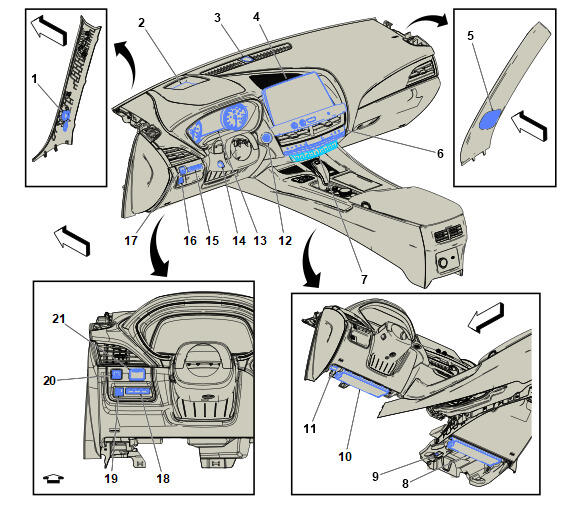

Callouts in the following chart represent components shown in graphic above.
Instrument Panel Components
| Components |
|---|
| 1. P19H Radio Windshield Side Garnish Molding Speaker - Left Front |
| 2. P29 Head-Up Display P29 Head-Up Display X1 (UV6) , or P29 Head-Up Display X2 (UV6) |
| 3. B10B Sun Load Temperature and Ambient Light and Security Indicator Sensor B10B Sun Load Temperature and Ambient Light and Security Indicator Sensor |
| 4. A22 Radio Control A22 Radio Control X1 , or A22 Radio Control X2 (UV2) |
| 5. P19V Radio Windshield Side Garnish Molding Speaker - Right Front |
| 6. A26 Heater and Air Conditioning User Interface Control - Front A26 Heater and Air Conditioning User Interface Control - Front |
| 7. S26 Hazard Warning Switch S26 Hazard Warning Switch |
| 8. F114P Instrument Panel Lower Airbag - Passenger F114P Instrument Panel Lower Airbag - Passenger |
| 9. E8VC Front Floor Courtesy Lamp - Right E8VC Front Floor Courtesy Lamp - Right |
| 10. F114D Instrument Panel Lower Airbag - Driver F114D Instrument Panel Lower Airbag - Driver |
| 11. X84 Data Link Connector X84 Data Link Connector |
| 12. S38 On/Off Vehicle Switch S38 On/Off Vehicle Switch |
| 13. P16 Instrument Panel Cluster Control Module P16 Instrument Panel Cluster Control Module X1 , or P16 Instrument Panel Cluster Control Module X2 (UV6) |
| 14. S71 Steering Column Tilt Wheel and Telescope Switch S71 Steering Column Tilt Wheel and Telescope Switch (N38) |
| 15. S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch (UV6) |
| 16. S36 Dimmer Switch S36 Dimmer Switch |
| 17. S91 Parking Brake Control Switch S91 Parking Brake Control Switch |
| 18. S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch (UV6) |
| 19. S36 Dimmer Switch S36 Dimmer Switch |
| 20. S91 Parking Brake Control Switch S91 Parking Brake Control Switch |
| 21. X20 Card Reader Receptacle X20 Card Reader Receptacle X1 (XVR) , or X20 Card Reader Receptacle X2 (XVR) . |
