HVAC Components

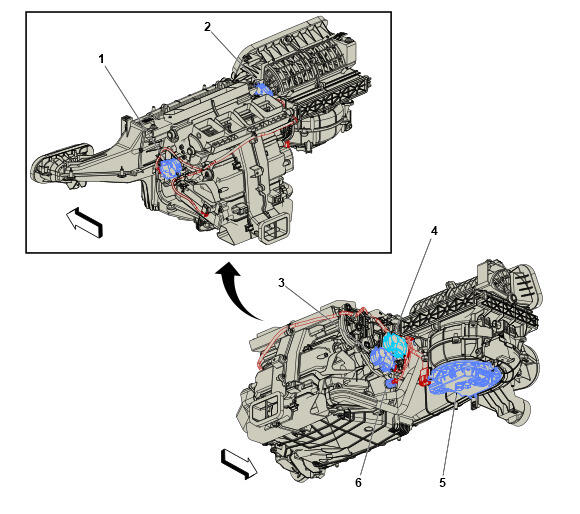

GM5330442Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
HVAC Components

Component Name Callout
M6PL Programmable Temperature Valve Actuator - Left M6PL Programmable Temperature Valve Actuator - Left 1
M4P Programmable Air Inlet Valve Actuator M4P Programmable Air Inlet Valve Actuator 2
M6PR Programmable Temperature Valve Actuator - Right M6PR Programmable Temperature Valve Actuator - Right 3
M37P Programmable Mode Valve Actuator M37P Programmable Mode Valve Actuator 4
M8 Blower Motor M8 Blower Motor 5
B39 Air Conditioning Evaporator Air Temperature Sensor B39 Air Conditioning Evaporator Air Temperature Sensor 6
