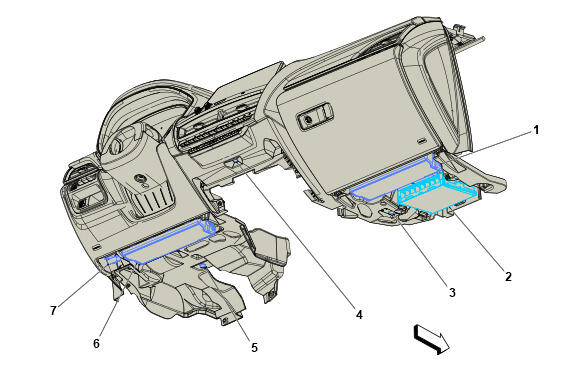

Bottom of Instrument Panel Components
NOTE:
Callouts in the following chart represent components shown in graphic above.
Bottom of Instrument Panel Components
| Components |
|---|
| 1. F114P Instrument Panel Lower Airbag - Passenger F114P Instrument Panel Lower Airbag - Passenger |
| 2. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 , or K9 Body Control Module X8 . |
| 3. E8VC Front Floor Courtesy Lamp - Right E8VC Front Floor Courtesy Lamp - Right |
| 4. E88 Front Floor Console Bin Lamp E88 Front Floor Console Bin Lamp |
| 5. E8VA Front Floor Courtesy Lamp - Left E8VA Front Floor Courtesy Lamp - Left |
| 6. F114D Instrument Panel Lower Airbag - Driver F114D Instrument Panel Lower Airbag - Driver |
| 7. X84 Data Link Connector X84 Data Link Connector |
