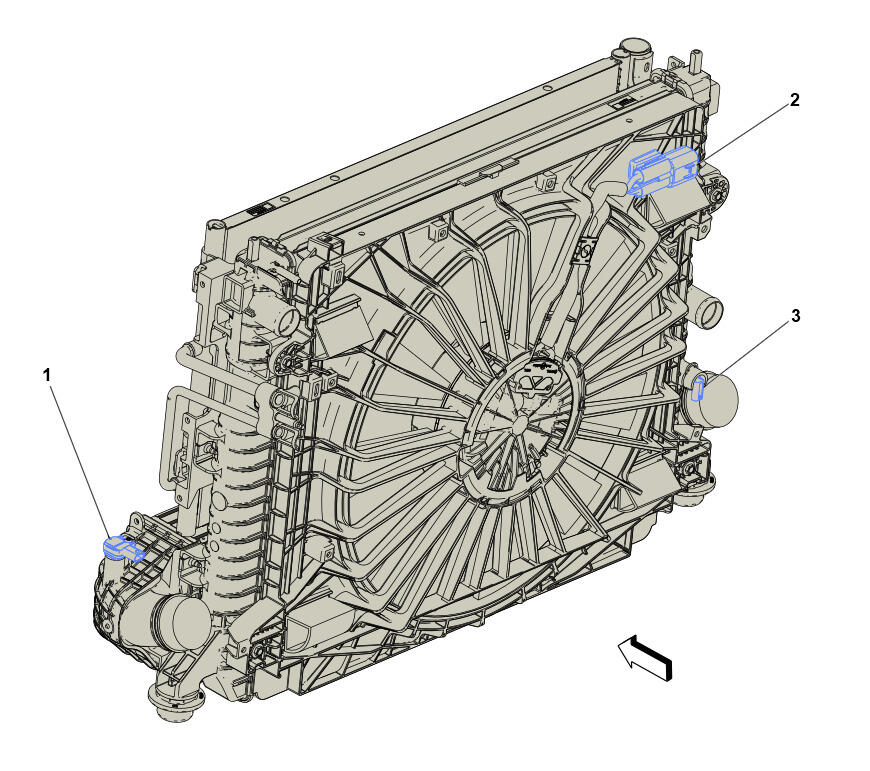

Radiator Assembly Components (LSY)
NOTE:
Callouts in the following chart represent components shown in graphic above.
Radiator Assembly Components (LSY)
| Component Name | Callout |
|---|---|
| B111 Turbocharger/Supercharger Boost Pressure Sensor (LSY) B111 Turbocharger/Supercharger Boost Pressure Sensor (LSY) | 1 |
| G10 Cooling Fan Motor G10 Engine Cooling Fan Motor | 2 |
| B203 Radiator Coolant Temperature Sensor (LSY) B203 Radiator Coolant Temperature Sensor (LSY) | 3 |
