Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

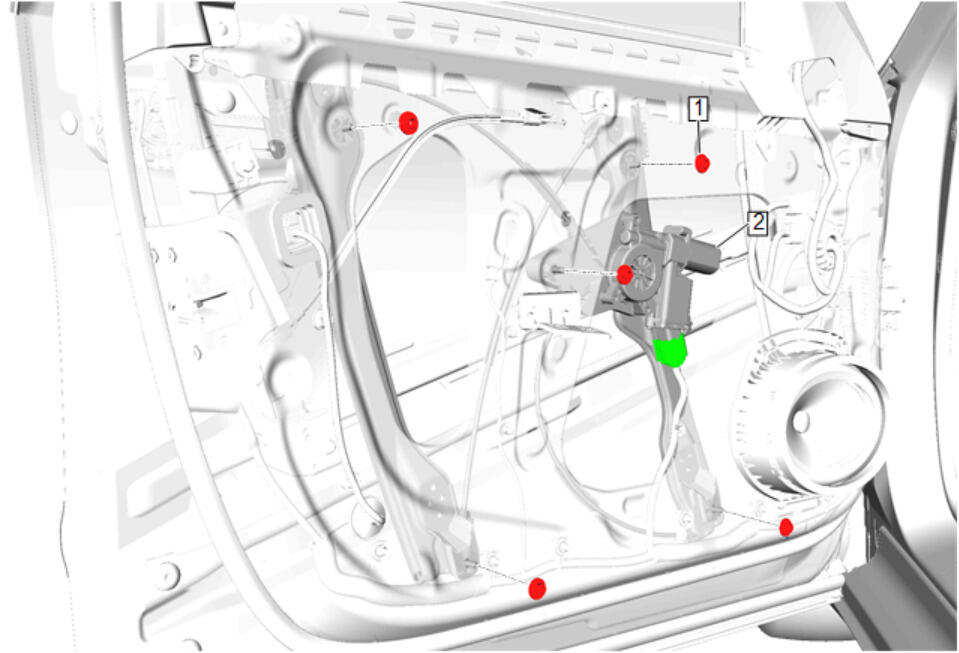

Front Side Door Window Regulator (2) - Install

CAUTION:

Front Side Door Window Regulator Nut (1) - Install and tighten [ 5x ] 11 N.m (97 lb in)
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

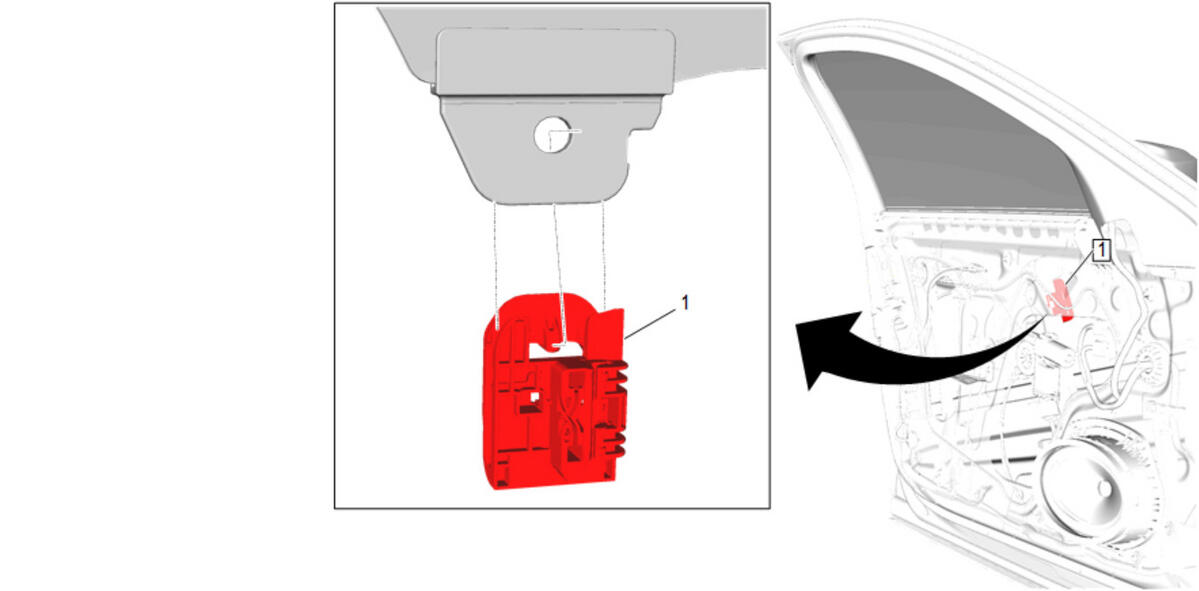

Front Side Door Window Regulator Sash Retainer (1) - Install [ 2x ]
Remove the tape.
Inspect the door window for proper operation before installing the door trim panel.
Courtesy of GENERAL MOTORS COMPANY

Install the appropriate front side door water deflector:
- Front Side Door Water Deflector Replacement - Driver Side
- Front Side Door Water Deflector Replacement - Passenger Side
Perform the necessary programming and setup procedure: Window Motor Programming - Express Function
