Front Side Door Window Control Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Armrest Switch Mount Plate Replacement - Driver Side

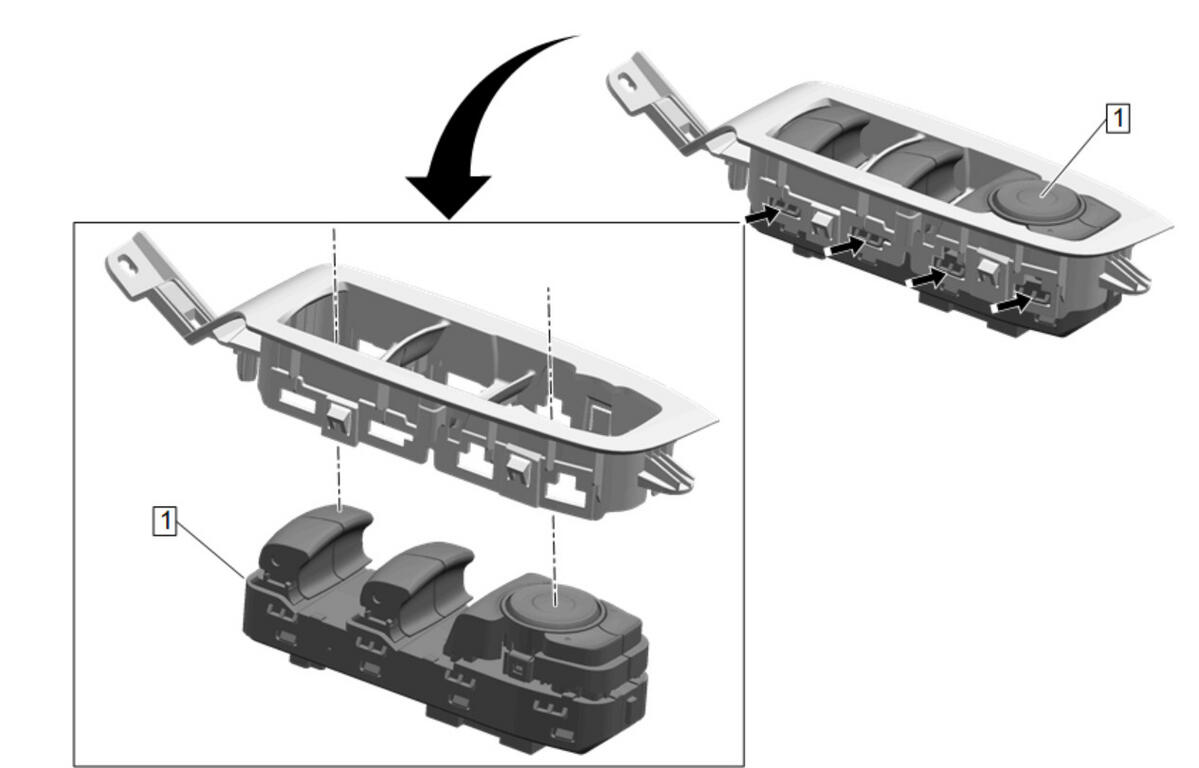

1	Front Side Door Window Control Switch Procedure Release the switch from the switch mount plate by depressing the tabs along each side of the switch. Disconnect the electrical connector.

Callout

Component Name

Front Side Door Window Control Switch

Procedure

Release the switch from the switch mount plate by depressing the tabs along each side of the switch.
Disconnect the electrical connector.
