Installation Procedure

  1. GM5542318Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Column Lock Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Steering Column Lock Control Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
  3. GM5542312Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Connect the electrical connector. (1)

  4. Install the steering column lock control module protector (2).
  5. GM5542309Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Connect the wiring harness retainers (1) and install the wiring harness.

  6. GM5542306Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Start ALL bolts by hand before breaking the bolt heads off or misalignment of the steering column lock control module protector may occur.

    Steering Column Lock Control Module Protector Bolt (1) - Install NEW and hand tighten [4x]

  7. Tighten the 4 steering column lock control module protector bolts (1) until the bolt heads break off.

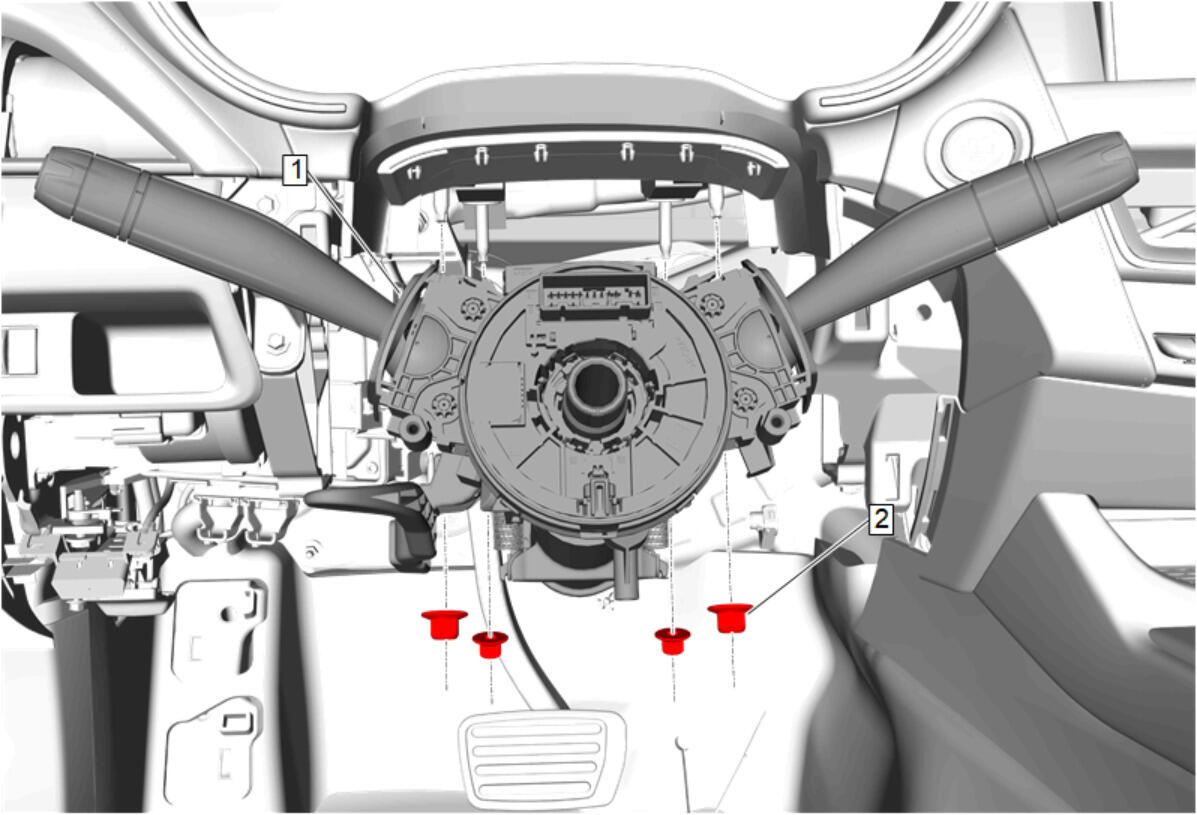

  8. GM5338700Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install - Steering Column Replacement (N37) , or Steering Column Replacement (N38)
