Intake Camshaft Profile Sleeve Position Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

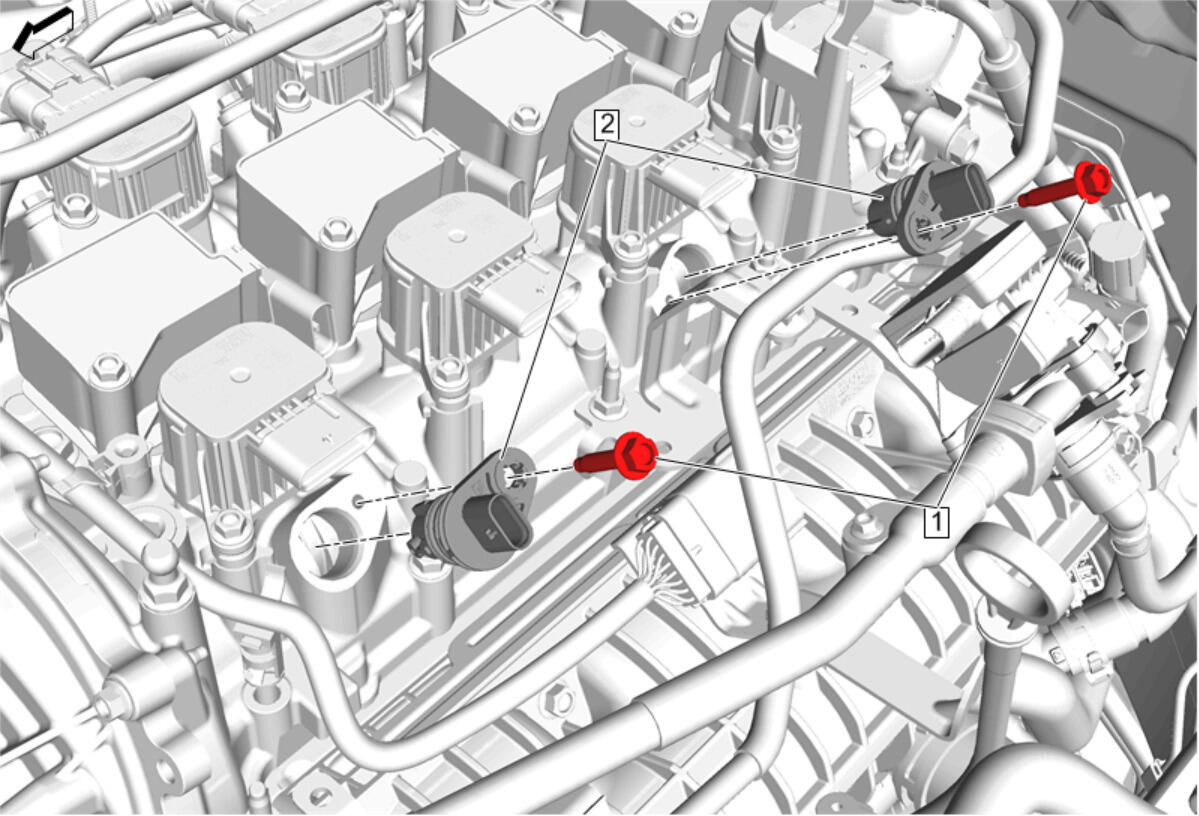

Callout	Component Name
Preliminary Procedure  Intake Manifold Cover Replacement
1	Camshaft Intake Lobe Sensor Bolt [ 2x ] CAUTION: Refer to Fastener Caution . Tighten  8.5 N.m (75 lb/in)
2	Camshaft Intake Lobe Sensor [ 2x ] Procedure  Disconnect the electrical connector.
