Removal Procedure

  1. GM5310568Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module (1) - Remove - Engine Control Module Replacement

  2. Remove all retainers from the engine control module bracket.

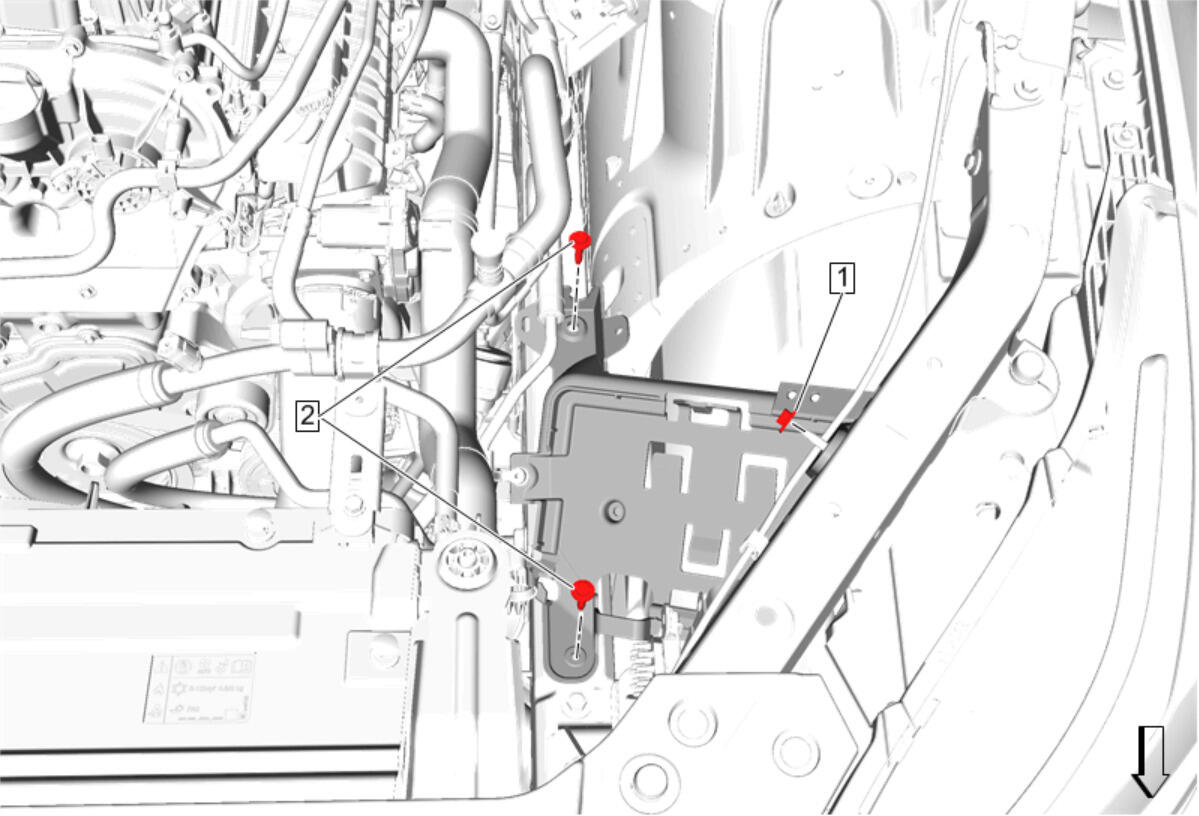

  3. GM5310571Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket Nut (1) - Remove

  4. Engine Control Module Bracket Bolt (2) - Remove [ 2x ]

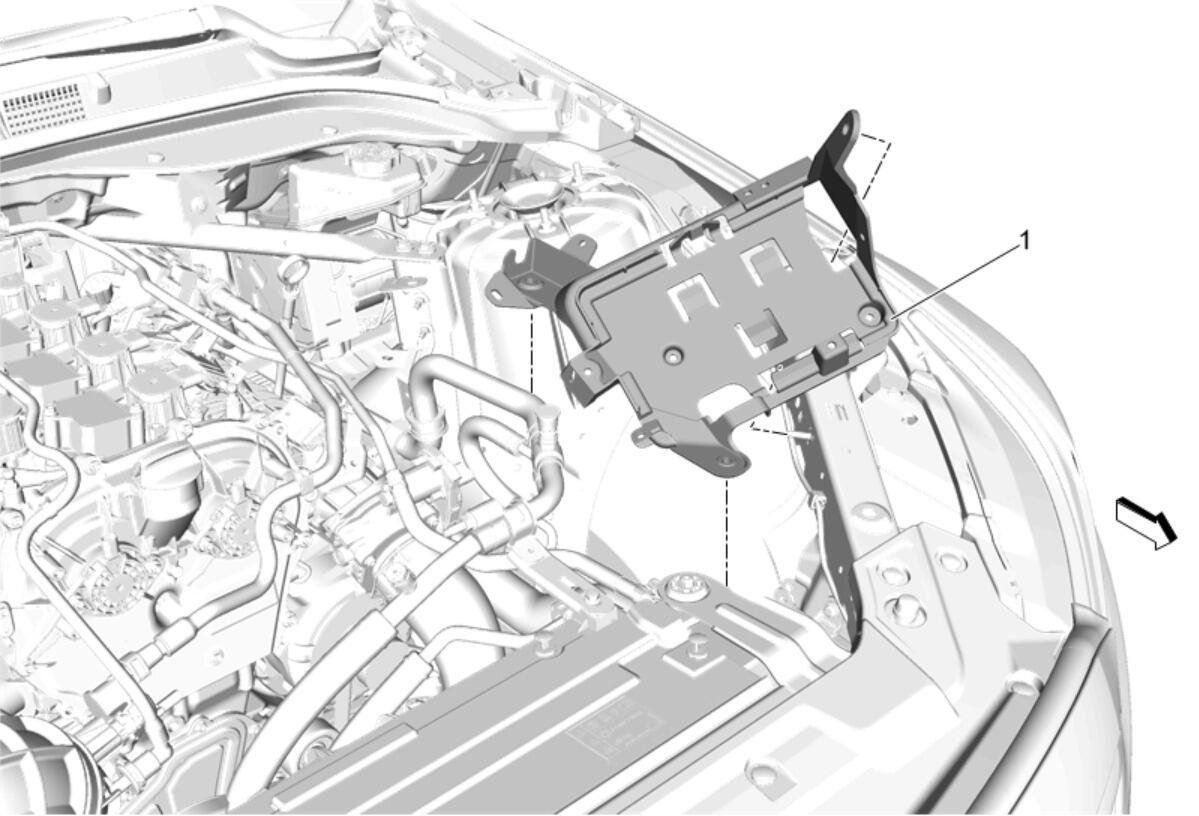

  5. GM5310572Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket (1) - Remove
