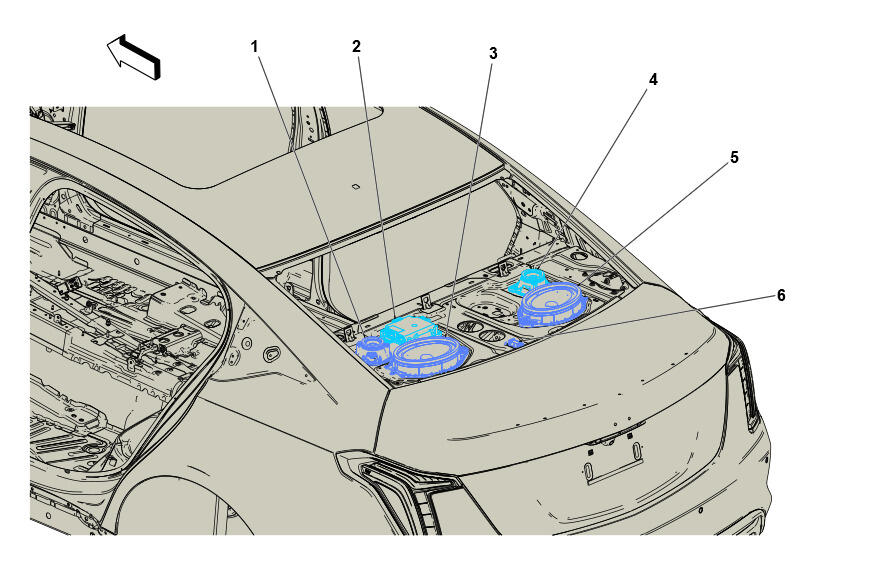

Rear Window Shelf Components
NOTE:
Callouts in the following chart represent components shown in graphic above.
Rear Window Shelf Components
| Components |
|---|
| 1. P19AN Radio Rear Surround Speaker - Left P19AN Radio Rear Surround Speaker - Left |
| 2. K124 Image Processing Module K124 Image Processing Module X1 (UGN+UKL) , or K124 Image Processing Module X1 (UGN-UKL) , or K124 Image Processing Module X2 (UGN+UKL) , or K124 Image Processing Module X2 (UGN-UKL) . |
| 3. P19AJ Radio Rear Speaker - Left P19AJ Radio Rear Speaker - Left |
| 4. P19AP Radio Rear Surround Speaker - Right P19AP Radio Rear Surround Speaker - Right |
| 5. P19AK Radio Rear Speaker - Right P19AK Radio Rear Speaker - Right |
| 6. E8S Rear Compartment Courtesy Lamp E8S Rear Compartment Courtesy Lamp |
