Passenger Door Components
NOTE:

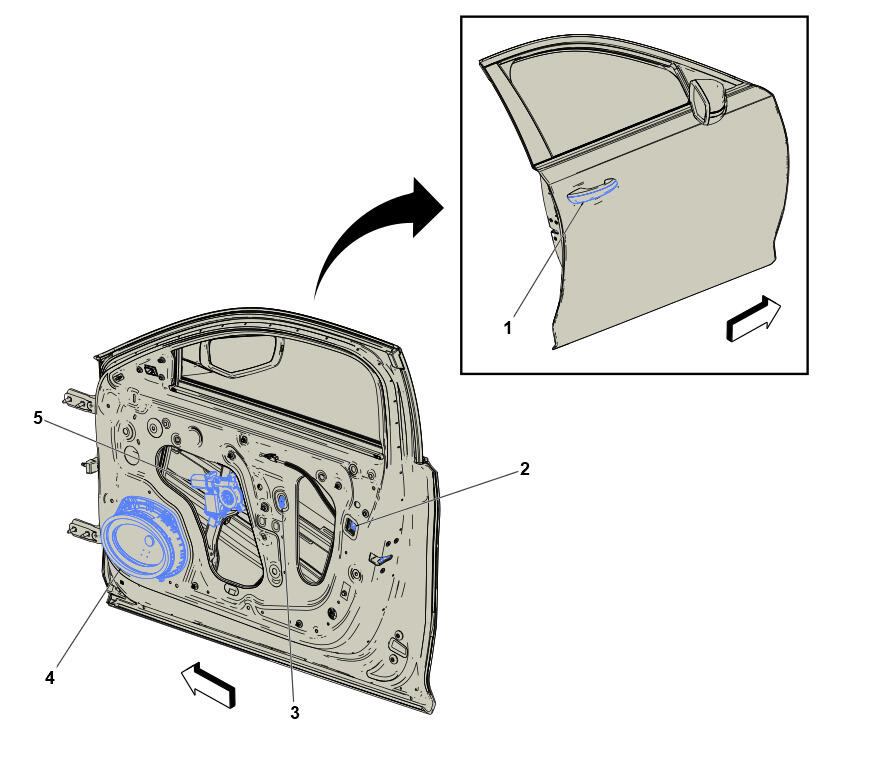

Callouts in the following chart represent components shown in graphic above.
Passenger Door Components
| Components |
|---|
| 1. A24P Front Side Door Outside Handle - Right A24P Front Side Door Outside Handle - Right (-HD7) , or A24P Front Side Door Outside Handle - Right (HD7) . |
| 2. A23P Front Side Door Latch - Passenger A23P Front Side Door Latch - Passenger |
| 3. B63RF Airbag Side Impact Sensor - Right Front Door B63RF Airbag Side Impact Sensor - Right Front Door |
| 4. P19AH Radio Front Side Door Speaker - Right P19AH Radio Front Side Door Speaker - Right (UQG) , or P19AH Radio Front Side Door Speaker - Right (UQP) . |
| 5. M74P Front Side Door Window Regulator Motor - Passenger M74P Front Side Door Window Regulator Motor - Passenger |
