Left Rear Door Components
NOTE:

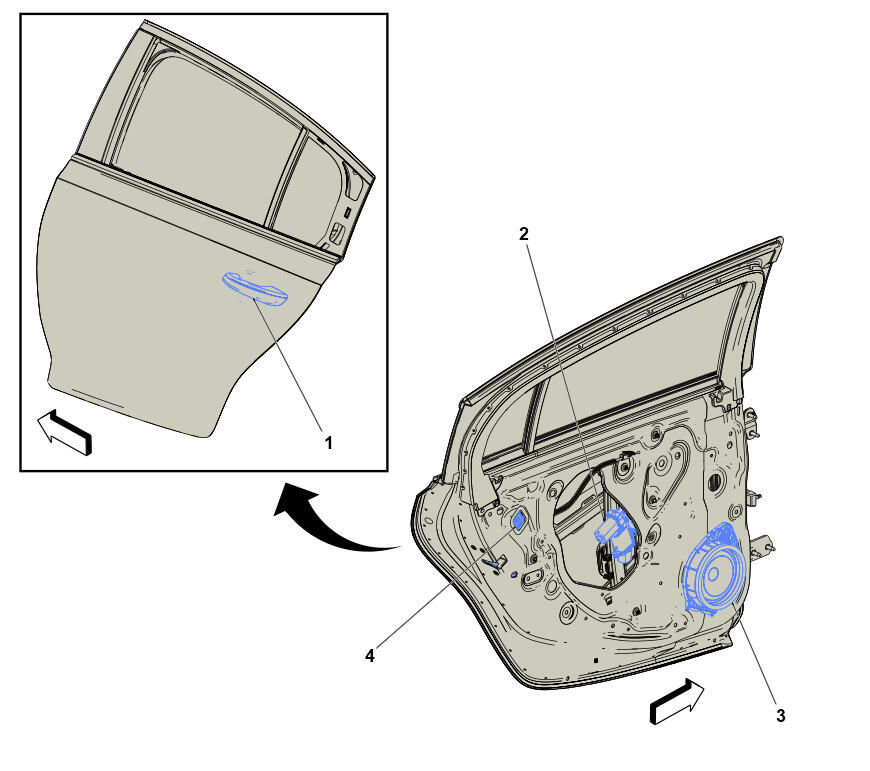

Callouts in the following chart represent components shown in graphic above.
Left Rear Door Components
| Components |
|---|
| 1. A24LR Rear Side Door Outside Handle - Left A24LR Rear Side Door Outside Handle - Left (-HD7) , or A24LR Rear Side Door Outside Handle - Left (HD7) |
| 2. M74LR Rear Side Door Window Regulator Motor - Left M74LR Rear Side Door Window Regulator Motor - Left |
| 3. P19AL Radio Rear Side Door Speaker - Left P19AL Radio Rear Side Door Speaker - Left (UQG) , or P19AL Radio Rear Side Door Speaker - Left (UQP) . |
| 4. A23LR Rear Side Door Latch - Left A23LR Rear Side Door Latch - Left (-AF8) , or A23LR Rear Side Door Latch - Left (AF8) . |
