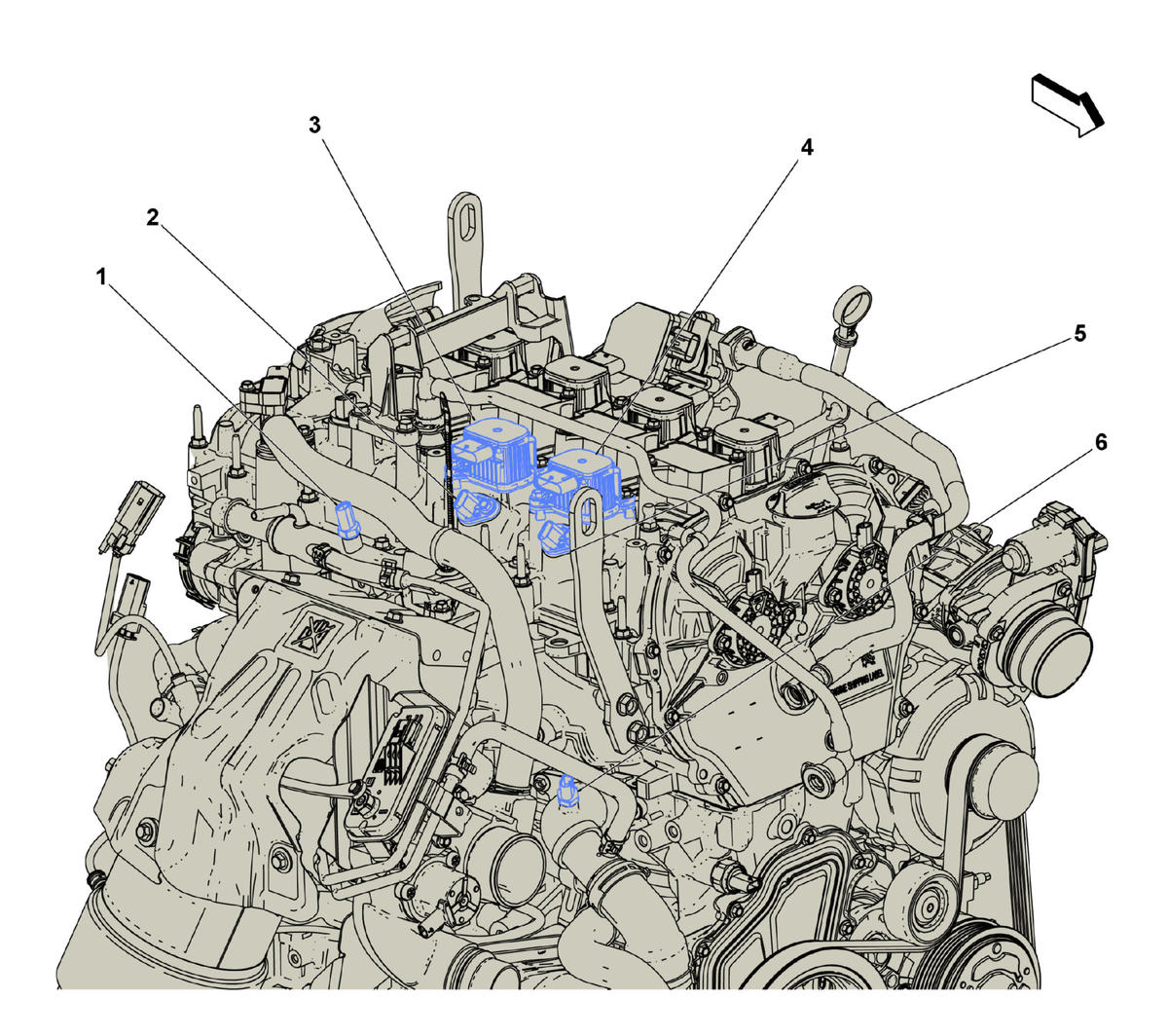

Right Front of Engine Components (LSY)
Right Front of Engine Components (LSY)
| Component Name | Callout |
|---|---|
| B34F Engine Coolant Temperature Sensor 6 (LSY/L3B) B34F Engine Coolant Temperature Sensor 6 (L3B) | 1 |
| B339B Exhaust Camshaft Profile Sleeve Position Sensor 2 B339B Exhaust Camshaft Profile Sleeve Position Sensor 2 | 2 |
| M130C Exhaust Camshaft Profile Actuator 3 M130C Exhaust Camshaft Profile Actuator 3 | 3 |
| M130B Exhaust Camshaft Profile Actuator 2 M130B Exhaust Camshaft Profile Actuator 2 | 4 |
| B339A Exhaust Camshaft Profile Sleeve Position Sensor 1 B339A Exhaust Camshaft Profile Sleeve Position Sensor 1 | 5 |
| B34B Engine Coolant Temperature Sensor 2 (LSY/L3B) B34B Engine Coolant Temperature Sensor 2 (LSY) | 6 |
