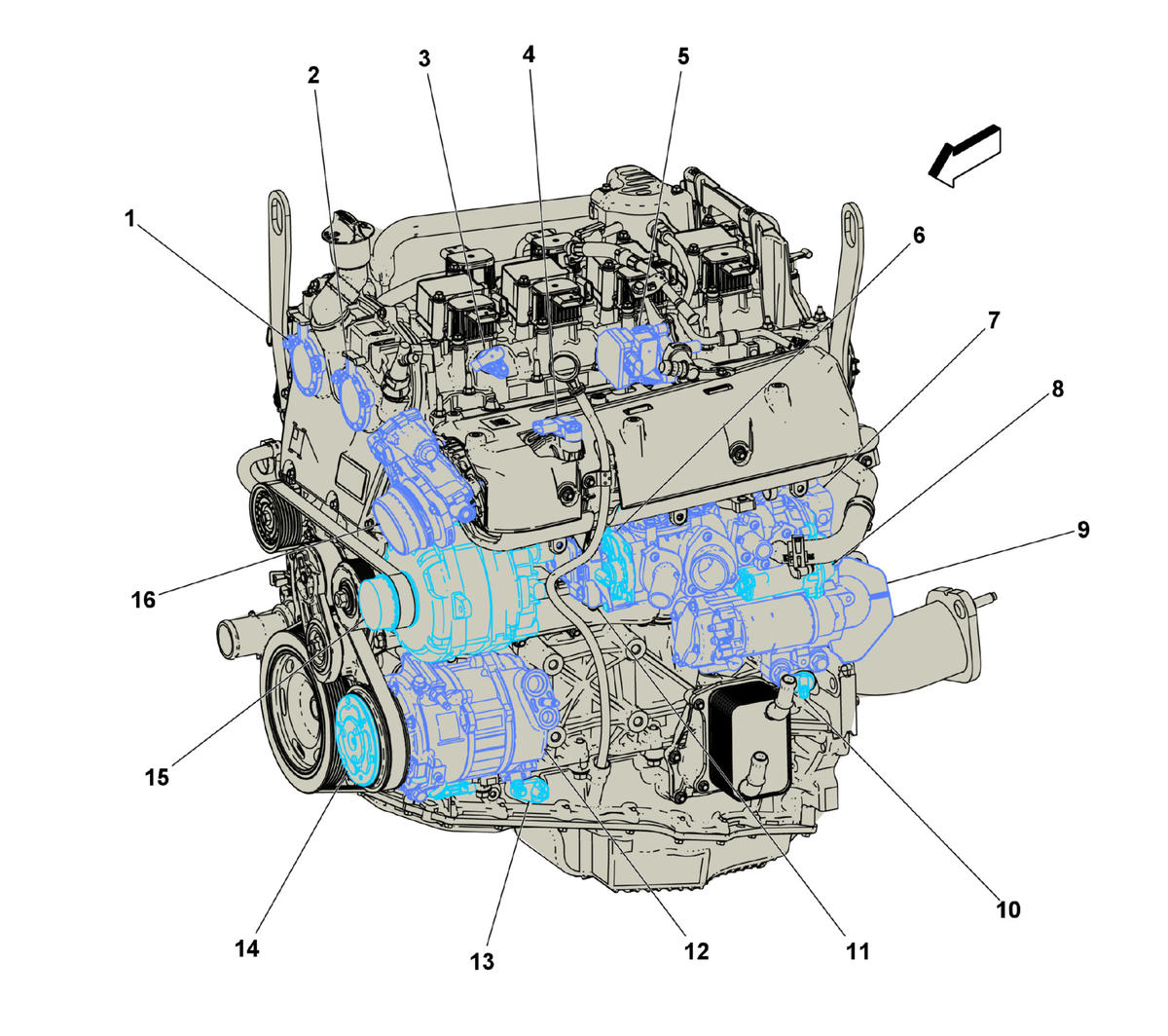

Engine Components - Left Front (L3B)
Engine Components - Left Front (L3B)
| Component Name | Callout |
|---|---|
| Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY/L3B) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (L3B) | 1 |
| Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY/L3B) Q6F Camshaft Position Actuator Solenoid Valve - Intake (L3B) | 2 |
| B338A Intake Camshaft Profile Sleeve Position Sensor 1 B338A Intake Camshaft Profile Sleeve Position Sensor 1 | 3 |
| B65 Manifold Absolute Pressure and Intake Air Temperature Sensor B65 Manifold Absolute Pressure and Intake Air Temperature Sensor | 4 |
| G58 Evaporative Emission Canister Purge Pump G58 Evaporative Emission Canister Purge Pump | 5 |
| B34A Engine Coolant Temperature Sensor 1 (LSY/L3B) B34A Engine Coolant Temperature Sensor 1 | 6 |
| Q97 Engine Coolant Flow Control Valve | 7 |
| Q74 Engine Coolant Bypass Valve Q74 Engine Coolant Bypass Valve | 8 |
| M64 Starter M64 Starter X1 (L3B/LSY) , or M64 Starter X2 (L3B) | 9 |
| B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LSY/L3B) | 10 |
| Q97B Engine Coolant Flow Control Valve - Block Q97B Engine Coolant Flow Control Valve - Block | 11 |
| G1 Air Conditioning Compressor | 12 |
| Q80L Engine Mount Actuator - Left Q80L Engine Mount Actuator - Left | 13 |
| Q2 Air Conditioning Clutch Q2 Air Conditioning Clutch | 14 |
| G13 Generator G13 Generator X1 (LSY/L3B) , or G13 Generator X2 (LSY/L3B) | 15 |
| Q38 Throttle Body Q38 Throttle Body | 16 |
