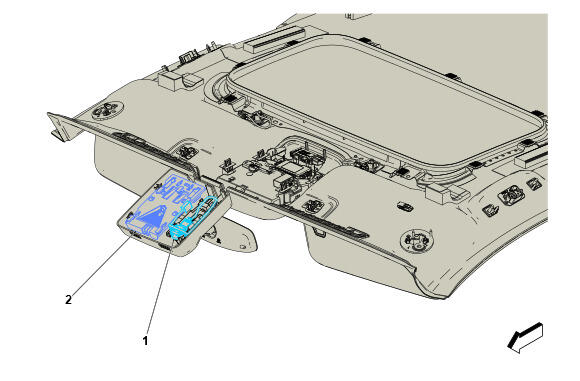

Overhead Console Components

GM5393485Courtesy of GENERAL MOTORS COMPANY
Overhead Console Components

Component Name Callout
B117 Windshield Outside Moisture Sensor (CJ2) B117 Windshield Outside Moisture Sensor 1
B174W Front View Camera - Windshield B174W Front View Camera - Windshield (-UG1) , or B174W Front View Camera - Windshield (UG1) 2
