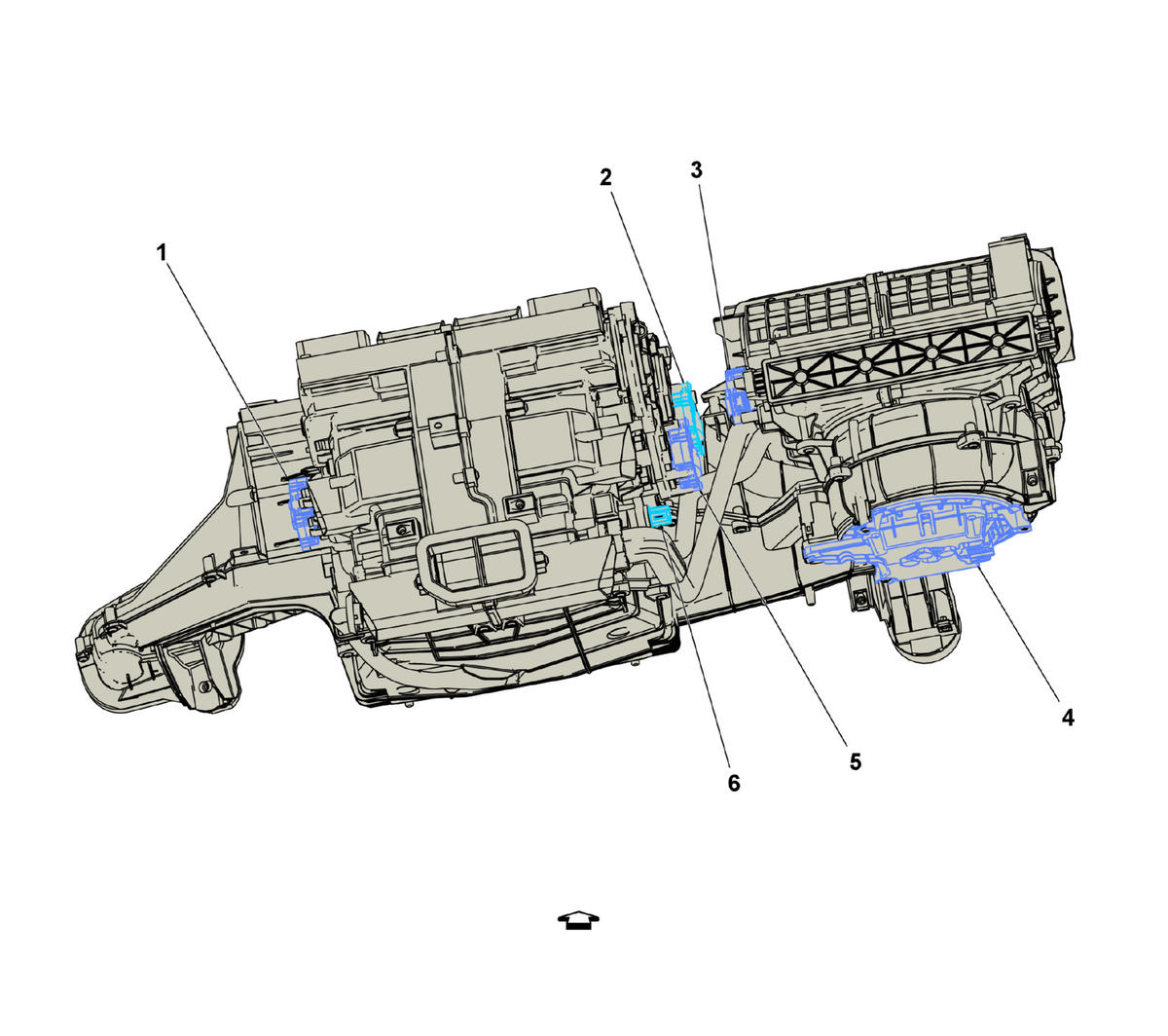

HVAC Assembly Components
HVAC Assembly Components
| Component Name | Callout |
|---|---|
| M6PL Programmable Temperature Valve Actuator - Left M6PL Programmable Temperature Valve Actuator - Left | 1 |
| M37P Programmable Mode Valve Actuator M37P Programmable Mode Valve Actuator | 2 |
| M4P Programmable Air Inlet Valve Actuator M4P Programmable Air Inlet Valve Actuator | 3 |
| M8 Blower Motor M8 Blower Motor | 4 |
| M6PR Programmable Temperature Valve Actuator - Right M6PR Programmable Temperature Valve Actuator - Right | 5 |
| B39 Air Conditioning Evaporator Air Temperature Sensor B39 Air Conditioning Evaporator Air Temperature Sensor | 6 |
